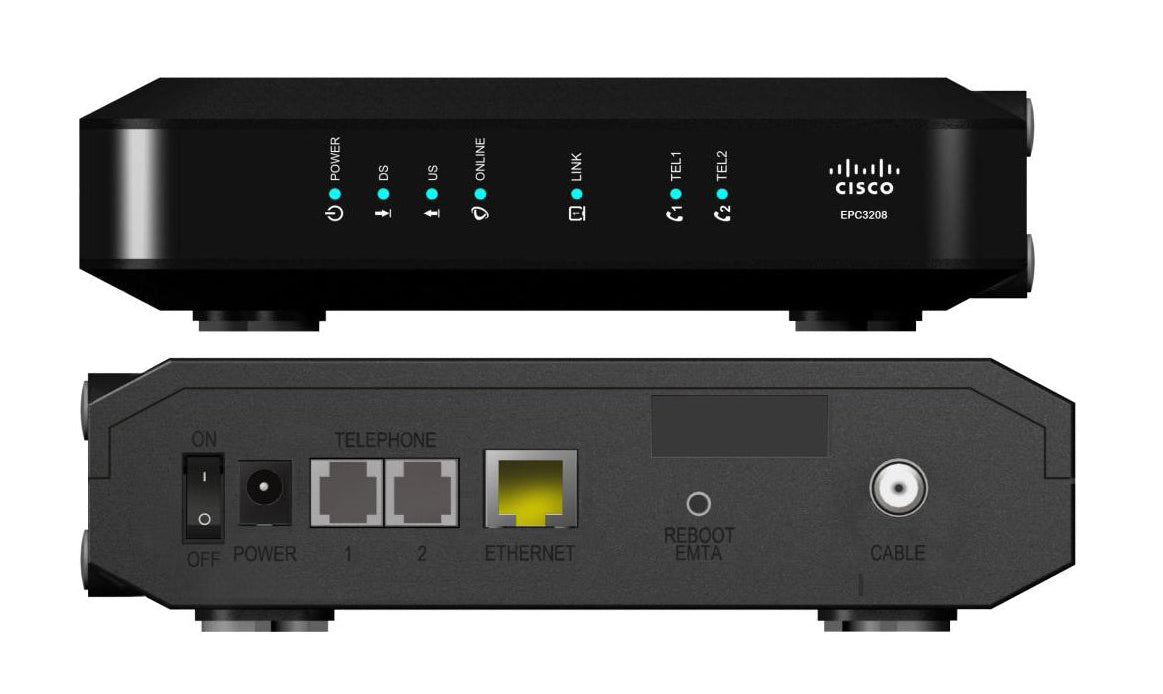

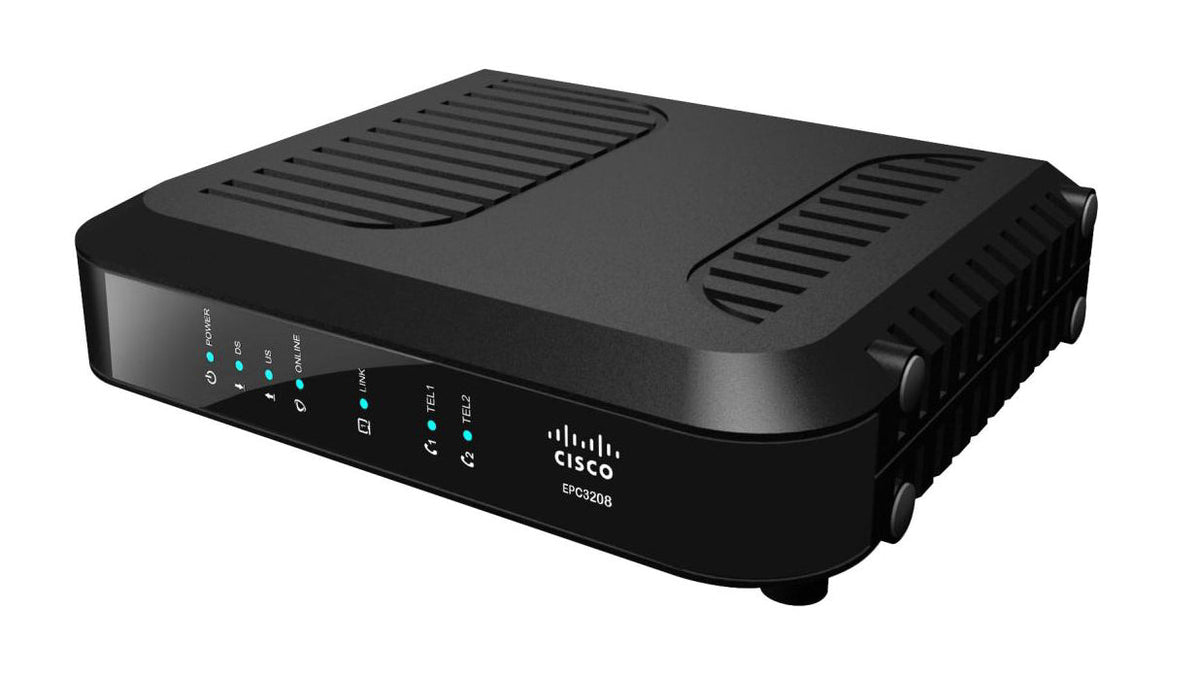

EPC3208 EuroDOCSIS 3 8x4 Cable Modem with Embedded Digital Voice Adapter

Cisco · EPC3208

Condition

Refurbished

Feature Highlights

DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access
8x4 Channel Bonding
1 x Gigabit Ethernet LAN
2 x FXS Phone

1-Year Warranty

30-Day Returns

Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203

The Cisco Model EPC3208 EuroDOCSIS 3.0 8x4 Cable Modem (EPC3208) is a highspeed cable modem with an embedded digital voice adapter. The EPC3208 provides a faster connection to the Internet by incorporating eight bonded downstream channels along with four bonded upstream channels. These bonded channels deliver downstream data rates in excess of 440 Mbps. That’s up to eight times faster than conventional single-channel EuroDOCSIS™ 2.0 cable modems.

Features
EuroDOCSIS	Eight (8) bonded downstream channels with data rates in excess of 440 Mbps Four (4) bonded upstream channels with data rates in excess of 120 Mbps Designed to meet EuroDOCSIS 3.0 specifications and backward compatible with EuroDOCSIS 2.0, 1.1, and 1.0 EuroDOCSIS compliant support for IPv6/IPv4 Expanded tuning range, 108–1002 MHz
Embedded Digital Voice Adapter	Two-line embedded digital voice adapter for wired telephony service Toll-quality, high-compression, and high-fidelity CODEC options
Connections	10/100/1000 Mbps Ethernet port with Auto-negotiate and Auto-MDIX Support for up to 64 users
Design and Function	Attractive compact design and versatile orientation: stand vertically, lie flat, or mount on a wall Dual-color LED status indicators show real-time operational status Easy-to-understand generic icons indicate LED purpose TR-068 compliant color-coded connectors and cables simplify installation Rugged electronic components for long-term reliability
Management	Software upgradeable by network download Remote manageability using SNMP V1/V2 and V3
Software and Documentation	CD-ROM containing user guides

RF Downstream
Operating Frequency Range	108 to 1002 MHz
Tuner Frequency Range	108 to 1002 MHz
Tuner	(1) Frequency agile block tuner, 96 MHz bandpass each
Demodulation	8 demodulators, 64 QAM or 256 QAM
Maximum Data Rate	8 downstream channels, each 6 MHz channel: 42.88 Mbps for 256 QAM and 30.34 Mbps for 64 QAM
Bandwidth	8 MHz and/or 6 MHz with Dual Mode capability
Operating Level Range	43 to 73 dBµV for 64 QAM 47 to 77 dBµV for 256 QAM
Input Impedance	75 ohms
RF Upstream
Operating Frequency Range	5 to 42 MHz, 5 to 65 MHz, or 5 to 85 MHz
Transmitter Frequency Range	5 to 42 MHz, 5 to 65 MHz, or 5 to 85 MHz
Upstream Transmission	4 upstream channels
Modulation	QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM at ATDMA mode QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM, 128 QAM at SCDMA mode
Electrical
Input Voltage	15 VDC
Power Consumption (Modem Module)	~ 5.8 Watts
Data Ports	Ethernet 10/100/1000BASE-T (Auto-sensing with Auto-MDIX) RJ-45 Ethernet (1)
RF	Female “F” type
Impedance	75 ohms
Mechanical
Dimensions (W × D × H)	Not including “F” connector: 6.99 in × 6.15 in × 1.93 in (17.75 cm × 15.623 cm × 4.9 cm)
Weight (Approximate)	0.34 kg (11.99 oz)
Operating Temperature	0° to 40°C (32° to 104°F)
Operating Humidity	0 to 90% RH non-condensing
Storage Temperature	−20° to 60°C (−4° to 140°F)
