EPC3208G EuroDOCSIS 3 8x4 Cable Modem with Embedded Digital Voice Adapter

Cisco · EPC3208G

Condition

Refurbished

Feature Highlights

DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access
8x4 Channel Bonding
1 x Gigabit Ethernet LAN
2 x FXS Phone

1-Year Warranty

30-Day Returns

Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203

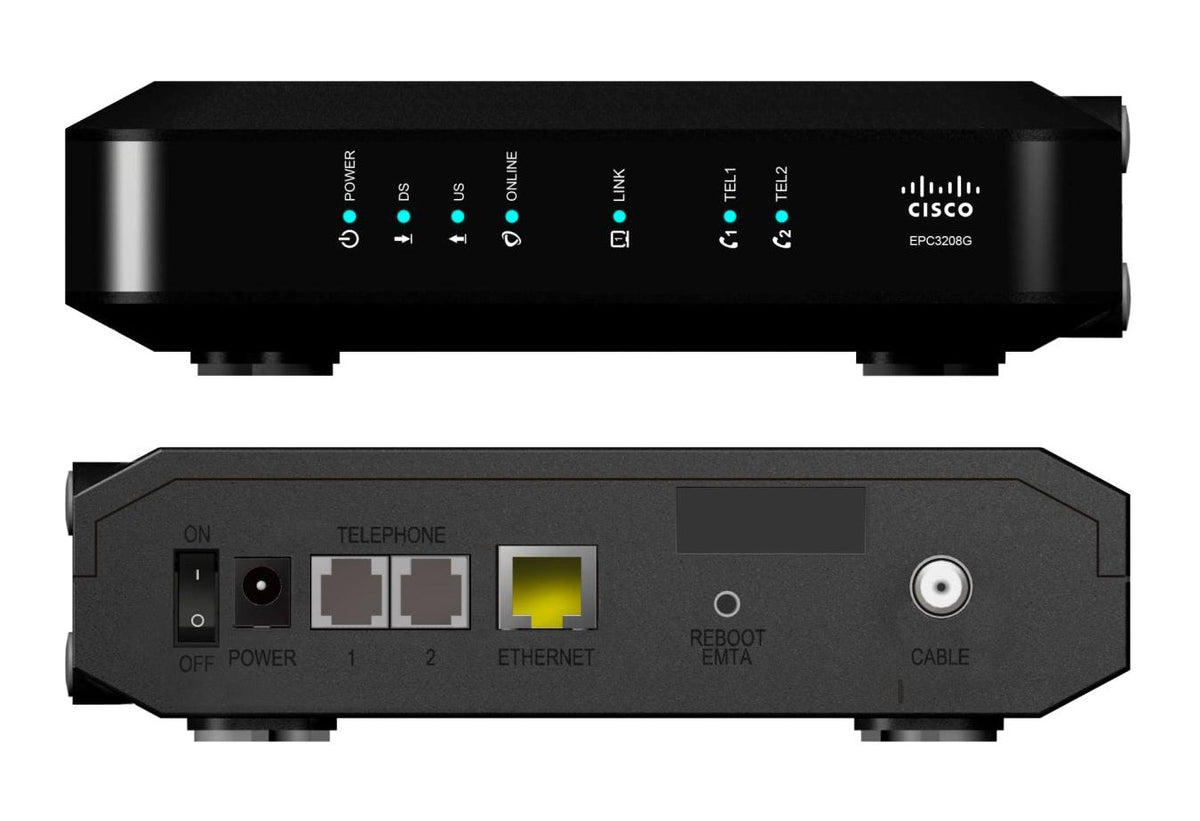

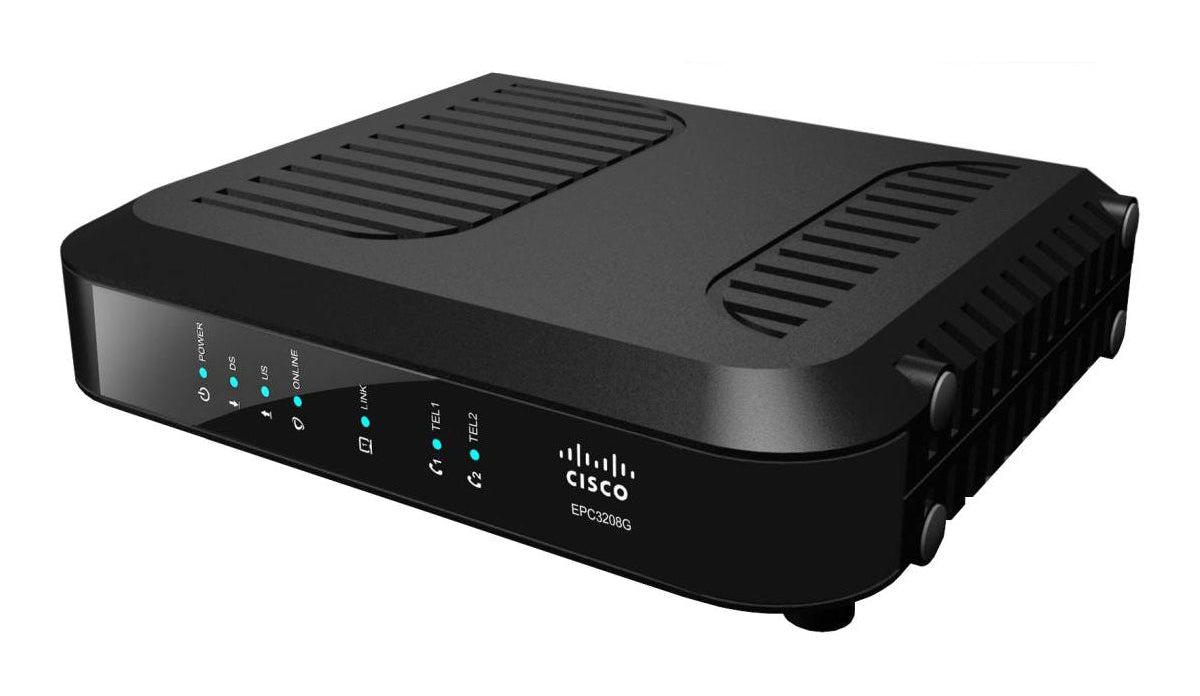

The Cisco Model EPC3208G EuroDOCSIS™ 3.0 8x4 Cable Modem (EPC 3208G) is a high-speed cable modem with an embedded digital voice adapter and router for use in the home and small office. The EPC3208G provides a faster connection to the Internet by incorporating eight bonded downstream channels along with four bonded upstream channels. These bonded channels can deliver downstream data rates in excess of 440 Mbps and upstream data rates in excess of 120 Mbps. That’s up to eight times faster downloads than conventional single-channel EuroDOCSIS 2.0 cable modems.

EuroDOCSIS
Features	Eight (8) bonded downstream channels with data rates in excess of 440 Mbps Four (4) bonded upstream channels with data rates in excess of 120 Mbps Designed to meet EuroDOCSIS 3.0 specifications as well as backward compatibility with existing EuroDOCSIS 2.0, 1.1 and 1.0 networks EuroDOCSIS compliant support for IPv6/IPv4 Expanded tuning range, 108–1002 MHz
Connections
Connectivity	One (1) 10/100/1000BASE-T Ethernet port to provide wired connectivity Two RJ-11 telephony ports for connecting to in-home wiring or directly to conventional telephones or fax machines
Design and Function
Design	Attractive, compact design and versatile orientation to stand vertically, lie flat on the desktop or shelf, or mount easily on a wall Dual color LED status indicators on the front panel provide easy-to-understand display that indicates the cable modem operational status TR-068 compliant color-coded interface ports and corresponding cables simplify installation and setup
Management
Management Features	Remote manageability using SNMP V1/V2 and V3 User-configurable Parental Control blocks access to undesirable Internet sites Advanced firewall technology deters hackers and protects the home network from unauthorized access Software allows automatic software upgrades by your service provider

RF Downstream
Operating Frequency Range	108 to 1002 MHz
Tuner Frequency Range	108 to 1002 MHz
Tuner	(1) Frequency agile block tuners, 96 MHz bandpass each
Demodulation	8 demodulators, 64 QAM or 256 QAM
Maximum Data Rate	8 downstream channels, each 8 MHz channel: • 55.62 Mbps for 256 QAM • 41.71 Mbps for 64 QAM
Bandwidth	8 or 6 MHz
Operating Level Range	+43 to +73 dBµV for 64 QAM +47 to +77 dBµV for 256 QAM
Input Impedance	75 ohms
RF Upstream
Operating Frequency Range	5 to 65 MHz
Transmitter Frequency Range	5 to 65 MHz
Upstream Transmission	4 upstream channels
Modulation	QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM / ATDMA mode QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM, 128 QAM / SCDMA mode
Electrical
Input Voltage	15 VDC
Power Consumption (modem module)	~5.8 Watts
Data Ports	One (1) Ethernet 10/100/1000 BASE-T RJ-45 port (Auto-sensing with Auto-MDIX)
RF	Female F-Type
Output Impedance	75 ohms
Mechanical
Dimensions (W × D × H)	Not including “F” connector: 6.99 in. × 6.15 in. × 1.93 in. (17.75 cm × 15.623 cm × 4.9 cm)
Weight (Approximate)	0.34 kg (11.99 oz)
Operating Temperature	0° to 40°C (32° to 104°F)
Operating Humidity	0 to 95% RH non-condensing
Storage Temperature	−20° to 60°C (−4° to 140°F)
