EPC3212 EuroDOCSIS 3 8x4 Cable Modem with Embedded Digital Voice Adapter

Cisco · EPC3212
Condition

Feature Highlights

DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access
8x4 Channel Bonding
1 x Gigabit Ethernet LAN
2 x FXS Phone
1-Year Warranty
30-Day Returns
Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203
Description
Technical Specifications

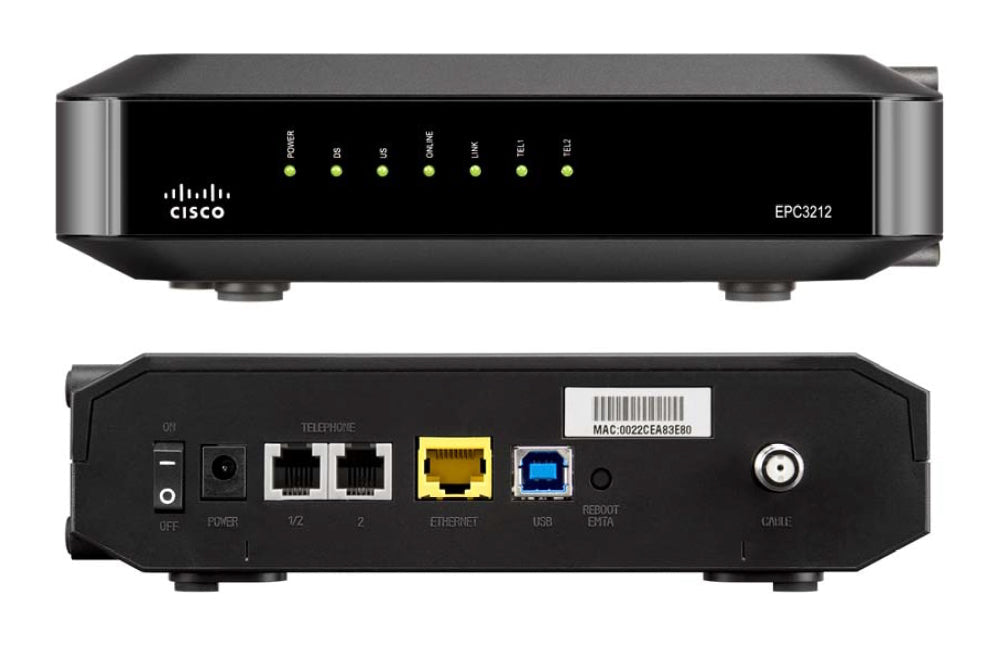

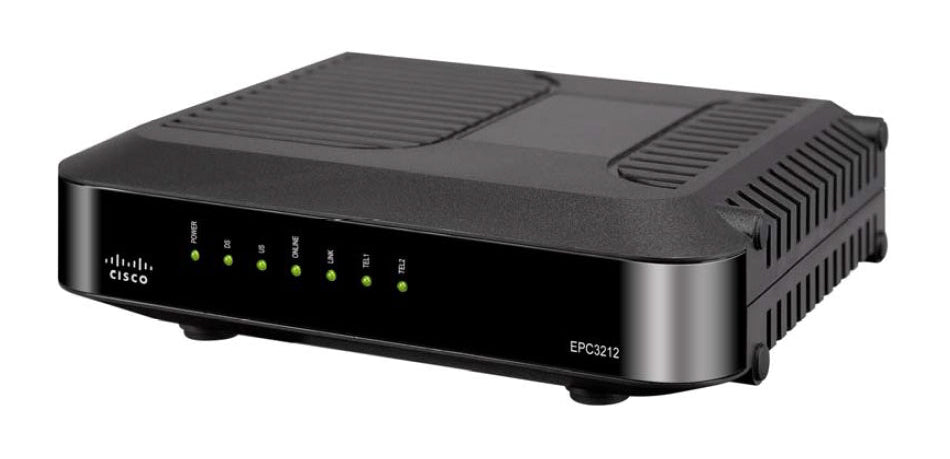

The Cisco Model EPC3212 EuroDOCSIS 3.0 8x4 Cable Modem with Embedded Digital Voice Adapter (EPC3212) is a high-speed cable modem with an embedded digital voice adapter. The EPC3212 provides a faster connection to the Internet by incorporating eight bonded downstream channels along with four bonded upstream channels. These bonded channels deliver downstream data rates in excess of 440 Mbps. That’s up to eight times faster than conventional single-channel EuroDOCSIS™ 2.0 cable modems.1

The EPC3212 uses advanced line-interface technology to provide multi-country, toll-quality, telephone service using existing in-home wiring. The EPC3212 features two RJ-11 telephone ports for voice and supports 5 REN phone loading on each phone line.

The EPC3212 is designed to meet EuroPacketCable™ 1.5 and EuroDOCSIS 3.0 specifications as well as being backward compatible with EuroDOCSIS 2.0, 1.1, and 1.0 networks. The EPC3212 fully supports the CODECs specified in EuroPacketCable 1.5. Additional CODECs are available through a software upgrade that includes a high-fidelity CODEC option for toll-quality plus service. Standard VoIP call signaling is compliant with EuroPacketCable (MGCP/NCS) specifications. Software upgrades are available to support Session Initiation Protocol (SIP) call signaling.

EuroDOCSIS
EuroDOCSIS Features
  • Eight (8) bonded downstream channels with data rates in excess of 440 Mbps
  • Four (4) bonded upstream channels with data rates in excess of 120 Mbps
  • Designed to meet EuroDOCSIS 3.0 specifications with backward compatibility with EuroDOCSIS 2.0, 1.1 and 1.0 networks
  • Enhanced packet processing technology to maximize performance
  • Dual-color LEDs indicate operational status
  • Color-coded connectors and cables for easy installation and setup
Embedded Digital Voice Adapter
Voice Adapter Features
  • Two-line embedded digital voice adapter for wired telephony service
  • Expanded tuning range, 108–1002 MHz
  • Toll-quality, high-compression, and high-fidelity (exceeding toll quality) CODEC options
Connections
Network Interfaces
  • Bridged 10/100/1000 Mbps Ethernet port with Auto-negotiate and Auto-MDIX and USB 2.0 data port
  • Support for up to 64 users (1 USB port user and up to 63 users on user-supplied Ethernet hubs)
Design and Function
Design & Operational Features
  • Attractive, compact design with versatile orientation (vertical, horizontal, desktop, or wall mount)
  • LED status indicators provide informative and easy-to-understand display of cable modem operational status and real-time data transmission activity
  • Rugged electronic components for long-term reliability
Management
Management Features
  • Software upgradeable by network download
  • Remote manageability using SNMP V1/V2 and V3
RF Downstream
Frequency Range 108 to 1002 MHz
Tuner (2) Frequency agile block tuners, 32 MHz bandpass each
Demodulation 8 demodulators, 4 per tuner, each demodulator; 64 QAM or 256 QAM
Maximum Data Rate 8 downstream channels, each 8 MHz channel:
● 55.62 Mbps for 256 QAM and 41.71 Mbps for 64 QAM
Bandwidth 8 or 6 MHz
Operating Level Range 43 to 73 dBµV for 64 QAM
47 to 77 dBµV for 256 QAM
RF Upstream
Frequency Range 5 to 65 MHz
Modulation QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM / ATDMA, 128 QAM / SCDMA
Bandwidth 200 kHz to 6.4 MHz
Other
Input Voltage 15 VDC / 1 A
Power Consumption (Modem Module) ~9.6 Watts
Data Ports Ethernet 10/100/1000BASE-T (Auto-sensing with Auto-MDIX); RJ-45 Ethernet (1)
USB 2.0: USB Type B (1)
RF Female "F" type
Impedance 75 ohms
Mechanical
Dimensions (W × D × H) Not including "F" connector:
17.6 cm × 14.5 cm × 5.0 cm (6.9 in. × 5.7 in. × 1.96 in.)
Weight (Approximate) ~0.39 kg (13.7 oz)
Operating Temperature 0° to 40°C (32° to 104°F)
Operating Humidity 0 to 90% RH non-condensing
Storage Temperature −20° to 60°C (−4° to 140°F)
