EPC3825 8x4 DOCSIS 3 Wireless Residential Gateway
Feature Highlights
DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access8x4 Channel Bonding
Single-Band WiFi 4 (N)
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.

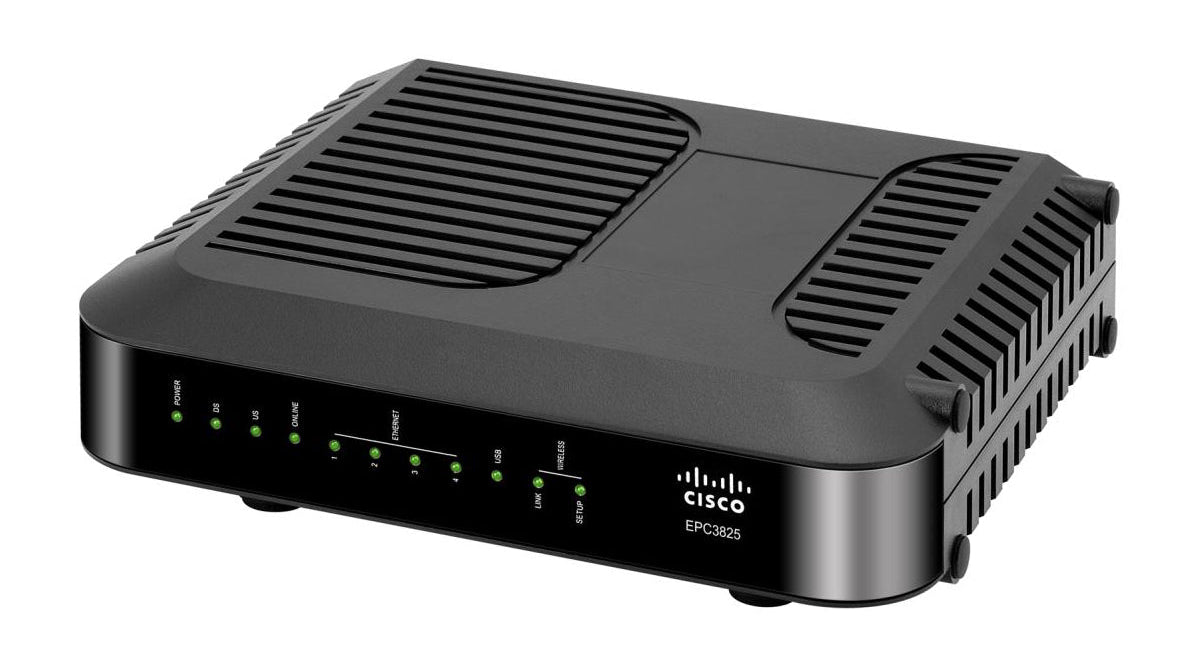

The Cisco® Model EPC3825 8x4 EuroDOCSIS 3.0 Wireless Residential Gateway (EPC3825) is a high-performance home gateway that combines a cable modem, router and wireless access point in a single device providing a cost-effective networking solution for both the home and small office. The EPC3825 provides a faster connection to the Internet by incorporating eight bonded downstream channels along with four bonded upstream channels. These bonded channels can deliver downstream data rates in excess of 440 Mbps and upstream data rates in excess of 120 Mbps. That’s up to eight times faster downloads than conventional single channel EuroDOCSIS™ 2.0 cable modems
Designed for the active digital home or office, the EPC3825 integrated router features a Dynamic Host Configuration Protocol (DHCP) server, Network Address and Port Translation (NAT/NAPT) and a Stateful Packet Inspection (SPI) firewall. These features allow the user to share a single high-speed public Internet connection as well as share files and folders between devices within the home network by attaching multiple wired and wireless devices in your home or office to the wireless residential gateway.
Consumer-friendly features like Wireless Protected Setup (WPS) and user-configured Parental Control can protect the home network from unwelcome intruders and family members from access to undesirable websites.
| EuroDOCSIS | |
|---|---|
| EuroDOCSIS Features |
|
| Connections | |
| Network Connectivity |
|
| Design and Function | |
| Design Features |
|
| Management | |
| Management Features |
|
| Security | |
| Security Features |
|
| Wireless Access Point | |
|---|---|
| Frequency Range | 2x2 2.4 GHz or 2x2 2.4/5 GHz Dual Band non-concurrent (factory option) |
| Modulation | PSK/CCK, DQPSK, DBPSK, OFDM |
| Data Rate |
54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, 1 20 MHz Bandwidth: 150, 130, 117, 104, 72.2, 78 * 40 MHz Bandwidth: 300, 270, 243, 216, 162, 108 * * Many other data rates are supported by the product. The information above specifies only the higher rates for each bandwidth. |
| Transmit Power | 2.4 GHz: 16 dBm, 5 GHz: 14 dBm with internal power amplifiers |
| 802.11n |
|
| RF Downstream | |
| Operating Frequency Range | 108 to 1002 MHz |
| Tuner Frequency Range | 108 to 1002 MHz |
| Tuner | (2) Frequency agile block tuners, 32 MHz bandpass each |
| Demodulation | 8 demodulators, 4 per tuner, each demodulator; 64 QAM or 256 QAM |
| Maximum Data Rate |
8 downstream channels, each 8 MHz channel: ● 55.62 Mbps for 256 QAM ● 41.71 Mbps for 64 QAM |
| Bandwidth | 8 or 6 MHz |
| Operating Level Range |
+43 to +73 dBµV for 64 QAM +47 to +77 dBµV for 256 QAM |
| Input Impedance | 75 ohms |
| RF Upstream | |
| Operating Frequency Range | 5 to 65 MHz |
| Transmitter Frequency Range | 5 to 65 MHz |
| Upstream Transmission | 4 upstream channels |
| Modulation | QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM / ATDMA, 128 QAM / SCDMA |
| Electrical | |
| Input Voltage | 15 VDC |
| Power Consumption (modem module) | ~11 Watts Online |

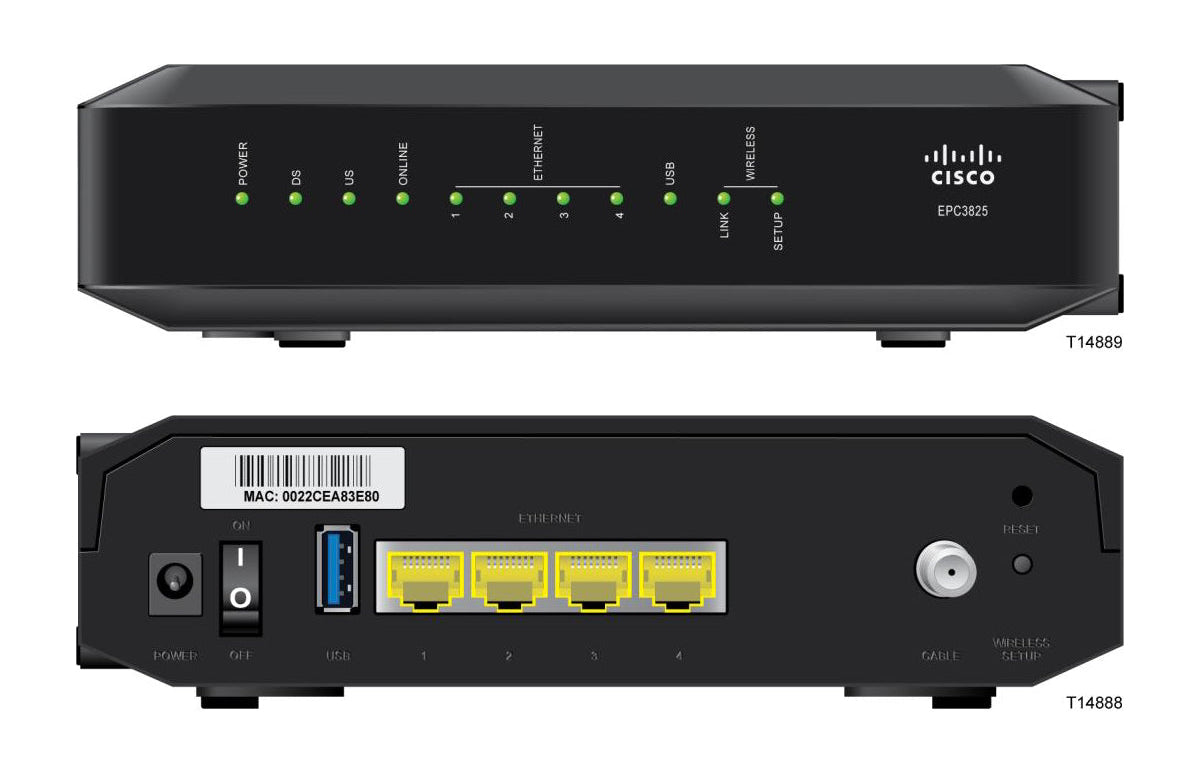

| Data Ports |
1000/100/10BASE-T (Auto-negotiation with Auto-MDIX); RJ-45 Ethernet (4) USB 2.0: USB Type 1 (1) |
| RF | Female F-Type |
| Output Impedance | 75 ohms |
| Mechanical | |
| Dimensions (W × D × H) |
F-Type connector included: 14.5 cm × 18.6 cm × 5 cm (5.6 in × 7.3 in × 1.9 in) F-Type connector not included: 14.5 cm × 17.6 cm × 5 cm (5.6 in × 6.9 in × 1.9 in) |
| Weight (approximate) | 0.390 kg (13.7 oz) |
| Operating Temperature | -0° to 40°C (32° to 104°F) |
| Operating Humidity | 0 to 95% RH non-condensing |
| Storage Temperature | -20° to 70°C (-4° to 158°F) |
