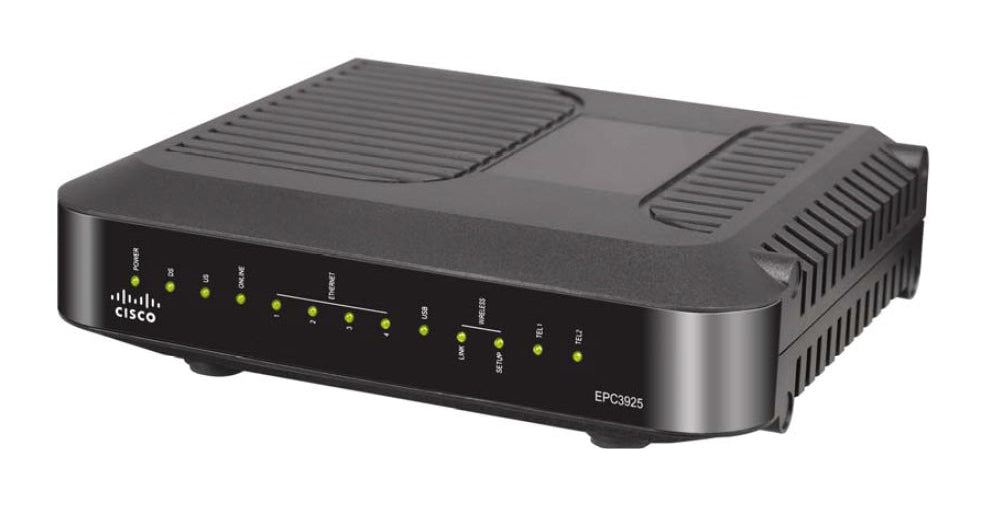

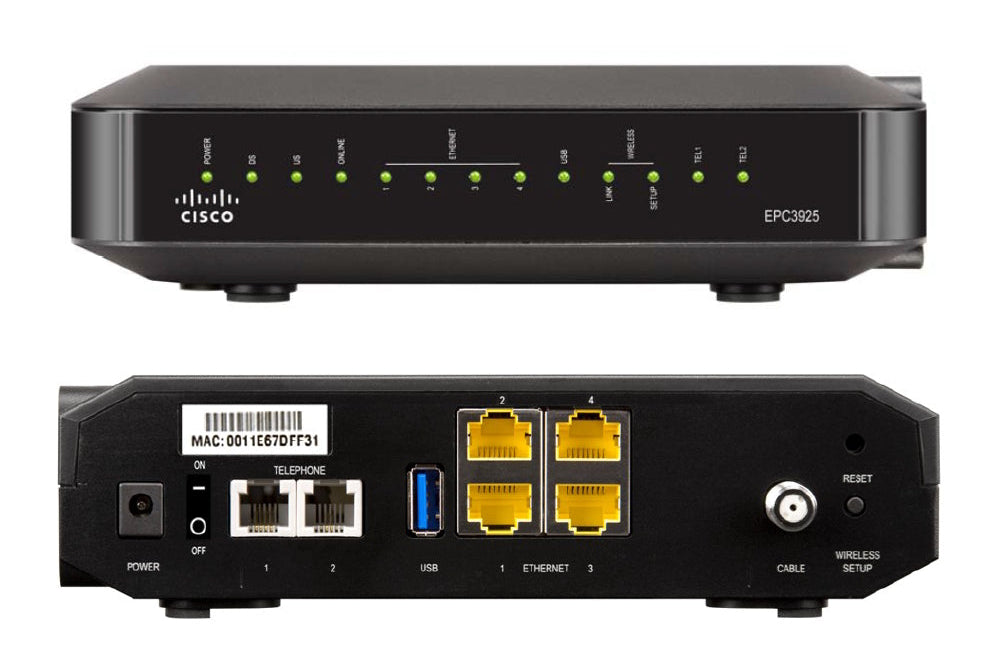

EPC3925 8x4 DOCSIS 3 Wireless Residential Gateway with Embedded Digital Voice Adapter
Feature Highlights
DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access8x4 Channel Bonding
Single-Band WiFi 4 (N)
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
The Cisco Model EPC3925 8x4 EuroDOCSIS 3.0 Wireless Residential Gateway with Embedded Digital Voice Adapter (EPC3925) is a high-performance home gateway that combines a cable modem, two-line digital voice adapter, router and wireless access point in a single device providing a cost-effective voice and networking solution for both the home and small office. The EPC3925 provides a faster connection to the Internet by incorporating eight bonded downstream channels along with four bonded upstream channels. These bonded channels can deliver downstream data rates in excess of 440 Mbps and upstream data rates in excess of 120 Mbps. That’s up to eight times faster downloads than conventional single-channel EuroDOCSIS 2.0 cable modems.
The EPC3925 integrated router features a Dynamic Host Configuration Protocol (DHCP) server, Network Address and Port Translation (NAT/NAPT) and a Stateful Packet Inspection (SPI) firewall. These features allow the user to share a single high-speed public Internet connection as well as share files and folders between devices in the home network by attaching multiple wired and wireless devices in the active home or office to the wireless residential gateway.
Consumer-friendly features like Wireless Protected Setup (WPS) and user-configured Parental Control can protect the home network from unwelcome intruders and family members from access to undesirable websites.
| EuroDOCSIS | |
|---|---|
| EuroDOCSIS Features |
|
| Connections | |
| Network Interfaces |
|
| Design and Function | |
| Design Features |
|
| Management | |
| Management Features |
|
| RF Downstream | |
|---|---|
| Operating Frequency Range | 108 to 1002 MHz |
| Tuner Frequency Range | 108 to 1002 MHz |
| Tuner | (2) Frequency agile block tuners, 32 MHz bandpass each |
| Demodulation | 8 demodulators, 4 per tuner; each demodulator supports 64 QAM or 256 QAM |
| Maximum Data Rate |
8 downstream channels, each 8 MHz channel: • 55.62 Mbps for 256 QAM • 41.71 Mbps for 64 QAM |
| Bandwidth | 8 or 6 MHz |
| Operating Level Range |
+43 to +73 dBµV for 64 QAM +47 to +77 dBµV for 256 QAM |
| Input Impedance | 75 ohms |
| RF Upstream | |
| Operating Frequency Range | 5 to 65 MHz |
| Modulation | QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM / ATDMA, 128 QAM / SCDMA |
| Bandwidth | 200 kHz to 6.4 MHz |
| Electrical | |
| Input Voltage | 15 VDC / 1 A |
| Power Consumption (Modem Module) | ~9.6 Watts |
| Data Ports |
Ethernet 10/100/1000BASE-T (Auto-sensing with Auto-MDIX); RJ-45 Ethernet (1) USB 2.0: USB Type B (1) |
| RF | Female “F” type |
| Impedance | 75 ohms |
| Mechanical | |
| Dimensions (W × D × H) | 17.6 cm × 14.5 cm × 5.0 cm (6.9 in × 5.7 in × 1.96 in) |
| Weight (Approximate) | ~0.39 kg (13.7 oz) |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Operating Humidity | 0 to 90% RH non-condensing |
| Storage Temperature | –20° to 60°C (–4° to 140°F) |
EPC3925
