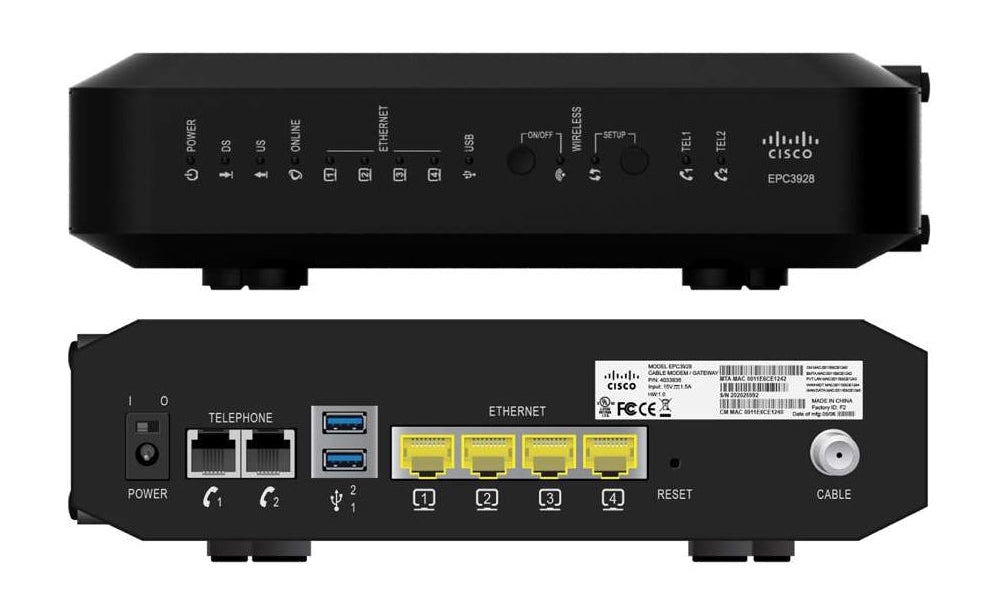

EPC3928AD DOCSIS/EuroDOCSIS 3.0 8x4 Wireless Residential Gateway with Embedded Digital Voice Adapter

Cisco · EPC3928AD

Condition

Refurbished

Feature Highlights

DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access
8x4 Channel Bonding
Dual-Band WiFi 4 (N)
450 Mbps on 5Ghz 3x3 MIMO
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone

1-Year Warranty

30-Day Returns

Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203

The Cisco Residential Wireless Gateway with Digital Voice Model EPC3928 is a high-performance home gateway that combines a cable modem, two-line digital voice adapter, router, and 802.11n wireless access point(s) in a single device, providing a cost-effective voice and networking solution for both the home and small office. The Cisco EPC3928 provides a faster connection to the Internet by incorporating eight bonded downstream channels and four bonded upstream channels. These bonded channels can deliver downstream data rates in excess of 440 Mbps and upstream data rates in excess of 120 Mbps. That’s up to eight times faster downloads than conventional single-channel EuroDOCSIS™ 2.0 cable modems.

The Cisco EPC3928 integrated router features a Dynamic Host Configuration Protocol (DHCP) server, Network Address Translation (NAT) and Network Address and Port Translation (NAPT), and a Stateful Packet Inspection (SPI) firewall. These features allow the user to share a single high-speed public Internet connection as well as share files and folders between devices in the home network by attaching multiple wired and wireless devices in the active home or office to the wireless residential gateway.

Consumer-friendly features like Wireless Protected Setup (WPS) and user-configured Parental Control can protect the home network from unwelcome intruders and family members from access to undesirable websites.

DOCSIS
DOCSIS Features	Compliant with EuroDOCSIS 3.0, 2.0, 1.1, and 1.0 standards and EuroPacketCable specifications to deliver high-end performance and reliability
Connections
Network Connectivity	Four 10/100/1000BASE-T Ethernet ports to provide wired connectivity High-performance broadband Internet connectivity to energize your online experience Optional: two USB 2.0 Type 2 connections Dual-band concurrent 802.11n Wireless Access Point (WAP) with eight Service Set Identifiers (SSIDs) compatible with 802.11b/g WPS, including a pushbutton switch to activate WPS for simplified and secure wireless setup Two-line or single-line RJ-11 telephony ports for connecting to in-home wiring or directly to conventional telephones or fax machines
Design and Function
Design Features	Attractive, compact design and versatile orientation to stand vertically, lie flat on the desktop or shelf, or mount easily on a wall Dual-color LED status indicators on the front panel provide an informative and easy-to-understand display that indicates the cable modem operational status TR-068 compliant color-coded interface ports and corresponding cables simplify installation and setup
Management
Management Features	User-configurable Parental Control blocks access to undesirable Internet sites Advanced firewall technology deters hackers and protects the home network from unauthorized access Residential gateway allows automatic software upgrades by your service provider

Wireless Access Point
802.11 b/g/n	Available hardware options for wireless access point: 2×2 MIMO, 2.4 GHz single band 2×2 MIMO, 2.4 GHz and 5 GHz dual band concurrent 3×3 MIMO, 2.4 GHz and 5 GHz dual band concurrent 2, 4, or 6 internal antennas (antenna configuration depends on hardware options) DFS certified operation for 5 GHz models for optimal spectrum use and reduced interference Wi-Fi compliant security (WPA2-Enterprise, WPA2-PSK, WPA, WPA-PSK, WEP) WMM-QoS (Wireless Multi Media – Quality of Service) WMM Power Save WPS Wireless Bridging – WDS (Wireless Distribution System) for “Range Extender Products” RADIUS Authentication (Client, EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5) MBSSID (8 SSIDs with unique NAT scopes) Wi-Fi “Hot Spot” support (Static DHCP IP Scope over tunnel)
RF Downstream
Operating Frequency Range	108 to 1002 MHz
Tuner Frequency Range	108 to 1002 MHz
Tuner	1 frequency agile block tuner, full-band capture
Demodulation	8 demodulators, each demodulator: 64 QAM or 256 QAM
Maximum Data Rate	8 downstream channels, each 6 MHz channel: • 55.62 Mbps for 256 QAM • 41.71 Mbps for 64 QAM
Bandwidth	6 or 8 MHz
Operating Level Range	+43 to +73 dBµV for 64 QAM +47 to +77 dBµV for 256 QAM
Input Impedance	75 ohms
RF Upstream
Operating Frequency Range	5 to 65 MHz (optional: 5 to 85 MHz)
Upstream Transmission	4 upstream channels
Modulation	QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM (ATDMA), 128 QAM (S-CDMA)
Electrical
Input Voltage	15 VDC
Power Consumption	Models without application support: 15 W nominal Models with application support: 20 W nominal
Data Ports	Gigabit Ethernet (Auto-negotiate with Auto-MDIX): RJ-45 Ethernet (4) Optional (depending on part number): USB 2.0, USB Type 2 (2)
RF	Female F-type
Output Impedance	75 ohms
Mechanical
Dimensions (H × D × W)	5.4 cm × 14.5 cm × 19.6 cm (2.13 in × 5.71 in × 7.72 in)
Weight	0.430 kg (15.17 oz)
Operating Temperature	0° to 40 °C (32° to 104 °F)
Operating Humidity	0 to 95% RH non-condensing
Storage Temperature	−20° to 70 °C (−4° to 158 °F)
