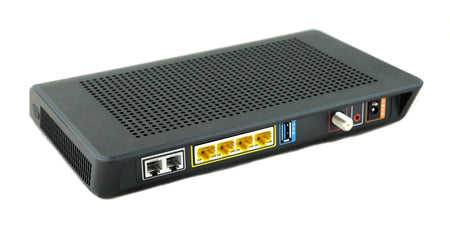

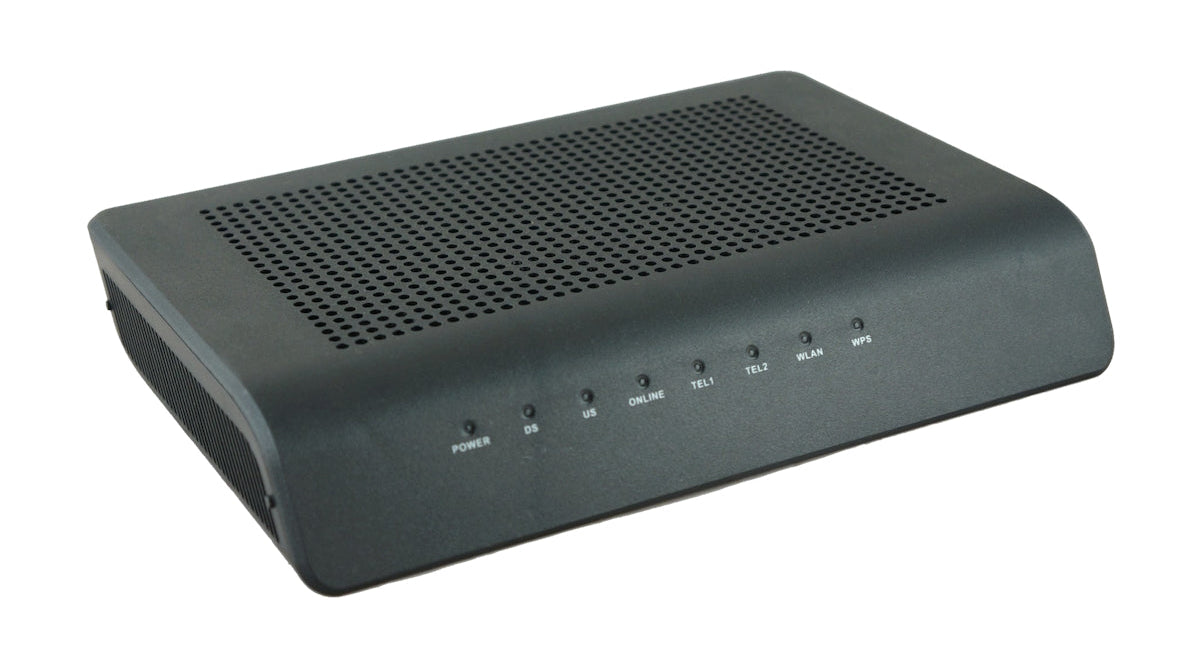

EVW3226 DOCSIS / EuroDOCSIS 3.0 VoIP Wireless Gateway

Ubee · EVW3226EU
Condition

Feature Highlights

DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access
8x4 Channel Bonding
Single-Band WiFi 4 (N)
300 Mbps on 5Ghz 2x2 MIMO
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone
1-Year Warranty
30-Day Returns
Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203
Technical Specifications
Interfaces and Standards
Interfaces and Standards
  • Cable: F-Connector, female
  • 4 RJ45 ports supporting 10/100/1000 Mbps
  • USB: 1 USB 2.0 host port
  • Telephony: 2 RJ11 ports, PacketCable 1.5 Certified
  • EuroDOCSIS 3.0 certified
  • DOCSIS 3.0 compliant
  • DOCSIS/EuroDOCSIS 1.0/1.1/2.0 compliant
  • CE certified, WiFi Alliance certified
Downstream
Downstream Specifications
  • Frequency Range: 108 MHz ~ 1002 MHz
  • Modulation: 64 / 256 QAM
  • Channel Bandwidth: 8 MHz or 6 MHz
  • Maximum Data Rate per Channel (up to 8 channels):
    • DOCSIS: 30 Mbps (64 QAM), 42 Mbps (256 QAM)
    • EuroDOCSIS: 41 Mbps (64 QAM), 55 Mbps (256 QAM)
  • Total Max Bandwidth (8 Channels):
    • DOCSIS = 342 (304) Mbps
    • EuroDOCSIS = 444 (400) Mbps
  • Symbol Rate:
    • DOCSIS: 5.056941 Msym/s (64-QAM) and 5.360537 Msym/s (256-QAM)
    • EuroDOCSIS: 6.952 Msym/s (64-QAM and 256-QAM)
  • RF Input Power: -15 to +15 dBmV (64 QAM), -15 to +15 dBmV (256 QAM)
  • Input Impedance: 75 Ω
Upstream
Upstream Specifications
  • Frequency Range: 5 MHz ~ 85 MHz
  • Modulation:
    • A-TDMA: QPSK, 8, 16, 32, 64 QAM
    • S-CDMA: QPSK, 8, 16, 32, 64, 128 QAM
  • Max Bandwidth of 4 Channels = 122.88 (108) Mbps
    Bandwidth per channel:
    • QPSK 0.32 → 10.24 Mbps
    • 8 QAM 0.48 → 15.36 Mbps
    • 16 QAM 0.64 → 20.48 Mbps
    • 32 QAM 0.80 → 25.60 Mbps
    • 64 QAM 0.96 → 30.72 Mbps
    • 128 QAM/TCM → 30.72 Mbps
  • Symbol Rate: 160, 320, 640, 1280, 2560, 5120 Ksps
  • RF Output Power:
    • TDMA/ATDMA: +8 dBmV to +54 dBmV (32/64 QAM)
    • ATDMA Only: +8 dBmV to +55 dBmV (8/16 QAM)
    • ATDMA: +8 dBmV to +58 dBmV (QPSK)
    • S-CDMA: +8 dBmV to +53 dBmV (all modulations)
  • Actual speeds vary based on network configuration.
Security and Network
Security and Network Features
  • Supports multiple SSIDs, 802.11 a/b/g/n certified with link speeds up to 300 Mbps
  • 2 Tx and 2 Rx antennas
  • DHCP Client/Server, Ethernet 10/100/1000 BaseT, full-duplex auto-negotiate functionality
  • IPv4 and IPv6 support
  • NAT Firewall, MAC/IP/Port Filtering, Parental Control, Stateful Packet Inspection (SPI)
  • DoS Attack Protection
  • WPS / WPA / WPA2 / WPA-PSK & 64/128-bit WEP Encryption
  • VPN Pass-Through
Voice
Voice Features
  • SIP (RFC3261)
  • Ring Voltage: 270 VAC, pk-pk (tip-ring)
  • Line Voltage Onhook: -48 Volts
  • Loop Current: 20mA / 41mA
  • Ring Capability: 2K ft., 5REN
  • Hook State: Signaling Loop Start
  • DTMF Tone Detection, T.38 FAX relay (G.711), Echo Cancellation (G.168) / Silence Suppression, Voice Active Detection, Comfort Noise Generation
Gateway Management
Management Features
  • Supports IEEE 802.11e Wi-Fi Multimedia (WMM) Power Save
  • DOCSIS/EuroDOCSIS, Web-Based UI
  • Firmware upgrade via TFTP
  • Configuration backup and restore
  • SNMP support
Physical and Environmental
Physical Specs
  • Dimensions: 240mm (W) × 172mm (D) × 42mm (H)
  • Weight: 548 g
Environmental
  • Power Supply Unit: Input AC 207–240V 50–60Hz; Output DC 12V 2A
  • Operating Temperature: 0°C to 40°C
  • Humidity: 5–95% (non-condensing)
