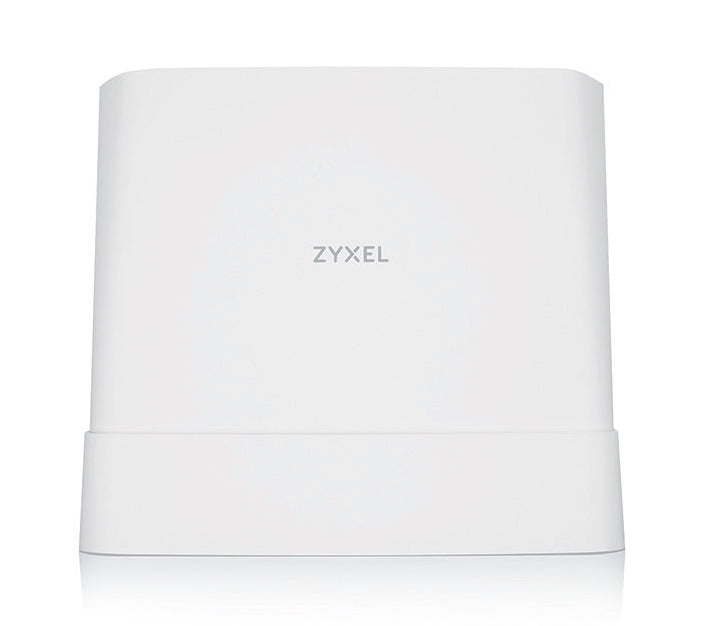

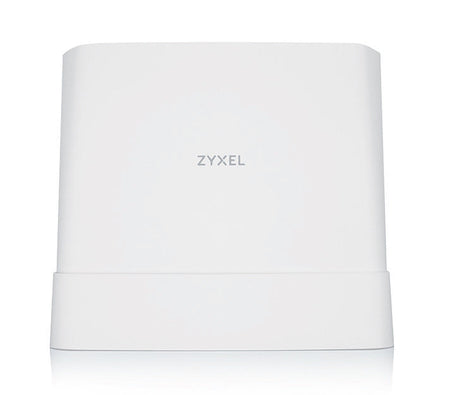

EX5501-B0 Dual-Band Wireless AX6000 Gigabit Ethernet VoIP IAD

Zyxel · EX5501-B0

Condition

Refurbished

Feature Highlights

2.5Gb Ethernet WAN Access
Dual-Band WiFi 6 (AX)
4.800 Mbps on 5Ghz 4x4 MU-MIMO
1.148 Mbps on 2.4Ghz 4x4 MIMO
1 x 2.5Gigabit Ethernet LAN
4 x Gigabit Ethernet LAN
2 x FXS Phone

1-Year Warranty

30-Day Returns

Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203

The Zyxel EX5501-B0 supports dual-band wireless AX with 2.5 Giga Ethernet Internet access to give you delightful wireless experiences in your ultra-connected home. Based on the 11AX (WiFi 6) technology, the Zyxel EX5501-B0 delivers speeds of up to 4.8 Gbps* on the 5 GHz band and 1.1 Gbps on 2.4 GHz with an average throughput faster than 11ac. Besides, AX WiFi also optimizes bandwidth utilization to increase network capacity and the number of simultaneous streams, which allow more users to enjoy connection with extremely low latency

System Specifications
Wireless Standards	• IEEE 802.11 b/g/n/ac/ax 2.4 GHz • IEEE 802.11 a/n/ac/ax 5 GHz
Wireless Transfer Rates	• 802.11ax (2.4 GHz): up to 1150 Mbps • 802.11ax (5 GHz): up to 4800 Mbps
Wireless Security	• WPA2 • WPA2-PSK
WLAN Features	• Auto channel selection • WiFi Multimedia (WMM) • Wireless scheduling • Wireless output power management • Multiple SSID up to 4 • WiFi Protected Setup (WPS) • Intra-BSS traffic block • MAC address filtering • WPS 2.0
Firewall	• IPv4/IPv6 firewall (Stateful Packet Inspection) • Denial-of-Service (DoS) attack prevention • ICMP blocking
Routing	• IPv4/IPv6 • NAT • Port forwarding • WAN connection type: DHCP, PPPoE • DHCP option 60/121/125 • DHCP server on LAN • IGMP v1/v2 • IGMP Proxy • Dynamic DNS
VPN Pass-through	• PPTP • L2TP • IPSec
VLAN	• 802.1q tag/tag based VLAN • VLAN to ETH port mapping • Bridged/routed VLAN support
Management	• Web GUI (HTTP/HTTPS) • TR-069 / TR-098 / TR-181 • SNMP v1/v2c & MIB II • Firmware upgrade through GUI / TR-069 • 2-tier level access and administration
Other	• Content filter • Parental control • USB file sharing

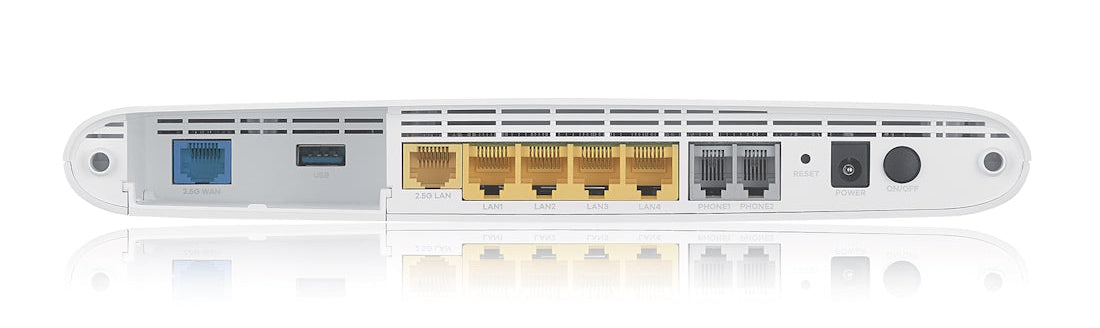

Hardware Specifications
WAN	• One 1000 Mbps/2.5 GbE RJ-45 port
LAN	• Four 10/100/1000 Mbps GbE RJ-45 ports • One 10/100/1000 Mbps/2.5 GbE RJ-45 port
VoIP	• Two FXS ports
USB	• One USB 3.0 host
LED indicators	• Power • Ethernet WAN • Internet • 2.5G LAN • LAN1 • LAN2 • LAN3 • LAN4 • WLAN/WPS • Phone • USB
Button	• Power on/off • Wireless on/off • WPS • Reset
Power consumption	• 12 V DC, 3.5 A • 42 W max
Physical & Environmental Specifications
Item dimensions (W × D × H)	250 × 187 × 32 mm (9.84" × 7.36" × 1.26")
Item weight	473 g (1.043 lb.)
Packing dimensions (W × D × H)	273 × 207 × 92 mm (10.75" × 8.15" × 3.62")
Packing weight	1084 g (2.390 lb.)
Operating temperature	0°C to 40°C (32°F to 104°F)
Operating humidity	10% to 90% (Non-condensing)
Storage temperature	-30°C to 70°C (-22°F to 158°F)
Storage humidity	10% to 95% (Non-condensing)
