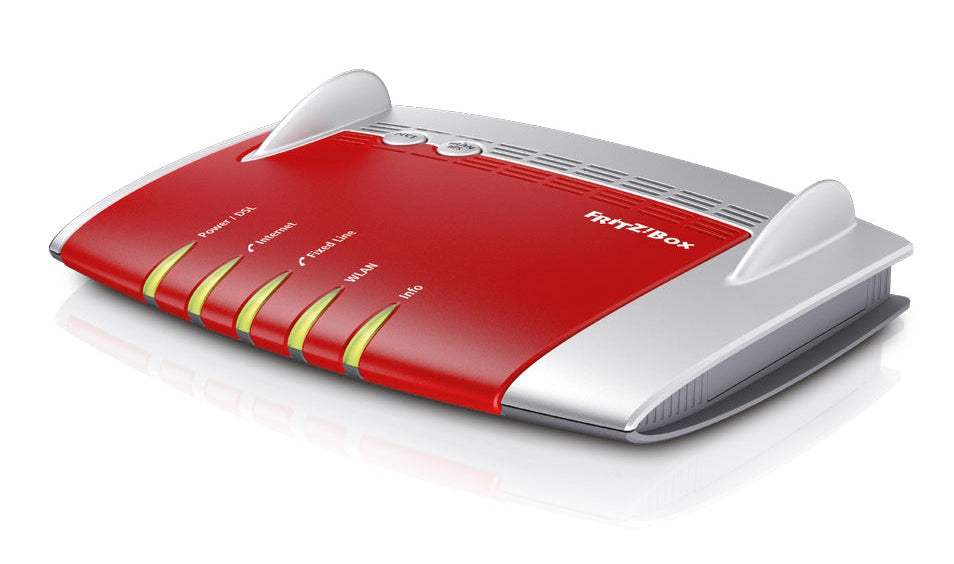

FRITZ!Box 7490 VDSL/ADSL2+ Wireless Voice Gateway

Technical Features

Router Functions

• DSL router with firewall/NAT, DHCP server, DynDNS client, UPnP AV
• Suitable for ADSL (6 Mbit/s), ADSL2+ (16 Mbit/s) and VDSL (100 Mbit/s)
• Router operation even at a cable modem, glass fiber connection or with a UMTS stick (UMTS/HSPA)
• Complete support for IPv6 in the home network and Internet
• Simple to use web browser, independent of operating system, allows use with Windows, macOS, Linux, and other computers
• Stateful Packet Inspection Firewall with port forwarding for secure surfing
• Secure remote access over the Internet with VPN (IPSec)

Telephony Functions

• Telephone system with DECT base station for up to 6 cordless telephones
• Voice transmission encrypted upon delivery (preconfigured for secure use)
• ISDN S₀ bus for connecting ISDN telephones/ISDN telephone systems
• 2 a/b ports for analog telephones, answering machines, and fax machines
• Supports HD telephony for natural sound
• DECT Eco: radio network switches off ergonomically
• 5 integrated answering machines featuring voice-to-mail
• Fax function with e-mail forwarding (fax-to-mail)
• Comprehensive functions such as call diversion, internal calls, three-party conferences, call transfer, call blocking, call barring, baby monitoring, VIP calls, and Do Not Disturb
• Internet telephony SIP-compliant in accordance with RFC 3261
• Registration of IP telephones (LAN/wireless LAN) SIP-compliant
• Telephony app (WiFi) for Apple iPhone with iOS 4 or higher; Google Android 2.1 or higher

Wireless LAN Functions

• Wireless radio networks according to 802.11ac (up to 1300 Mbit/s, 5 GHz band), and 802.11n (up to 450 Mbit/s, 2.4 GHz), backward compatible with wireless standards 802.11g, b, and a
• Dual Wireless AC + N for simultaneous operation in the 2.4 and 5 GHz bands
• Secure access with WPA2 encryption
• WPS: Simple and secure registration of wireless surfing
• WLAN pushbutton (to switch wireless LAN on/off manually)
• WLAN guest access – secure surfing for friends and visitors
• Integrates iPhone and Android smartphones into the home network and allows for Internet telephony
• Wireless network range extended through repeater function
• WLAN auto-channel: Automated search for wireless LAN radio channel free of interference
• WLAN Eco for optimum performance at minimum power consumption

Media Server / NAS

• Internal storage (NAS)
• FRITZ!NAS – simple browser-based access to all files in the network, wherever they are stored
• High-speed USB 3.0/2.0 ports for printers and storage devices in the network
• Media server makes photos, music, and videos in the network available to playback devices (SMB, FTP, UPnP AV)
• Supports devices compliant with DLNA
• Powerful processor for network applications like IPTV, video on demand, and media streaming
• Secure remote access over the Internet to data released for sharing

FRITZ!OS

• FRITZ!Box: clearly laid-out user interface – for intuitive operation via web browser
• Using MyFRITZ! your FRITZ!Box can be accessed securely from anywhere
• Convenient functions like parental controls, push service, cloud contacts, online storage
• Sharing of existing Internet connection over LAN or WLAN (guest access)
• WLAN telephone calls in the home network with iPhones and Android smartphones
• FRITZ!App Fon: Interface specially designed for smartphones and tablets
• Overview in home network, advanced view, help functions with full-text search and much more
• New functions provided in free updates: avm.de/en/fritzos

Smart Home Features

• Integration of the FRITZ!DECT 200 smart plug
• Manual/automatic switching from the home network or the Internet
• Measures power consumption of connected electrical devices

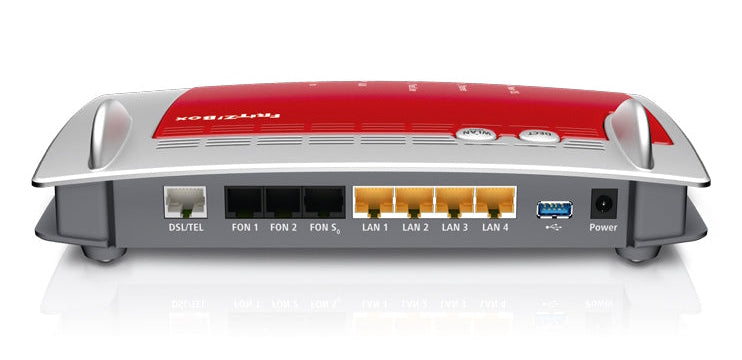

Ports and Interfaces

• ADSL/ADSL2+ in accordance with ITU G.992.3 Annex A, B, J, or M; VDSL in compliance with ITU G.993.2
• 4× Gigabit Ethernet (10/100/1000 Base-T) for PC, game console, network, IP telephone
• Wireless N access point (IEEE 802.11ac, n, g, b, a) for PC, notebook, tablet, smartphone
• 2× USB 3.0/2.0 for printer, storage, UMTS stick, Stick & Surf
• DECT base station for up to 6 handsets
• ISDN S₀ bus (RJ45) for ISDN telephones or ISDN telephone systems
• 2× a/b ports (RJ11) for analog telephones, answering machines, and fax machines

Physical Specifications

• Dimensions (W × H × D): 245 × 175 × 55 mm
• Suitable for table or wall-mounted operation
• Average power consumption: 9.3 W
