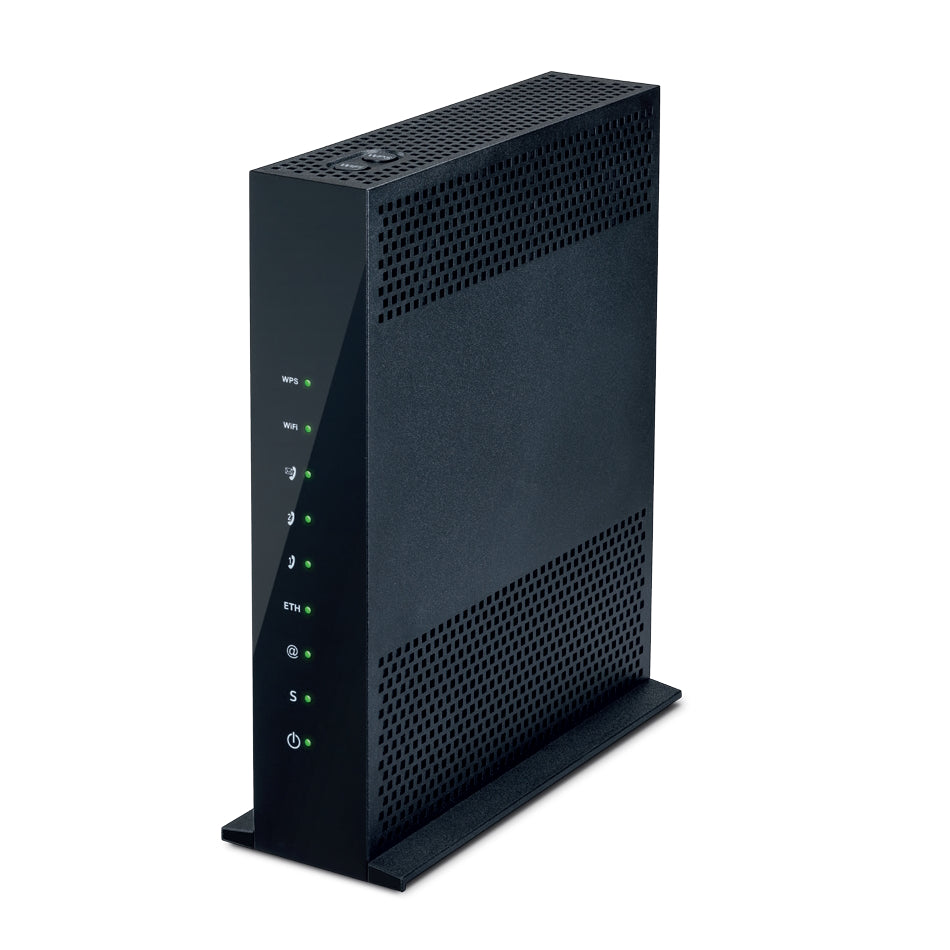

F@st 3686 V2 High Performance Triple Play Home Gateway
Sagemcom · F@st 3686 V2
Feature Highlights
DOCSIS 3.0 / EuroDOCSIS 3.0 / Gigabit Ethernet WAN Access24x8 Channel Bonding
Dual-Band WiFi 5 (AC)
1.300 Mbps on 5Ghz 3x3 MIMO
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Description
Technical Specifications
Sagemcom F@st 3686 V2 is a residential gateway providing gigabit broadband Internet access through a DOCSIS 3.0 cable network. With Sagemcom F@st 3686 V2 and the associated set-top-boxes, the user gets access to 3-play services with a high level of quality:
• Up to 1200 Mbps Downlink and 216 Mbps Uplink throughput over DOCSIS
• Dual band dual concurrent Wi-Fi Access Point in 2.4 and 5 GHz bands
• High quality Voice over IP communication based on the MGCP protocol as well as on SiP (option)
| INTERFACES |

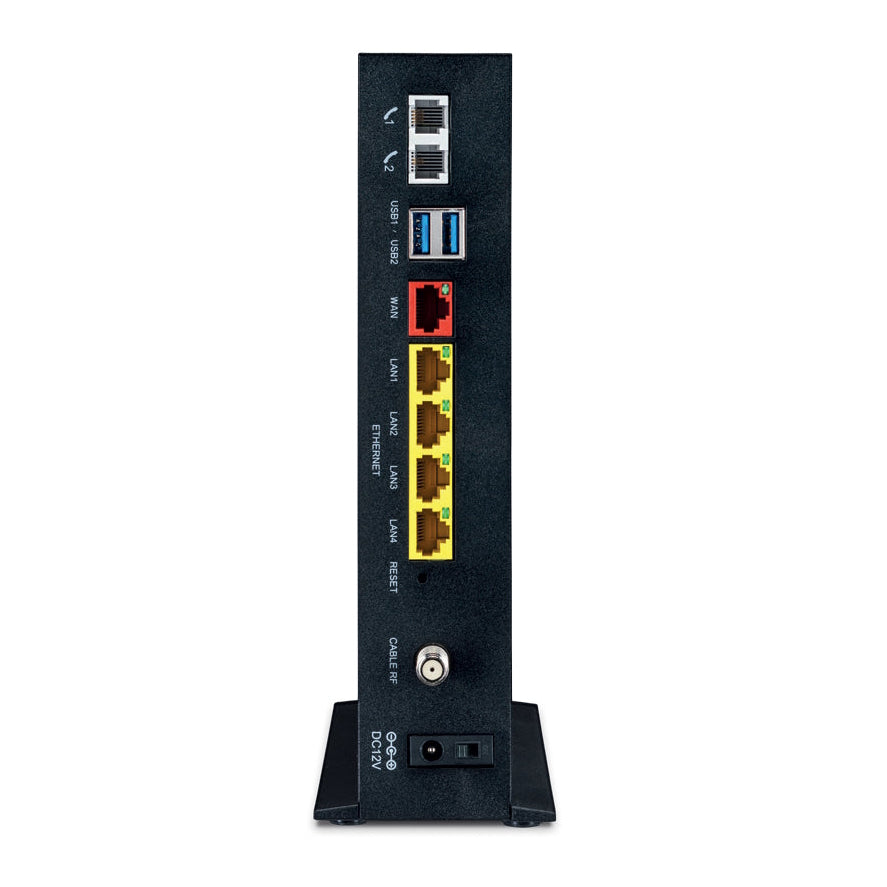

• Network: • DOCSIS 3.0 • Channel bonding up to 24×8 • Backward compatible with DOCSIS 1.0/2.0 and 2.0b • Compatible with EuroDOCSIS and US DOCSIS frequencies • 1 Giga-Ethernet port for WAN (option) • User: • 4× Eth 10/100/1000 Base-T • 2× USB host 2.0 (optional) • 802.11b/g/n Wi-Fi access point in 2.4 GHz (3×3) • 802.11a/n/ac Wi-Fi access point in 5 GHz (3×3) • 2× FXS (option) |
| WIRELESS SECURITY |
• WPA/WPA2/WEP with 64/128-bit keys • MAC Address Access List • WPS • Wi-Fi Alliance certified |
| PPP FUNCTIONS |
• PPPoE client termination • PPPoE session pass-through |
| IP FUNCTIONS |
• General: • NAT/PAT • DHCP client and server • DNS relay • IPv6: • Dual stack • DS-Lite • Routing: • Static/dynamic routing • IGMP Proxy/snooping • Firewall: • Address, port and protocol filtering • Stateful Packet Inspection • QoS: • DiffServ • L2TP |
| VOICE OVER IP (VoIP) |
• Multi-FXS management, up to 2 VoIP lines • Protocol NCS, MGCP or SIP (PacketCable 1.5 and PacketCable 2.0 supported) • Voice coding: • G.711 (64 kbps) • G.729 (8 kbps) |
| REMOTE MANAGEMENT |
• Firmware upgrade by TFTP • Auto provisioning and remote configuration • SNMP • TR-069 • Advanced voice supplementary services |
| ELECTRICITY SAFETY | • Compliant with EN 60 950, EN 41003 |
| ENVIRONMENT |
• Operating temperature: 5°C to 45°C • EMC: 89/336EEC, EN 55022 Class B, EN 55024 • IEEE Wi-Fi b/g/n/11ac compliant • CE |
| PHYSICAL FEATURES |
• External Power supply • Size (L×D×H): 185×227×71 mm (including the feet) • Weight: 724 g |
