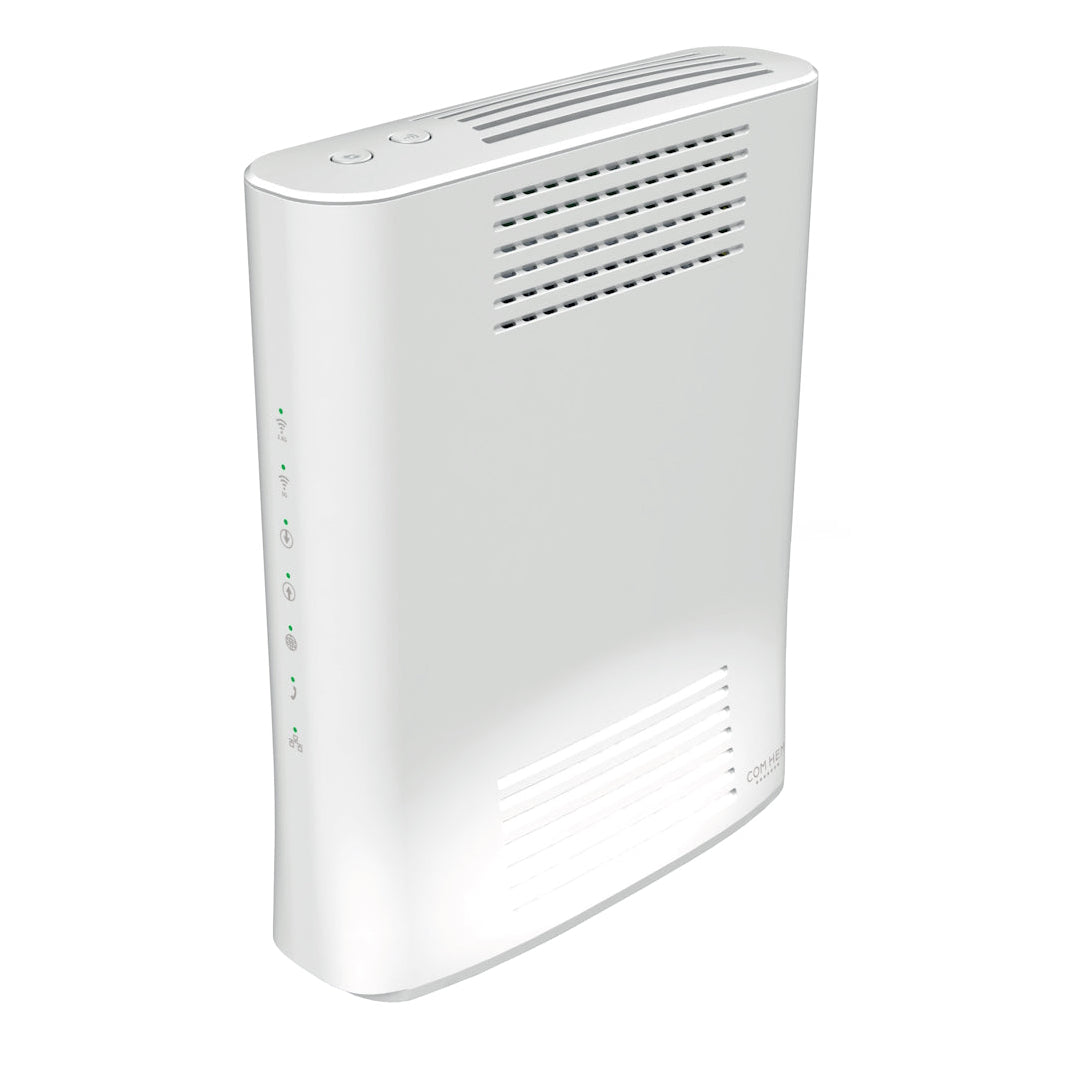

F@st 3896 3X3 High Performance Triple Play Home Gateway

Sagemcom · F@st 3896 3X3
Condition

Feature Highlights

DOCSIS 3.1 / EuroDOCSIS 3.0 WAN Access
2x2 OFDM(A) Channels
32x8 Channel Bonding
Dual-Band WiFi 6 (AX)
2.400 Mbps on 5Ghz 4x4 MU-MIMO
861 Mbps on 2.4Ghz 3x3 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone
1-Year Warranty
30-Day Returns
Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203
Description
Technical Specifications

Sagemcom F@st 3896 is a broadband gateway providing multi-gigabit broadband Internet access through DOCSIS 3.1 and 3.0 cable networks. With Sagemcom F@st 3896 and the associated set-top-boxes, the user gets access to 3-play services with a high level of quality:
• Up to 5Gbps Downlink and 2 Gbps Uplink throughput over DOCSIS
• Dual band dual concurrent Wi-Fi 6 Access Point in 2.4 and 5 GHz bands
• High quality Voice over IP communication based on the MGCP protocol as well as on SIP (option)
• Content sharing with embedded DLNA Server (option) and USB host 3.0 port (option)

INTERFACES
  • Network: DOCSIS 3.1 2x2
  • DOCSIS 3.0 with channel bonding up to 32x8
  • Switchable diplexer 85MHz / 204MHz (option)
  • Backward compatible with DOCSIS 1.0/2.0 and 2.0b
  • Compatible with EuroDOCSIS and US DOCSIS frequencies
  • Wi-Fi: Wi-Fi 6 access point in 2.4 GHz and 5 GHz
  • Ethernet: 4× 10/100/1000 Base-T
  • USB 3.0 for accessories (option)
  • FXS ports (up to 2, option)
WIRELESS SECURITY
  • WPA3/WPA2/WPA
  • WPS
  • Wi-Fi Alliance certified
IP FUNCTIONS
  • NAT/PAT
  • DHCP client and server
  • DNS relay
  • IPv6 dual stack
  • DS-Lite
  • Static/dynamic routing
  • IGMP Proxy/snooping
  • Firewall: address, port and protocol filtering
  • Firewall: stateful packet inspection
  • L2TP
VOICE OVER IP (VOIP)
  • Multi-FXS management (up to 2 lines)
  • Protocol: NCS, MGCP or SIP
  • PacketCable 1.5 & 2.0 supported
  • Codecs: G.711 (64 kbps), G.729 (8 kbps)
REMOTE MANAGEMENT
  • Firmware upgrade via TFTP or HTTP
  • Auto-provisioning and remote configuration
  • SNMP
  • TR-069
  • Advanced voice supplementary services
ELECTRICITY SAFETY
  • Compliant with EN 60 950
  • Compliant with EN 41003
ENVIRONMENT
  • Operating temperature: 5°C to 40°C
  • EMC: EN 55022, EN 55024, Class B
  • Supports IEEE 11b/g/n/ax (2.4 GHz)
  • Supports IEEE 11a/n/ac/ax (5 GHz)
  • CE certified
PHYSICAL FEATURES
  • External power supply
  • Size: 190 × 65 × 222 to 235 mm (with foot)
  • Weight: 950 g
