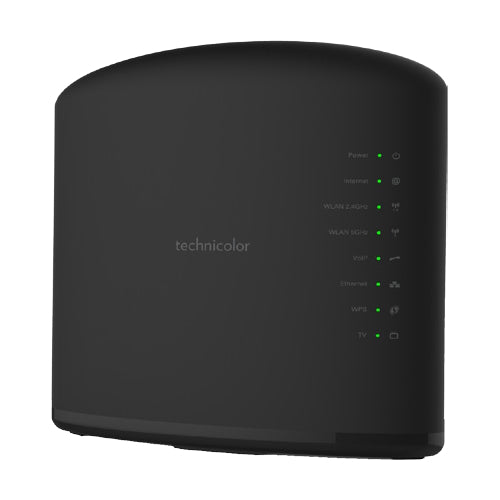

MediaAccess TG389ac Wireless .11ac Smart Gateway with Voice for FTTH & Ethernet WAN Scenarios
Feature Highlights
Gigabit Ethernet WAN AccessDual-Band WiFi 5 (AC)
1.300 Mbps on 5Ghz 3x3 MIMO
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
The TG389ac is a carrier grade smart Ethernet gateway featuring one Gigabit Ethernet WAN port, helping you respond to the growing enduser demand for more bandwidth. Thanks to its powerful core and scalable service memory, the TG389ac enables true gigabit connectivity between LAN devices and the network.
On the LAN side, the TG389ac includes next to advanced Voice over IP (VoIP) functions, four Gigabit Ethernet LAN ports and next-gen dual band concurrent IEEE 802.11ac and IEEE 802.11n Wi-Fi to stream data, including rich media content, anywhere in the home.
This Ethernet Gateway also extends your broadband offers with advanced applications and services, making it the perfect solution to increase your ARPU and subscriber stickiness in highly competitive environments.
| Hardware Specifications | |
|---|---|
| Interfaces WAN | 1 Ethernet WAN 10/100/1000 Base-T port |
| Interfaces LAN | 4-port autosensing 10/100/1000 Base-T auto-MDI/MDI-X Ethernet LAN switch |
| Interfaces other |
2 FXS POTS ports 2 USB 2.0 high-speed master ports IEEE 802.11n 2.4 GHz on-board IEEE 802.11ac 5.0 GHz on-board Power button Info button ECO button WPS button Reset button |
| Dimensions | 221 × 171 × 39 mm (8.7 × 6.7 × 1.5 in.) |
| AC Voltage | 100 – 240 VAC (switched-mode power supply) |
| Temperature | 0° – 40°C (32° – 104°F) |
| Humidity | 20% to 80% |
| Wireless Specifications | |
| Wi-Fi mode |
Full dual-band concurrent Wi-Fi access points, Wi-Fi certified 2.4 GHz (2×2) IEEE 802.11n AP 5.0 GHz (3×3) IEEE 802.11ac AP with IEEE 802.11ac compliant transmit beamforming |
| Wi-Fi 2.4 GHz power | Standard: Up to 20 dBm (100 mW EIRP) |
| Wi-Fi Protected Setup (WPS) | Supported |
| Wi-Fi security levels |
WPA2™-Enterprise / WPA™-Enterprise WPA2™-Personal / WPA™-Personal WEP™ |
| Wi-Fi Multimedia (WMM™) | Supported |
| BSSIDs | Up to 4 BSSIDs (virtual AP) support per radio interface |
| RX/TX switching diversity | Supported |
| 2×2 MIMO 2.4 GHz features |
SGI STBC 20/40 MHz coexistence |
| 3×3 MIMO 5.0 GHz Wi-Fi features |
SGI STBC 20/40/80 MHz mode |
| Wi-Fi channel selection | Dynamic rate switching for optimal wireless performance; manual/auto radio channel selection |
TG389ac
