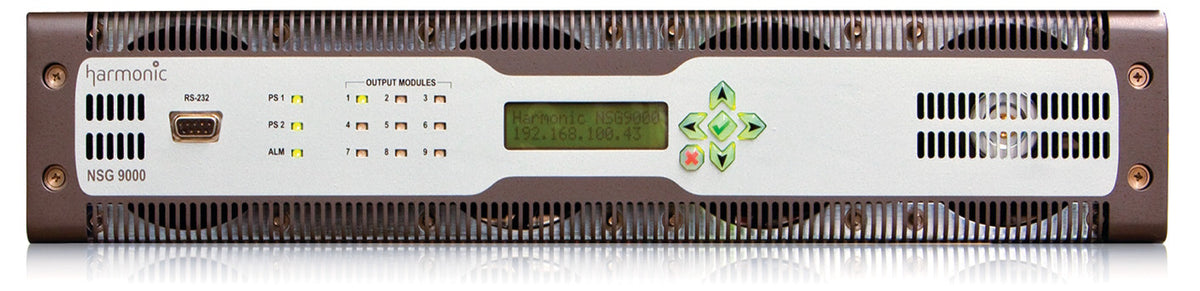

NSG 9000-40G HectoQAM Scalable Universal EdgeQAM

Harmonic · NSG 9000-40G
1-Year Warranty
30-Day Returns
Essential Support

Please feel free to reach out to us with any questions.

hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204

Description
Technical Specifications

The NSG™ 9000-40G is the latest generation of the Harmonic ultra-dense universal edgeQAM system, capable of reaching up to 648 QAM RF outputs per unit. The device is designed as a highly integrated digital video gateway which multiplexes on-demand content streamed over an IP network. The NSG 9000-40G was engineered for scalability, and is capable of growing in QAM density from 8 to 648 QAMs per unit. In addition to providing unparalleled output density, the NSG 9000-40G is designed to support a variety of applications, including video on demand (VOD), switched digital video (SDV), broadcast, modular cable modem termination systems (M-CMTS) and Direct to Edge (D2E) for cable IPTV.

  • High-density, modular 2-RU system supporting up to 44 Gbps input and 648 QAMs
  • Hot swappable QAM RF modules with 2 RF ports capable of outputting up to 36 QAM channels spread flexibly over the spectrum
  • Variable Equalizer™ for advanced RF power control
  • Controlled via the Mass Configuration Tool (MCT), an HTTP web GUI or Command Line Interface (CLI)
  • Motorola Privacy Mode real-time encryption
  • DVB-CSA real-time encryption • DOCSIS 3.0 ready
PHYSICAL
Input Voltage 85-264 VAC, 47-63 Hz
42-60 VDC
Power Consumption 780W @ 220VAC
780W @ 110VAC
780W @ -48VDC
Power Modules 1+1 redundant AC/DC, load sharing power supplies
Rack Space 2-RU
Dimensions (W x H x D) 19 in x 3.47 in x 20.75 in
48.26 cm x 8.81 cm x 52.7 cm
Weight Chassis and processing board: 34 lb / 15.4 Kg
Power supplies: 3.9 lb / 1.8 Kg
RF Module: 2.2 lb / 1.0 Kg
QAM RF
RF Module Type NSG-36R1G
Connector F-Type, 75 Ω
Ports 2 RF ports per module
RF Output Power per Channel

Number of QAM DRFI Power per Channel Annex B Power per Channel Annex A
1-849 dBmV52 dBmV52 dBmV
9-1048 dBmV51 dBmV51 dBmV
11-1247 dBmV50 dBmV50 dBmV
13-1446 dBmV49 dBmV49 dBmV
15-1745 dBmV48 dBmV48 dBmV
18-2144 dBmV47 dBmV47 dBmV
22-2643 dBmV46 dBmV46 dBmV
2742 dBmV45 dBmV45 dBmV
28-3242 dBmV45 dBmVN/A
33-3641 dBmV44 dBmVN/A
RF Frequency Range 50 MHz to 1002 MHz
RF Frequency Step Size 1 kHz
Carrier's Frequency Offset ± 3 KHz
QAM Constellations Annex A,C: 16, 32, 64, 128, 256
Annex B: 64, 256
Bandwidth Standard: 6 MHz or 8 MHz
Non-standard: 5.65 MHz to 8 MHz
QAM Density per Port Annex B, C: Up to 36 QAM channels
Annex A: Up to 26 QAM channels
QAM Agility Full agility within a 384 MHz frequency span
QAM Encoding ITU-T J.83 Annex A (DVB), B, C (Japan)
RF Output Power Adjustment Range 8 dB in 0.1 dB steps
Output Return Loss 14 dB within any channel from 50 MHz to 1002 MHz (typical > 16 dB)
GIGABIT ETHERNET INPUT
Type Gigabit Ethernet 802.3z and 10 Gbe Ethernet 802.3ae
Ports 8 Independent ports (4*10 Gbe and 4 *1 Gbe)
Connector 4 x SFP cages
4 x SFP+ cages
I/O Speed (1Gbe ports) 960 Mbps per port
I/O Speed (10Gbe ports) 9600 Mbps per port
IP Encapsulation MPEG TS over UDP/IP/MA 1 to 7 TS/ IP
MPEG Format 188 Bytes per TS packet
I/O Processing Up to 9600 Mbps per port
Total Processing Capacity Up to 44 Gbps
Addressing & Protocols Unicast (UDP, L2TPv3), Multicast (IGMPv1,v2,v3)
Management ARP, ICMP
Monitoring GbE port forwarding (port or socket mirroring)
Redundancy 4 x (1 + 1)
2 x (3 + 1) ISA-SDV applications only
ASI MONITOR PORT
Type ASI Output
Connector BNC, 75Ω
Configuration Configurable mirroring per QAM
MPEG Format 188 Bytes per TS packet
MANAGEMENT INTERFACES
Ethernet 2 x 10/100/1000 Base-T Connector RJ-45 (1 Management, 1 CAS)
Serial Port RS232
DTI PORT
2 * DTI interface for DOCSIS 3.0 support
RE-MULTIPLEXING
Program and PID Re-mapping & remultiplexing
PSI/SI PAT/PMT extraction and generation
Number of Unicast Services Up to 4000
ENCRYPTION
Motorola Privacy Mode
DVB-CSA Session-based and tier-based SymulCrypt
MANAGEMENT
Standalone Control NSG Web-client
Command Line Interface (CLI) through SSH/Serial
Mass Configuration Mass Configuration Tool (MCT) version 10 and above
NMS Harmonic NMX Digital Service Manager (monitoring only) version 6.0 and above
SNMP Monitoring Alarms monitoring via SNMP (traps and polling)
Protocols TCP/IP, RPC SNMP v1,v2c,v3 HTTP, HTTPS, SCP, RS-232
REDUNDANCY SCHEMES
Device Redundancy EdgeCluster
GbE Port Redundancy 4x1:1, 2x3:1, N:1
Socket Redundancy Inter-port socket redundancy
Intra-port socket redundancy
ENVIRONMENTAL
Operating Temperature Range 32°F to 122°F
0°C to 50°C
Storage Temperature Range -40°F to 158°F
-40°C to 70°C
Relative Humidity 0 to 95% non-condensing
Operating Altitude Up to 15,000 feet (4,572 meters)
