RF Gateway 10 Supervisor Engine 7-E

Cisco · RFGW-X45-SUP7-E
Condition
1-Year Warranty
30-Day Returns
Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203
Description
Technical Specifications

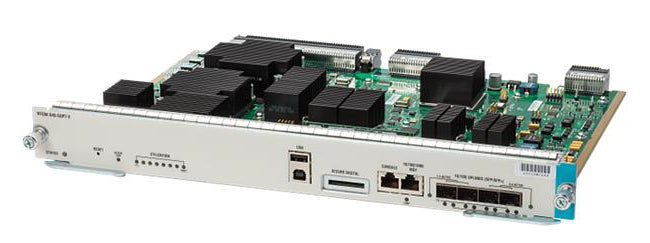

The Cisco® RF Gateway 10 Supervisor Engine 7-E (Figure 1) for the Cisco RF Gateway 10 universal edge quadrature amplitude modulation (U-EQAM) modulator redefines the way aggregation and traffic management features are managed at the edge of the cable network. Specially optimized for the Cisco RF Gateway 10 platform, the supervisor engine can be deployed in a redundant configuration with automatic failover. It runs the comprehensive feature set available in Cisco IOS® XE Software Release 3.2.0 SQ, with an array of management, line-rate Ethernet aggregation and switching, and packet filtering functions-all embedded in the carrier-class Cisco RF Gateway 10 platform. The Cisco RF Gateway 10 Supervisor Engine 7-E provides the increased switching and processing performance required for the new high-density Cisco RF Gateway Downstream 384 (RFGW-DS384) Universal Edge QAM Line Card.

Specification Value
Physical Occupies a single supervisor slot in the Cisco RF Gateway 10 chassis
Weight 5.5 lbs (2.5 kg)
Environmental Operating altitude: -60 to 3000 m
Storage temperature: -40 to 167°F (-40 to 75°C)
Operating temperature: 32 to 104°F (0 to 40°C)
Relative humidity: 10% to 90%, noncondensing
LEDs System status: green (operational); red (faulty)
Switch utilization load: 1% to 100% aggregate switching usage
Console port RJ-45 female
Management port 10/100 BASE-TX Ethernet
Reset button Switch recess protected
Synchronous Dynamic RAM (SDRAM) 2 GB upgradable to 4 GB
Ethernet Uplink Interfaces
Dual supervisors operating in active/standby redundancy mode Up to four Gigabit Ethernet or two 10 Gigabit Ethernet per chassis
Single supervisor operating in nonredundant mode Up to four Gigabit Ethernet or two 10 Gigabit Ethernet per chassis
Small Form Factor Pluggables Supported
Gigabit Ethernet interfaces SFP-GE-S, SFP-GE-L
10 Gigabit Ethernet interfaces SFP-10G-SR, SFP-10G-LR
