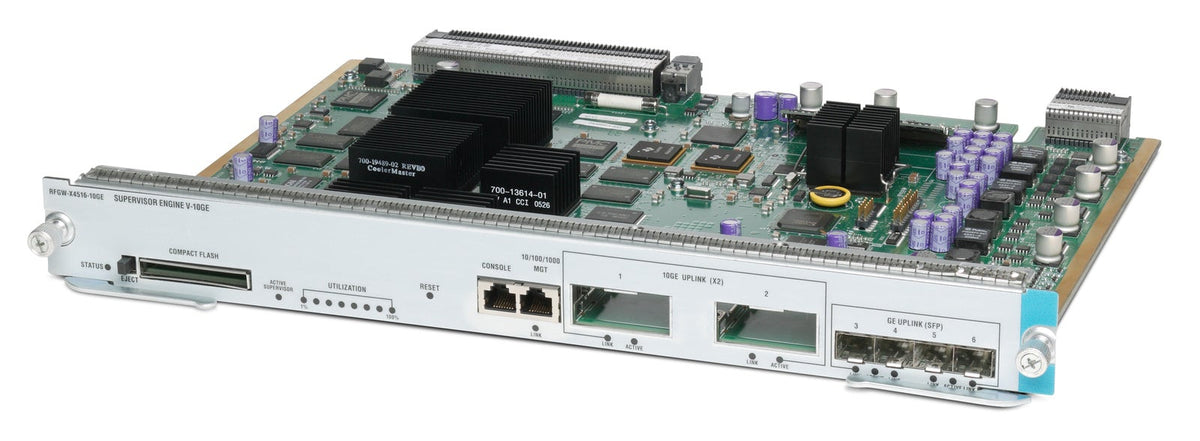

RF Gateway 10 Supervisor Engine V-10GE
Cisco · RFGW-X4516-10GE
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free to reach out to us with any questions.
hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204
Description
Technical Specifications
The Cisco RF Gateway 10 Supervisor Engine V-10GE, for the Cisco RF Gateway 10 universal edge quadrature amplitude modulation modulator (U-EQAM) redefines the way aggregation and traffic management features are managed at the edge of the cable network. Specially optimized for the Cisco RF Gateway 10, the Supervisor Engine V-10GE can be deploye in a redundant configuration with automatic failover.
| Specification | Value |
|---|---|
| Physical | Occupies a single supervisor slot in the Cisco RF Gateway 10 chassis |
| Weight | 5.5 lbs (2.5 kg) |
| Environmental | Operating altitude: -60 to 3000 m |
| Storage temperature: -40 to 158°F (-40 to 70°C) | |
| Operating temperature: 32 to 104°F (0 to 40°C) | |
| Relative humidity: 10% to 85%, noncondensing | |
| LEDs | System status: green (operational); red (faulty) |
| Switch utilization load: 1% to 100% aggregate switching usage | |
| Console port | RJ-45 female |
| Management port | 10/100 BASE-TX Ethernet |
| Reset button | Switch recessed protected |
| Synchronous Dynamic RAM (SDRAM) | 512 MB |
| Compact Flash | 128 MB configurable |
| Ethernet Uplink Interfaces | Value |
| Dual supervisors operating in active/standby redundancy mode | Up to four GE and two 10GEs per chassis |
| Single supervisor operating in nonredundant mode | Up to four GE and two 10GEs per chassis |
| Small Form Factor Pluggables Supported | |
| GE Interfaces | SFP-GE-S, SFP-GE-L |
| 10GE Interfaces | X2-10GB-SR, X2-10GB-LR |
All technical data, specifications and descriptions published on this website are provided for general information purposes only. We make reasonable efforts to ensure that the information is accurate and up to date; however, no guarantee, warranty or representation (express or implied) is given that any information is complete, correct, current or error-free. Images are for illustration purposes only, actual product may not include all parts visible.
