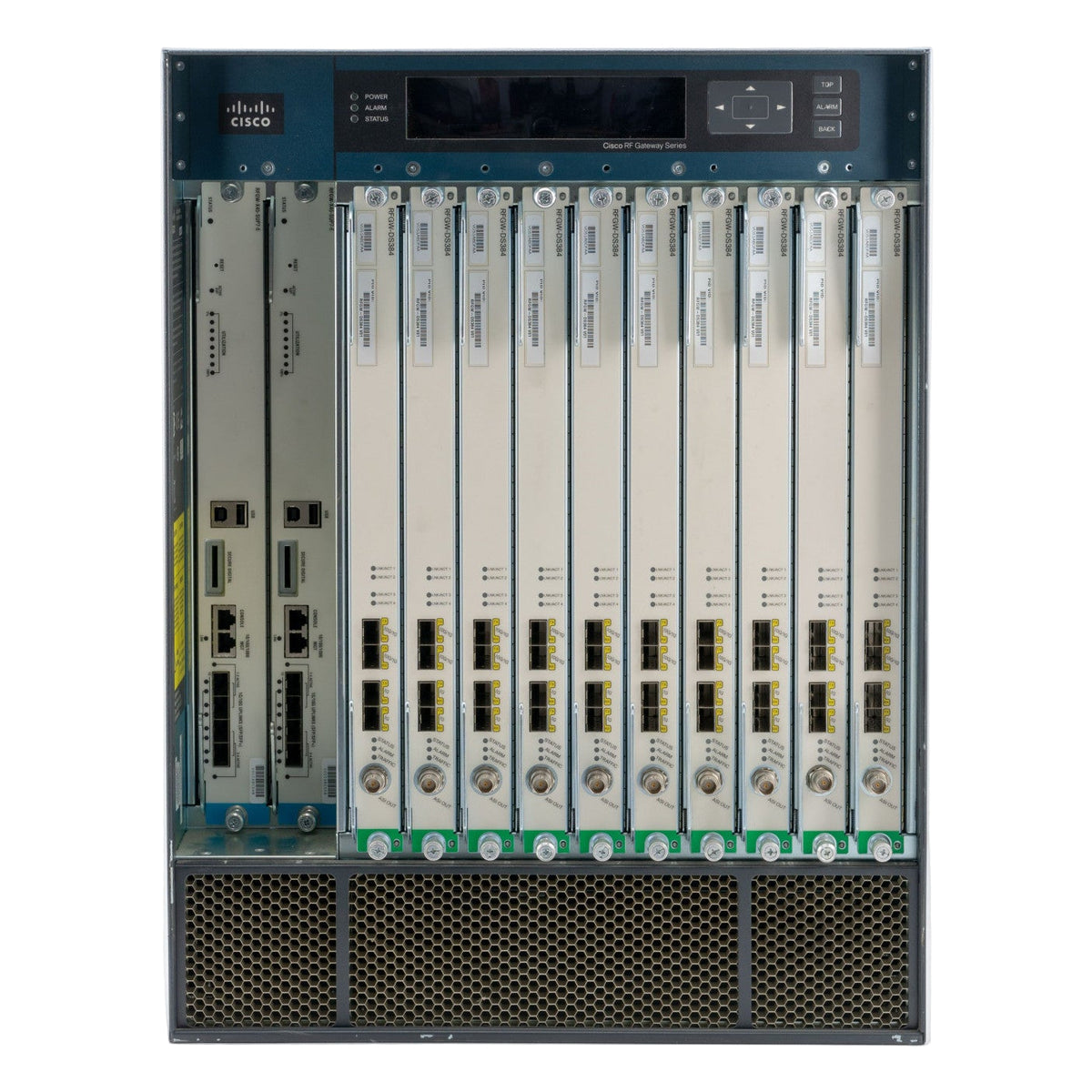

RF Gateway 10 Universal Edge QAM Chassis

Cisco · CHAS-RFGW-10
Condition
1-Year Warranty
30-Day Returns
Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203
Description
Technical Specifications

As cable operators expand their offerings of high definition services and accelerate the transition to a fully digital network through initiatives such as DOCSIS 3.0, SDV and analog reclamation, the number of QAM channels required is expected to grow exponentially. The Cisco RF Gateway 10 provides the capacity, scalability and high-availability features to enable this transition.

Key features of the Cisco RF Gateway 10 include:
● 100 percent link redundancy with 10 Gigabit Ethernet (10GE) and Gigabit Ethernet (GE) interfaces
● Universal edge QAM functionality to support all digital video and DOCSIS servicesconcurrently on a single platform
● Non-service-affecting roadmap of incremental upgrades, including scalability to 200+ Gbps aggregate bandwidth per chass

Specifications Value
Chassis dimensions Height: 22.75 in. (578 mm)
Width: 17 in. (432 mm)
Depth: 23 in. (584 mm)
Dimensions in rack
  • 13 rack units (RUs) high with up to three chassis per 7-foot rack (39 RUs)
  • Depth from the front rack mount bracket including rear UCH-2 cable headers, power supply handles, and RF cable management bracket 26 in. (660 mm)
Slots 2 supervisor slots, 10 universal RF slots, 2 timing and control module slots, 12 RF switch slots, 2 power supply slots, 1 fan tray, 1 front panel display module. All line cards and modules are hot-swappable.
Weight Fully loaded: 275 lb (125 kg)
Mounting options Front and midchassis mountable in a 19 in. (480mm) EIA standard two- or four-post rack
Power consumption
  • Single or dual redundant, load-sharing and load-balancing DC power supplies.
  • DC input voltage –48 to –60 VDC with chassis capacity of 4536 W.
  • Fully loaded typical power consumption of 2250 W (480 QAMs @ 4.7W/QAM)
Front panel display 40 character front panel display (FPD) with push-button controls
Backplane capacity 240 Gbps
Operating temperature Operating temperature: 32° to 104°F (0° to 40°C)
Storage temperature: –40° to 158°F (–40° to 70°C)
Airflow Front to back flow with 800 CFM exhaust volume (main fan tray plus PS fans) at full flow
Relative humidity 10 to 85 percent, noncondensing
Altitude Operating altitude: –60 to 3000 m
Timing
  • 2 timing and control modules, Compliant with CableLabs DOCSIS Timing Interface specification
  • 2 DTI client ports per module
  • Full-mesh redundancy for DTI modules and DTI ports
Physical Interfaces
  • 10GE uplinks: X2 pluggable optics
  • GE uplinks: SFP pluggable optics
  • RF ports: UCH-2 header blocks holding 10 MCX RF connectors using mini coaxial cable.
  • DTI ports: UTP cable
  • Console ports: UTP cable
  • Management ports: UTP cable
