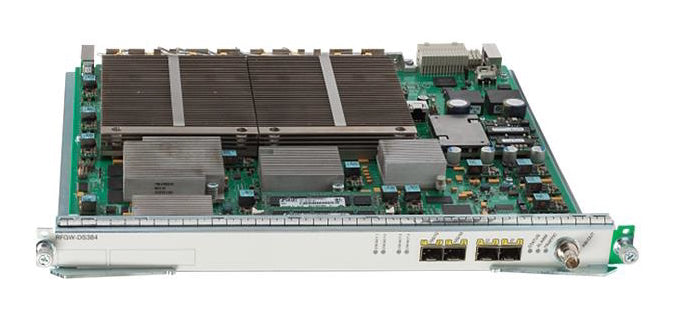

RF Gateway Downstream 384 Universal Edge QAM Line Card

Cisco · RFGW-DS384
Condition
1-Year Warranty
30-Day Returns
Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203
Description
Technical Specifications

The Cisco® RF Gateway Downstream 384 (RFGW-DS384) line card is an 8-port, 384-channel universal edge quadrature amplitude modulation (U-EQAM) modulator designed for operation in the Cisco RF Gateway 10 platform. The Cisco RF Gateway Downstream 384 Universal Edge QAM Line Card provides dramatically increased density and functionality as compared to the Cisco RF Gateway DS48-1G Universal Edge QAM Line Card.

The Cisco RFGW-DS384 offers concurrent support for standard and high-definition digital broadcast television, switched digital video (SDV), video-on-demand (VoD), and DOCSIS® modular cable modem termination system (M-CMTS) services. Cable operators can choose to configure the line card as DOCSIS only, video only, or DOCSIS and video shared universal edge QAM.

Specification Value
RF Specifications
DOCSIS Downstream RF Interface (DRFI) CM-SP-DRFI-I10-100611
Hardware Specifications
Physical Occupies a single RF slot in the Cisco RF Gateway 10 chassis
RF ports 8 RF ports with up to 128 QAM channels per port for a total of 384 QAMs
Dimensions (H x W x D) 1.28 x 15.35 x 15 in. (33 x 390 x 381 mm)
Weight 9.5 lb (4.32 kg)
Power consumption 270W
Environmental
  • Operating altitude: -60 to 3000m
  • Storage temperature: -40 to 158°F (-40 to 70°C)
  • Operating temperature, nominal: 32 to 104°F (0 to 4 0°C)
  • Operating relative humidity: 10 to 85%, noncondensing
LEDs Status, alarm, traffic, Gigabit Ethernet port link and activity
Ethernet Uplink Interfaces
Uplinks 2 x Gigabit Ethernet and 2 x 1 Gigabit Ethernet or 10 Gigabit Ethernet
Uplink optic types Small Form Factor Pluggable (SFP) Gigabit Ethernet and Enhanced SFP (SFP+) 10 Gigabit Ethernet
Video Specifications
Video format
  • MPEG-2 SPTS and MPTS encapsulated in User Datagram Protocol (UDP)/IP (RFC-768)
  • Up to seven 188-byte MPEG-2 packets per UDP datagram
  • MPEG-2 and MPEG-4/H.264 content
  • Standard and high definition
  • Constant bit rate (CBR) and variable bit rate (VBR)
Video processing
  • Packet Identification (PID) remapping
  • Program Clock Reference (PCR) restamping
  • Program Specific Information (PSI) extraction, generation, and insertion
  • Multiple program transport stream (MPTS) passthrough
  • Session statistics
  • Session statistics
Video redundancy
  • Redundant source failover
  • Link redundancy
Multicast
  • IP multicast routing protocols: Protocol Independent Multicast (PIM), including sparse mode and dense mode
  • Source Specific Multicast (SSM) and Any Source Multicast (ASM)
  • Internet Group Management Protocol (IGMP)
Dejitter buffering 300 ms, configurable
TS bit rate VBR and CBR
DOCSIS Specifications
CableLabs specifications supported
  • DEPI
  • DEPI-CP
  • DOCSIS Timing Interface (DTI)
  • M-CMTS Operations Support System Interface (OSSI)
  • ERMI-1 and 2
  • Converged Cable Access Platform (CCAP)
