RFGW-1-D I/O Module
Cisco · RFGW-1-IO-MOD
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Description
Technical Specifications

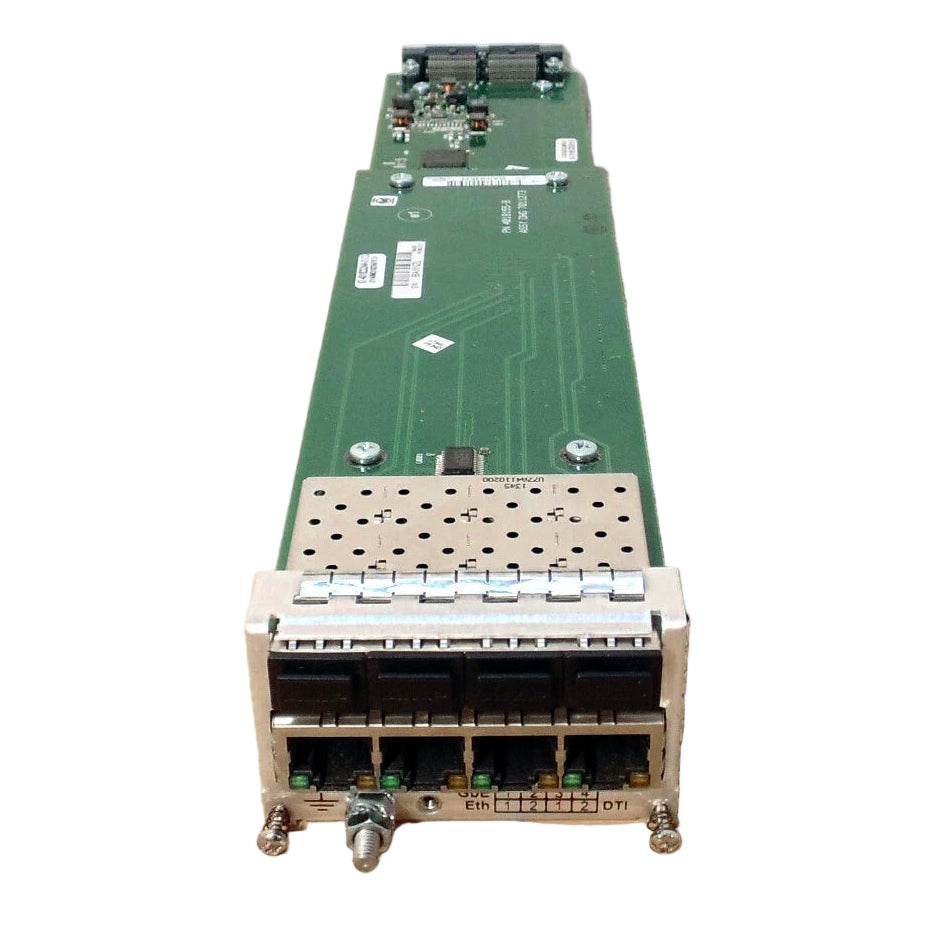

The Cisco RFGW-1-IO-MOD is the central Input/Output and control module for the Cisco RF Gateway 1 chassis. It serves as the "brain" and primary ingress point for the platform, managing all Gigabit Ethernet (GbE) video/data inputs, system timing (DTI), and chassis management. This hot-swappable module ensures carrier-class redundancy and precision synchronization required for DOCSIS 3.0 M-CMTS and high-availability video services.
| Gigabit Ethernet Input Interface | |
|---|---|
| Number of inputs | 2+2 (for redundancy) or 4 Independent |
| Connector | Optical/electrical Small Form Factor Pluggable (SFP) |
| Interface type | Gigabit Ethernet according to IEEE 802.3ab (Electrical) or IEEE 802.3z (Optical) |
| Input Data rate | Full line rate |
| Syntax | VBR and CBR MPEG SPTS and MPTS on UDP (RFC-768), RTP, L2TPv3, IGMPv3 |
| Dejitter Buffering | 500 ms (configurable from 5ms - 400ms) |
