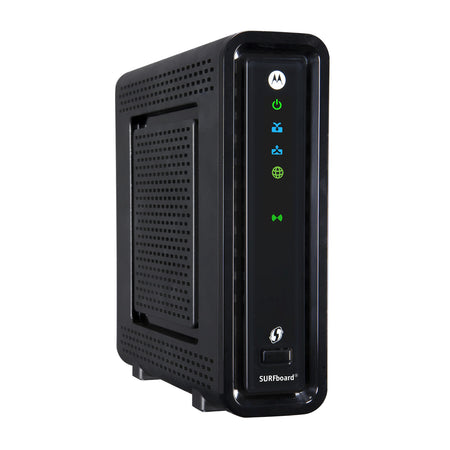

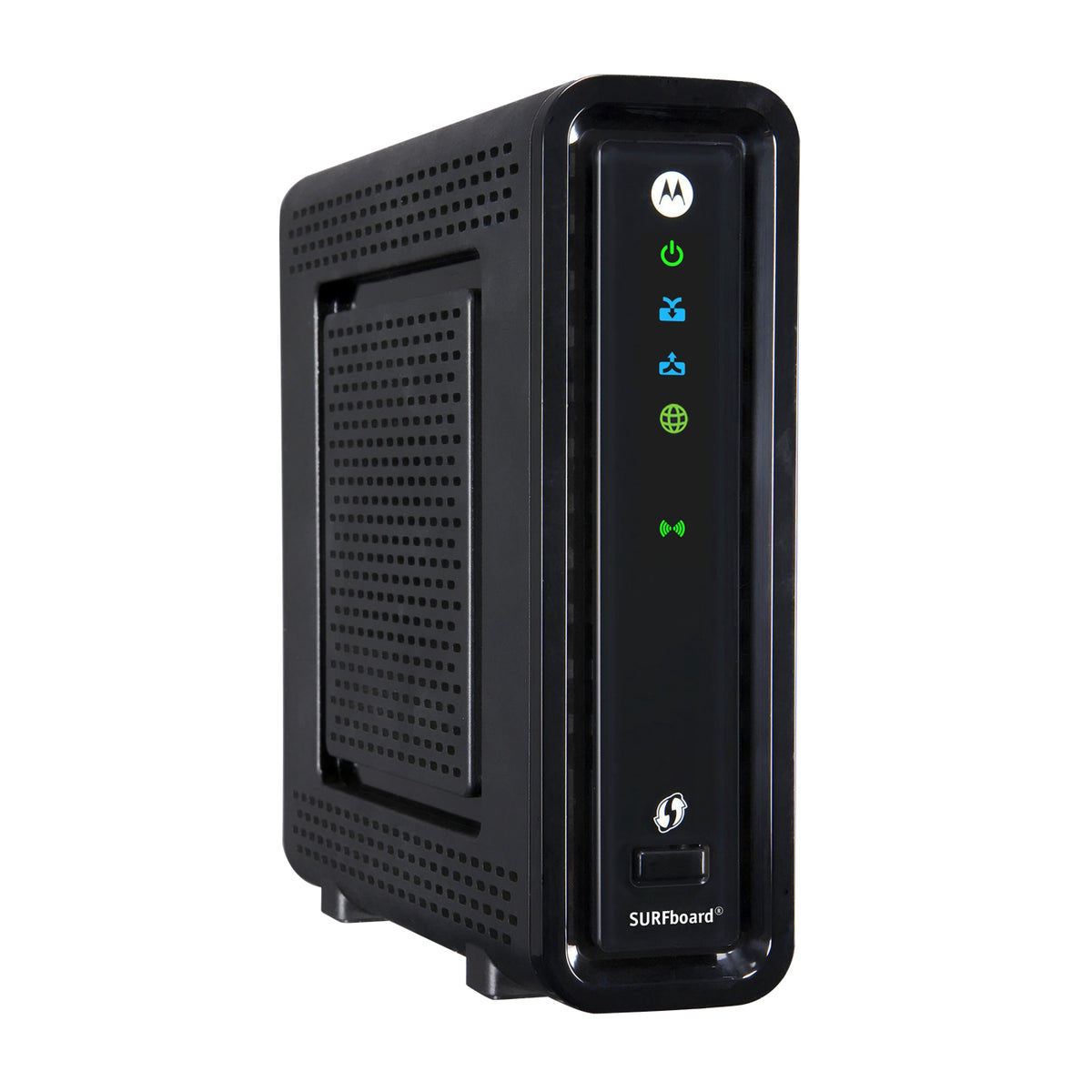

SURFboard SBG6580 Series WiFi Cable Modem Gateway
Feature Highlights
DOCSIS 3.0 WAN Access8x4 Channel Bonding
Single-Band WiFi 4 (N)
300 Mbps on 5Ghz 2x2 MIMO
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
The SBG6580 SURFboard DOCSIS 3.0 Wireless Gateway enables the delivery of innovative ultra-broadband data and multimedia services as well as high-bandwidth home networking. Designed for seamless mobility, Motorola’s SBG6580 is a fully integrated all-in-one home networking solution that combines the functionality of a DOCSIS/EuroDOCSIS 3.0 cable modem, four-port 10/100/1000 Ethernet switch with advanced firewall, and an 802.11n Wi-Fi access point in a sleek, stylish package for the sophisticated consumer. It’s the perfect networking solution for the home, home office, or small business, allowing users to create custom networks with a high-speed ultra-broadband internet connection and the ability to share files and peripheral devices across the home networks. Cost-effective, efficient, and secure, the SBG6580 enables users to maximize the potential of their existing resources, while benefiting from next generation high-bandwidth services.
| General Specifications | |
|---|---|
| Cable Interface | F-Connector, female 75 Ω |

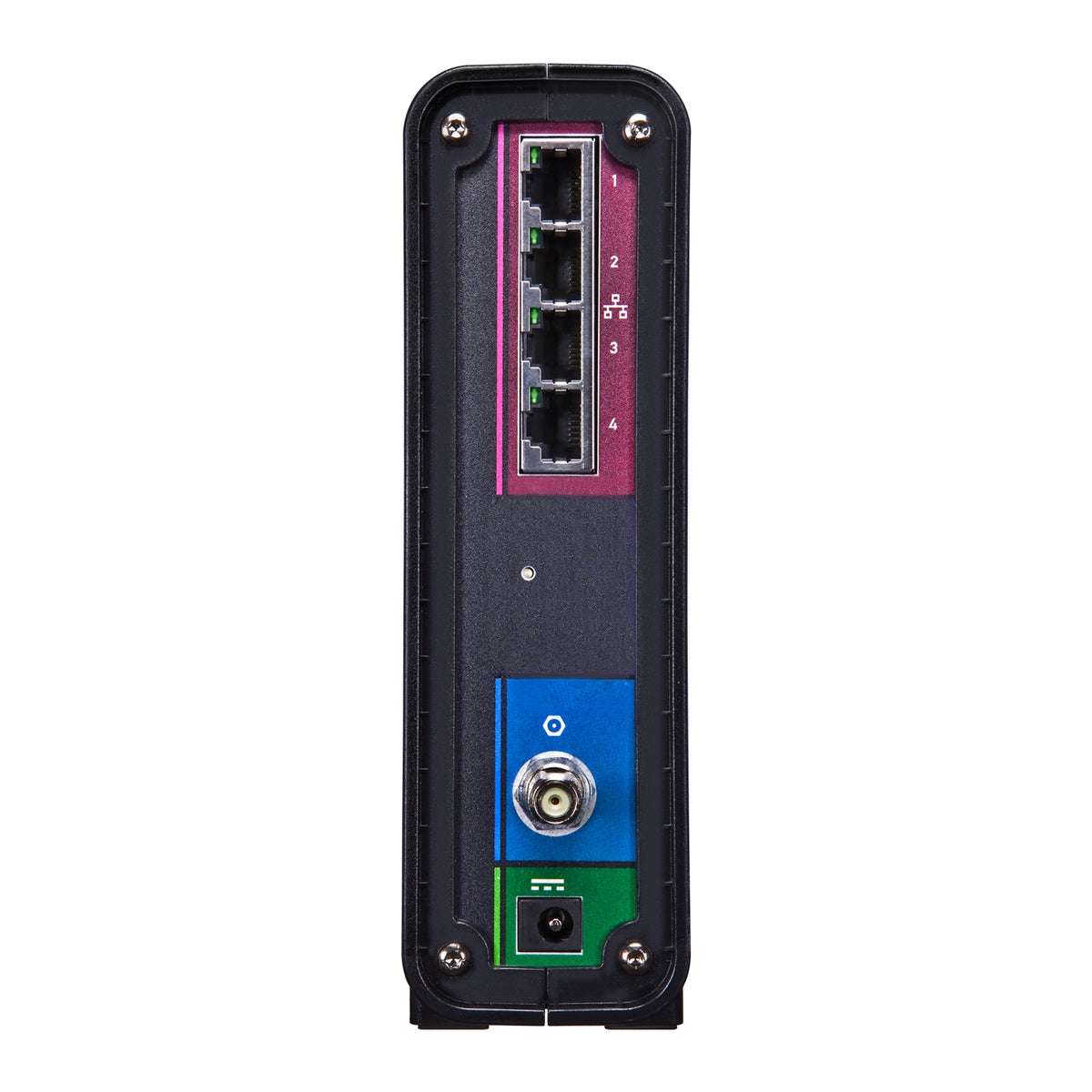

| Network Interface | Four One-Gigabit (10/100/1000) Ethernet ports |
| 2.4 GHz Wi-Fi Interface | 802.11n Wi-Fi (backwards compatible with 802.11a/b/g) |
| 5 GHz Wi-Fi Interface | 802.11n Wi-Fi (also certified for 802.11n/a) |
| Dimensions | 8.6 in × 19 in × 8.6 in (187 cm × 50 cm × 177 cm) |
| Regulatory | RoHS compliant, FCC, UL listed (U.S. and Canada), Industry Canada, CE |
| DOCSIS | DOCSIS/EuroDOCSIS 3.0 certified, interoperable with DOCSIS/EuroDOCSIS 1.0, 1.1, and 2.0 |
| Input Power | |
| North America | 105 to 125 VAC, 50/60 Hz |
| Outside North America | 100 to 240 VAC, 50 to 60 Hz |
| Environmental | |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage Temperature | –22 °F to 158 °F (–30 °C to 70 °C) |
| Operating Humidity | 5 to 95% RH (non-condensing) |
| Downstream | |
| Modulation | 64 or 256 QAM |
| Capture Bandwidth | Dual 32 MHz capture windows |
| Maximum Theoretical Data Rate |
DOCSIS: 343.072 Mbps (8 channels) / 42.884 Mbps (single channel) EuroDOCSIS: 444.928 Mbps (8 channels) / 55.616 Mbps (single channel) |
| Symbol Rate | 64 QAM 5.057 Msym/s; 256 QAM 5.361 Msym/s |
| Operational Level Range | –15 to +15 dBmV |
| Frequency Range | 108–1002 MHz (edge to edge) |
| Channel Plans | DOCSIS Annex B; EuroDOCSIS 108 to 1002 MHz (edge to edge) |
| Security | DOCSIS 3.0 Security (BPI+, EAE, SSD) |
| Network Management | SNMP v2 & v3 |
| Provisioning | Supports IP addressing using IPv4 and/or IPv6 dual stack |
| Upstream | |
| Modulation | QPSK and 8, 16, 32, 64, 128 QAM, optional 256 QAM |
| Maximum Channel Rate – DOCSIS | 131.072 Mbps (4 channels) / 32.768 Mbps (single channel) @ 128 QAM at 6.4 MHz |
| Maximum Channel Rate – EuroDOCSIS | 131.072 Mbps (4 channels) / 32.768 Mbps (single channel) @ 128 QAM at 6.4 MHz |
| Channel Width | 200 kHz, 400 kHz, 800 kHz, 1.6 MHz, 3.2 MHz, 6.4 MHz |
| Symbol Rates | 160, 320, 640, 1280, 2560, 5120 ksym/s |
| DOCSIS/EuroDOCSIS – TDMA (1 channel) |
Pmin to +54 dBmV (32 QAM, 64 QAM) Pmin to +58 dBmV (8 QAM, 16 QAM) Pmin to +61 dBmV (QPSK) |
| DOCSIS/EuroDOCSIS – S-CDMA (1 channel) |
Pmin to +56 dBmV (all modulations) Pmin to +48 dBmV, 1280 kHz modulation rate Pmin to +42 dBmV, 2560 kHz modulation rate Pmin to +23 dBmV, 5120 kHz modulation rate |
| TDMA (2–4 channels) |
Pmin to +54 dBmV (32 QAM, 64 QAM) Pmin to +58 dBmV (8 QAM, 16 QAM) Pmin to +61 dBmV (QPSK) |
| S-CDMA (2–4 channels) |
Pmin to +53 dBmV (all modulations) Pmin to +48 dBmV, 1280 kHz modulation rate Pmin to +42 dBmV, 2560 kHz modulation rate Pmin to +23 dBmV, 5120 kHz modulation rate |
| Output Impedance | 75 Ω |
| Frequency Range | DOCSIS and EuroDOCSIS: 5 to 65 MHz (edge to edge) |
| Compatibility |
PC: 200 MHz Pentium or later; Windows Vista™, 2000, XP or Linux Mac: Power PC or later, OS 9 or higher UNIX: Ethernet connection Home Networking: Ethernet router or wireless access point |
| Network | |
| Gateway |
DHCP, NAT, VPN tunneling; static/dynamic routing (RIPv1, RIPv2); SPI firewall with DoS protection, packet & URL filtering; ALG suite; UPnP IGD 1.0; L2TPv3; L2VPN; eRouter |
| Wi-Fi LAN | 802.11a/b/g/n Wi-Fi; WDS bridging; 802.11e WMM admission control; QoS |
| Wi-Fi Security | WEP 64/128, WPA, WPA2, TKIP, AES; 802.11x (pre-authentication) |
| Wi-Fi Pairing | WPS for compatible devices |
| Regulatory Domains | U.S., Canada, ETSI, World |
| Receiver Sensitivity |
> –80 dBm at 11 Mbps > –74 dBm at 54 Mbps |
