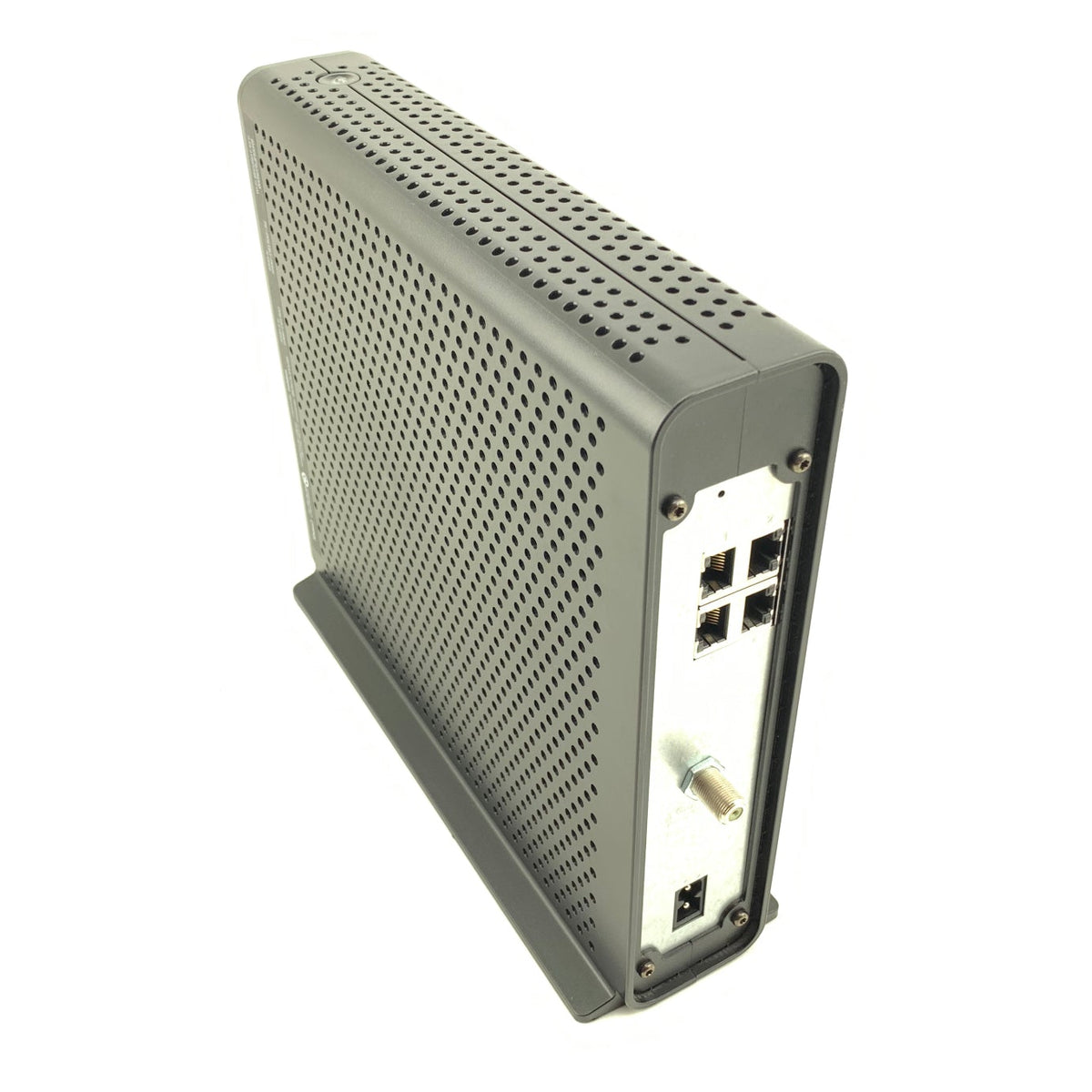

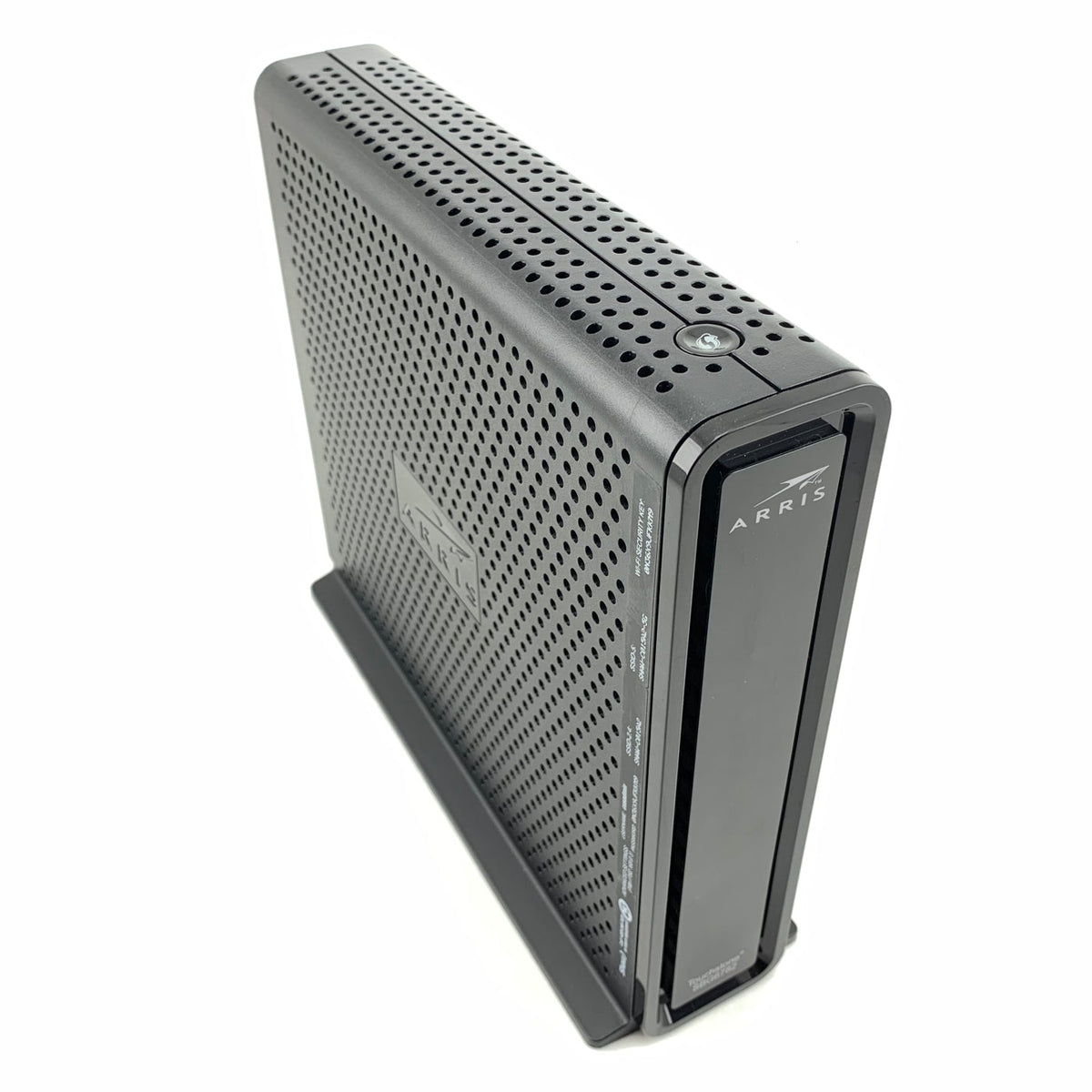

SURFboard SBG6782-HH Series WiFi Cable Modem Gateway

Motorola · SBG6782-HH

Condition

Refurbished

Feature Highlights

DOCSIS 3.0 WAN Access
8x4 Channel Bonding
Dual-Band WiFi 4 (N)
450 Mbps on 5Ghz 3x3 MIMO
450 Mbps on 2.4Ghz 3x3 MIMO
4 x Gigabit Ethernet LAN

1-Year Warranty

30-Day Returns

Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203

GENERAL SPECIFICATIONS
Cable Interface	F-Connector, female 75 Ω
Network Interface	Four one-gigabit (10/100/1000) Ethernet ports
2.4 GHz Wi-Fi Interface	802.11n Wi-Fi (also certified for 802.11 b/g)
5 GHz Wi-Fi Interface	802.11n Wi-Fi (also certified for 802.11 a)
Dimensions	8.8 (h) × 2.1 (w) × 10.1 (l) in (224 × 54 × 256.5 mm)
Regulatory	RoHS compliant, FCC, UL listed (U.S. and Canada), Industry Canada, EnergyStar, VCCI, JATE
DOCSIS 3.0	Bonding capability of 8 downstreams and 4 upstreams
MoCA 1.1	Shared cable interface F-Connector
Input Power
Global	~100 – 240 V, 50/60 Hz
Internal Power Supply	50W/12Vdc
Power Management	802.11e WMM power save / U-APSD, 802.3az EEE
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	−22°F to 158°F (−30°C to 70°C)
Operating Humidity	5 to 95% R.H. (non-condensing)
DOCSIS Downstream
Modulation	64 or 256 QAM
Bandwidth	Full bandwidth capture window 108 MHz–1002 MHz
Maximum PHY Rate	DOCSIS: 343.072 Mbps (8 ch) / 42.884 (single) EuroDOCSIS: 444.928 Mbps (8 ch) / 55.616 (single)
Symbol Rate	64 QAM 5.057 Msym/s; 256 QAM 5.361 Msym/s
Operating Level Range	−15 to +15 dBmV
Frequency Range	108 – 1002 MHz (edge to edge)
Frequency Plans	Annex A, Annex B
Security	DOCSIS 3.0 Security (BPI+, EAE, SSD)
Provisioning	IPv4, IPv6 (dual stack), DS Lite
DOCSIS Upstream
Modulation	QPSK and 8, 16, 32, 64, 128, 256 QAM
Maximum PHY Rate @ 25.6 MHz	122.8 Mbps
Maximum PHY Rate @ 6.4 MHz	30.72 Mbps
Channel Width	200 kHz, 400 kHz, 800 kHz, 1.6 MHz, 3.2 MHz, 6.4 MHz
Symbol Rates	160, 320, 640, 1280, 2560, 5120 ksym/s
Frequency Range	5–42 MHz (edge to edge)
Network
Gateway	DHCP, NAT, DNS, VPN tunneling, GRE tunneling, RIP v1/v2, SPI firewall, ALG support, UPnP IGD 1.0, L2TPv2/L2TPv3, RIPv2, DLNA
WLAN	802.11a/b/g/n Wi-Fi, WDS bridging, 802.11e WMM
WLAN SSIDs	Up to 8 per radio
WLAN Speed	Up to 450 Mbps
Radios	5 GHz, +23 dBm HPA; 3×3 MIMO antenna array 2.4 GHz, +26 dBm HPA
MoCA	MoCA 1.1, DLNA, 16 nodes, 175 Mbps MAC throughput
Security	WPA2, WPA-PSK, WEP 64/128, WPA, TKIP, AES, 802.1x
Wi-Fi Pairing	WPS 2.0
Regulatory Domains	US, Canada, ETSI, World
Management and Configuration
GUI	English, HTML based GUI, Google Translate for easy translation
Memory
RAM	128 MB DDR3
Flash	32 MB
