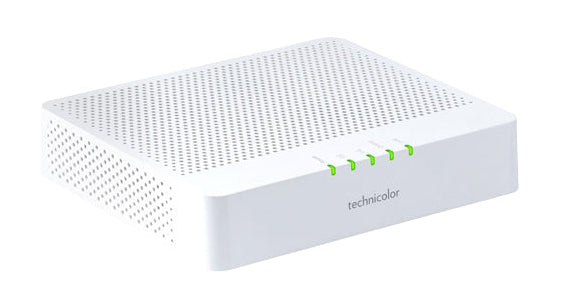

TC4400 Ultra-Broadband Cable Modem for above Gigabit speeds

Technicolor · TC4400

Condition

Refurbished

Feature Highlights

DOCSIS 3.1 / DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access
2x2 OFDM(A) Channels
32x8 Channel Bonding
2 x Gigabit Ethernet LAN

1-Year Warranty

30-Day Returns

Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203

The TC4400 matches perfectly with the requirements of cable operators willing to propose ultimate Broadband access to their customers. The TC4400 cable modem is fully compliant with the latest DOCSIS 3.1 specification as published by CableLabs® and is capable of delivering downstream cable speeds of up to 3.6 Gbps by using 2 Orthogonal Frequency-Division Multiplexing (OFDM) downstream channels (and up to 5 Gbps in case of 32 Single Carrier QAM) and up to 1.5 Gbps upstream by using 2 Orthogonal Frequency-Division Multiple Access (OFDMA) upstream channels.

This enhanced and superior performance allows Cable Operators to propose multi-Gigabit data services to their customers through various applications, from IP connectivity to ultra high speed internet access and gaming.

RF Downstream
Downstream modulation	64 QAM, 256 QAM, 1024 QAM, 2048 QAM, 4096 QAM
Downstream frequency range, software selectable	DOCSIS 3.0: 54 – 1002 MHz DOCSIS 3.0: 108 – 1002 MHz EuroDOCSIS 3.0: 108 – 1218 MHz EuroDOCSIS 3.0: 258 – 1218 MHz
Number of downstream channels	DOCSIS 3.1: 2 OFDM (Euro)DOCSIS 3.0: Up to 32 bonded
Maximum downstream rates	DOCSIS 3.1: Up to 4 Gbps DOCSIS 3.1: Up to 5 Gbps with 32 SC-QAM (Effective local network download throughput is 2 × 1 Gbps since limited to the maximum throughput of the available Ethernet ports.) DOCSIS 3.0: 1372 Mbps (theoretical, 32 × 42.88 Mbps) EuroDOCSIS 3.0: 1780 Mbps (theoretical, 32 × 55.62 Mbps)
Capture windows	1.2 GHz full band capture
Channel bandwidth	DOCSIS 3.0: 6 MHz EuroDOCSIS 3.0: 8 MHz DOCSIS 3.1: max. 192 MHz bands
Input signal level range	–15 dBmV / +15 dBmV
Input impedance	75 Ohm
RF Upstream
Upstream Modulation	QPSK 8 QAM, 16 QAM, 32 QAM, 64 QAM, 128 QAM
Upstream Frequency Range (software selectable)	DOCSIS 3.0: 5–42 MHz, 5–85 MHz EuroDOCSIS 3.0: 5–65 MHz, 5–204 MHz
Number of Upstream Channels	DOCSIS 3.1: 2 OFDMA (Euro)DOCSIS 3.0: Up to 8 bonded
Maximum Upstream Rates	DOCSIS 3.1: Up to 1.5 Gbps (Euro)DOCSIS 3.0: 262 Mbps (theoretical, 8 × 32.78 Mbps)
Channel Bandwidth	DOCSIS 3.1: 96 MHz (Euro)DOCSIS 3.0: 200, 400, 800 kHz; 1.6, 3.2, 6.4 MHz
Output Impedance	75 Ohm
Hardware

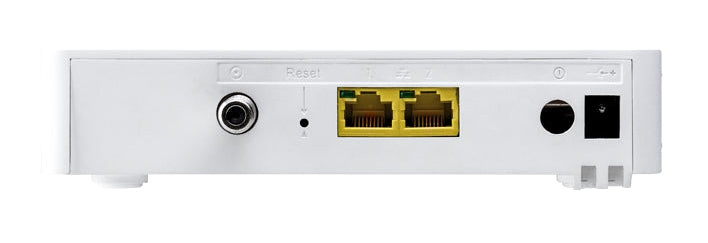

Interfaces WAN	1 F-type RF connector, external threaded
Interfaces LAN	2× 10/100/1000 Base-T Ethernet ports
Buttons	Reset button Power button (depending on model)
Power Input	DC jack
Power Supply	12 VDC external PSU
AC Voltage	120–240 VAC, 50–60 Hz (switched-mode PSU)
Dimensions	163 × 53 × 145 mm (6.42 × 2.09 × 5.71 in.)
Operating Temperature	0–40 °C (32–104 °F)
Operating Humidity	5–95 % HR non-condensing
Storage Temperature	–20–70 °C (–4–158 °F)
