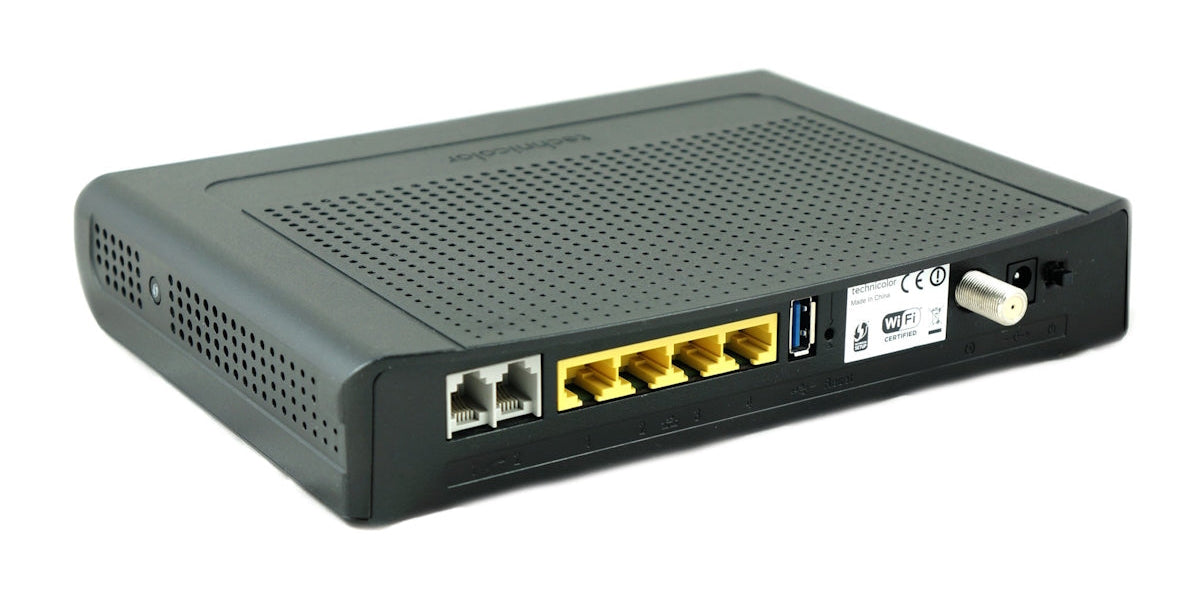

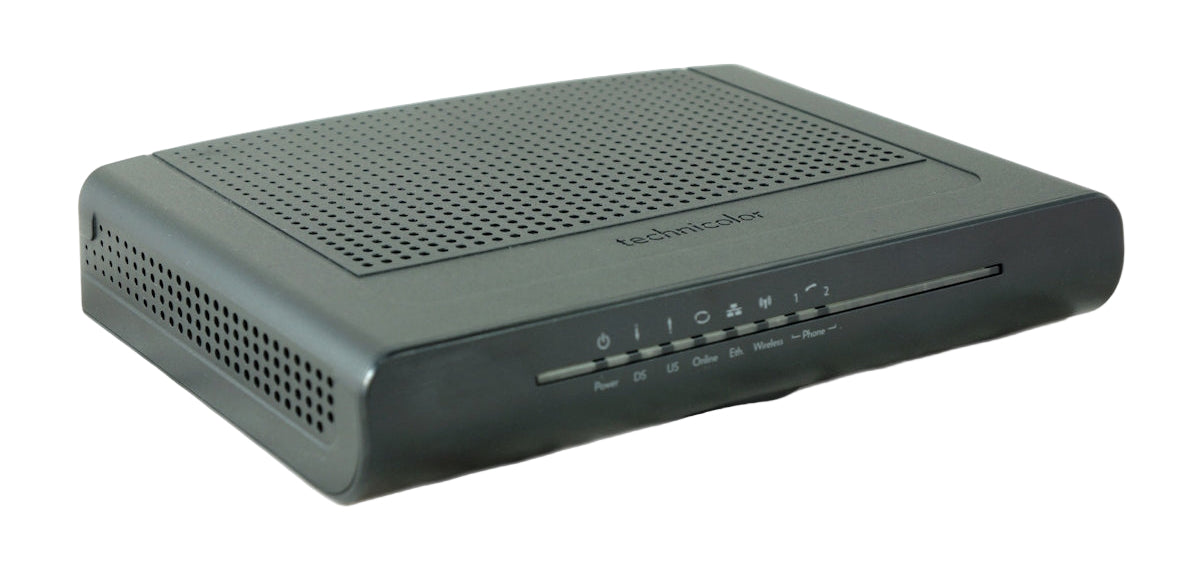

TC7200 MediaAccess Wireless Voice Cable Gateway

Technicolor · TC7200

Condition

Refurbished

Feature Highlights

DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access
8x4 Channel Bonding
Dual-Band WiFi 4 (N)
300 Mbps on 5Ghz 2x2 MIMO
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone

1-Year Warranty

30-Day Returns

Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203

As cable standards keep evolving, Technicolor presents the TC7200, a EuroDOCSIS 3.0 wireless Embedded Multimedia Terminal Adapter (EMTA) gateway. With this new offer Technicolor provides cable operators with high-bandwidth data transmission and enables them to stay ahead of content delivery with gaming and video over IP.

This generation of high-speed data service solutions offers up to eight bonded downstream channels and four bonded upstream channels, allowing operators to provide their customers with four data channels and four channels for dedicated IPTV services.

The TC7200 also provides a powerful platform to port new applications such as DLNA media server and hard disk sharing.

Receiver Specifications
Downstream Modulation	QAM 64/256
Downstream Frequency Range	108 - 1002 MHz
Maximum Downstream Data Range	440 Mbps (theoretical, 55.61 Mbps × 8 channels)
Capture Windows	Full Band Capture: possibility to have any of the 8 downstream channels over the full EuroDOCSIS spectrum
Number of Downstream Channels	Up to 8
Input Signal Level Range	−15 dBmV / +15 dBmV
Input Impedance	75 Ohm
Transmitter Specifications
Upstream Modulation	QPSK and 8, 16, 32, 64 and 128 QAM
Upstream Frequency Range	5 - 65 MHz
Maximum Upstream Data Range	131 Mbps (theoretical, 32.78 Mbps × 4 channels)
Number of Upstream Channels	4
Channel Bandwidth	200, 400 and 800 kHz, 1.6, 3.2 and 6.4 MHz
Output Impedance	75 Ohm
Wireless Specifications*
Features	Wi-Fi IEEE 802.11b/g/n access point; Wi-Fi certified Full dual concurrent Wi-Fi with 2.4 GHz (2×2) and 5.0 GHz (2×2) support WPA(2)-personal support of Temporal Key integrity Protocol (TKIP), IEEE802.1x port-based authentication with RADIUS client Wi-Fi Protected Setup (WPS) Up to 16 virtual SSID APs support Security and service segregation per SSID Up to 250 Mbps data rates 4 internal antennas (external antennas optional)
Hardware Specifications
Interfaces WAN	1 RF connector F-Type
Interfaces LAN	4-port auto-MDI/MDI-X 10/100/1000 Base-T port Ethernet LAN switch (RJ-45) 2 FXS POTS ports (RJ-11) 1 USB 2.0 master port Wi-Fi IEEE 802.11b/g/n on board
Interfaces Other	Power button WPS button Reset button
Dimensions	220 × 165 × 42 mm (8.7 × 6.5 × 1.6 in.)
Power Supply	120–240 VAC, 50–60 Hz
Operating Temperature	0° to 40°C (32° – 104°F)
Operating Humidity	20% to 90% non-condensing
Storage Temperature	-20° to 70°C (-4° – 158°F)

TC7200 MediaAccess Wireless Voice Cable Gateway

Certified Pre-Owned

Unused Pre-Owned
