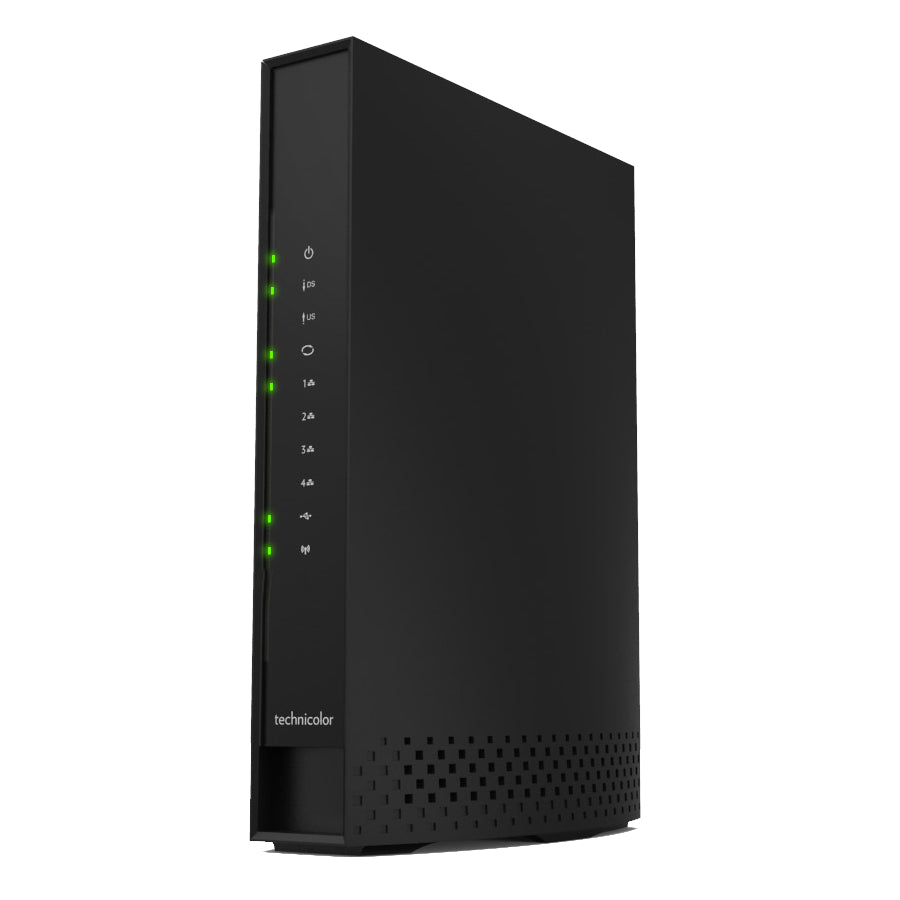

TC7210.d MediaAccess Wireless .11ac Cable Gateway

Technicolor · TC7210.d

Condition

Refurbished

Feature Highlights

DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access
16x4 Channel Bonding
Dual-Band WiFi 5 (AC)
1.300 Mbps on 5Ghz 3x3 MIMO
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN

1-Year Warranty

30-Day Returns

Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203

The TC7210.d is one of the first dual band concurrent Wi‑Fi ultra broadband gateways to feature the next-generation IEEE 802.11ac wireless standard for the 5 GHz band. With its optimized antenna configuration, this enhanced wireless solution enables even higher throughput and better coverage over the much less crowded 5 GHz radio, for real-time content delivery. Simultaneously, it guarantees uninterrupted transmission of data services over IEEE 802.11n using the 2.4 GHz band

Receiver Specifications
Downstream Modulation	QAM 64/256
Downstream Frequency Range	108 – 1002 MHz
Maximum Downstream Data Range	880 Mbps (theoretical) 55.61 Mbps × 16 channels
Capture Windows	Full Band Capture: possibility to have any of the 16 downstream channels over the full EuroDOCSIS® spectrum
Number of Downstream Channels	Up to 16
Input Signal Level Range	−15 dBmV / +15 dBmV
Input Impedance	75 Ohm
Transmitter Specifications
Upstream Modulation	QPSK, 8, 16, 32, 64 and 128 QAM
Upstream Frequency Range	5 – 85 MHz
Maximum Upstream Data Range	131 Mbps (theoretical) 32.78 Mbps × 4 channels
Number of Upstream Channels	4
Channel Bandwidth	200, 400 and 800 kHz; 1.6, 3.2 and 6.4 MHz
Output Impedance	75 Ohm
Wireless Specifications
Wireless Features	Full dual band concurrent Wi-Fi access points, Wi-Fi certified 2.4 GHz: 2×2 IEEE 802.11n AP 5.0 GHz: 3×3 IEEE 802.11ac AP Standard Wi-Fi power WPA(2)-Personal support of Temporal Key Integrity Protocol (TKIP) IEEE 802.1x port-based authentication with RADIUS client Wi-Fi Protected Setup (WPS) Up to 16 BSSID (virtual AP) support Security and service segregation per SSID Wi-Fi Hotspot functionality with SoftGRE standard Dynamic rate switching for optimal wireless rates 5 internal antennas
Hardware Specifications
Interfaces WAN	1 RF connector F-Type
Interfaces LAN	4-port auto-MDI/MDI-X 10/100/1000 Base-T Ethernet LAN switch (RJ-45) Wi-Fi IEEE 802.11n 2.4 GHz on-board Wi-Fi IEEE 802.11ac 5.0 GHz on-board 2 FXS POTS ports (RJ-11) 1 USB 2.0 master port
Interfaces Other	Power button WPS button Reset button
Dimensions	218 × 63 × 160 mm (8.6 × 2.5 × 6.3 in)
Power Supply	120–240 VAC, 50–60 Hz
Operating Temperature	0° to 40° C (32° to 104° F)
Operating Humidity	20% to 90% non-condensing
Storage Temperature	–20° to 70° C (–4° to 158° F)
