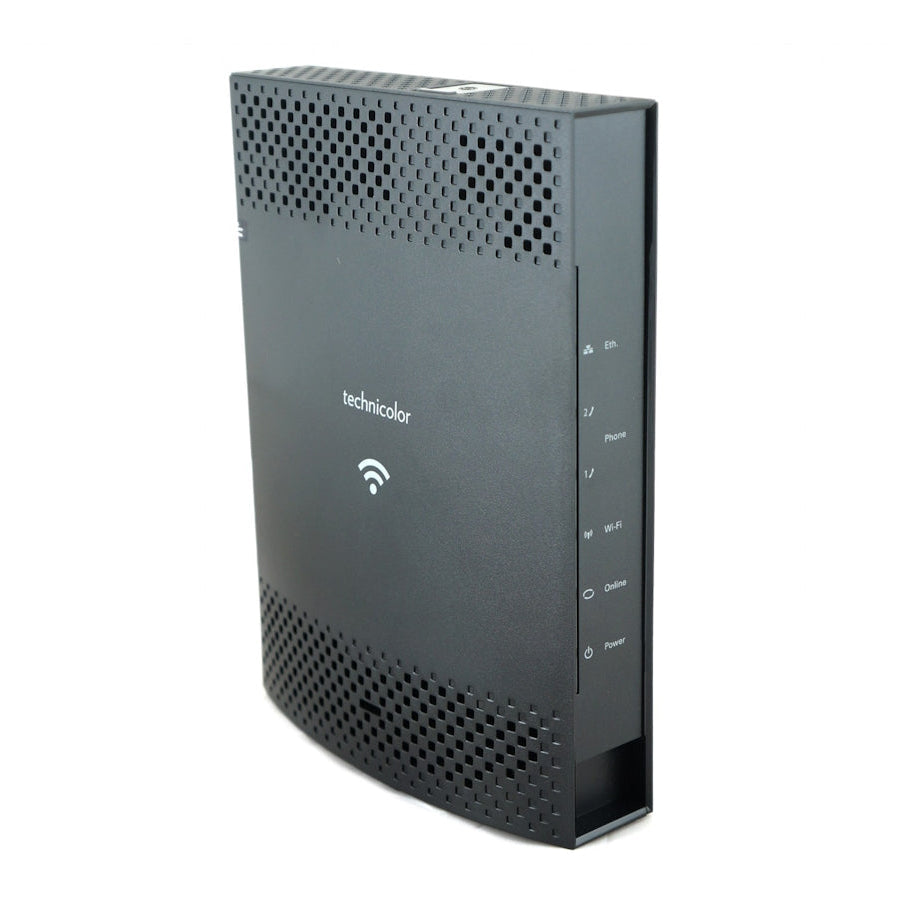

TC7230 MediaAccess Gigabit-Class Wireless .11ac Voice Cable Gateway

Technicolor · TC7230

Feature Highlights

DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access
24x8 Channel Bonding
Dual-Band WiFi 5 (AC)
1300 Mbps on 5Ghz 3x3 MIMO
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone
1-Year Warranty
30-Day Returns
Essential Support

Please feel free to reach out to us with any questions.

hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204

Description
Technical Specifications

Featuring next-generation IEEE  802.11ac Wi-Fi, this enhanced wireless solution with beamforming technology enables even higher throughput and better coverage over the much less crowded 5GHz radio, for real-time content delivery.

As a dual band concurrent wireless gateway, the TC7230 also guarantees uninterrupted transmission of data services over IEEE  802.11n using the 2.4  GHz band.

Receiver Specifications
Downstream Modulation QAM 64/256
Downstream Frequency Range 108 – 1002 MHz
Maximum Downstream Data Range 1.2 Gbps (theoretical)
(55.61 Mbps × 24 channels)
Capture Windows Full Band Capture: supports any of the 16 downstream channels over the full EuroDOCSIS spectrum
Number of Downstream Channels Up to 24
Input Signal Level Range -15 dBmV / +15 dBmV
Input Impedance 75 Ohm
Transmitter Specifications
Upstream Modulation QPSK
8, 16, 32, 64 and 128 QAM
Upstream Frequency Range 5 – 85 MHz
Maximum Upstream Data Range 240 Mbps (theoretical)
(32.78 Mbps × 8 channels)
Number of Upstream Channels 8
Channel Bandwidth 200, 400 and 800 kHz
1.6, 3.2 and 6.4 MHz
Output Impedance 75 Ohm
Wireless Specifications
Wi-Fi Access Points
  • Full dual band concurrent Wi-Fi access points, Wi-Fi certified
  • 2.4 GHz (2x2) IEEE 802.11n AP
  • 5.0 GHz (3x3) IEEE 802.11ac AP with IEEE 802.11ac compliant transmit beamforming
WPS
  • Wi-Fi Protected Setup (WPS)
Wi-Fi Security
  • IEEE 802.1x port-based authentication with RADIUS client
  • WPA2-Personal / WPA-Personal
  • WEP
BSSID Support
  • Up to 8 BSSIDs (virtual AP) support
Hotspot
  • Wi-Fi Hotspot functionality with SoftGRE standard
2x2 MIMO 2.4 GHz Features
  • SGi
  • STBC
  • 20/40 MHz coexistence
3x3 MIMO 5 GHz Features
  • SGi
  • STBC
  • 20/40/80 MHz modes
Dynamic Rate Switching
  • Dynamic rates switching for optimal wireless rates
Hardware Specifications

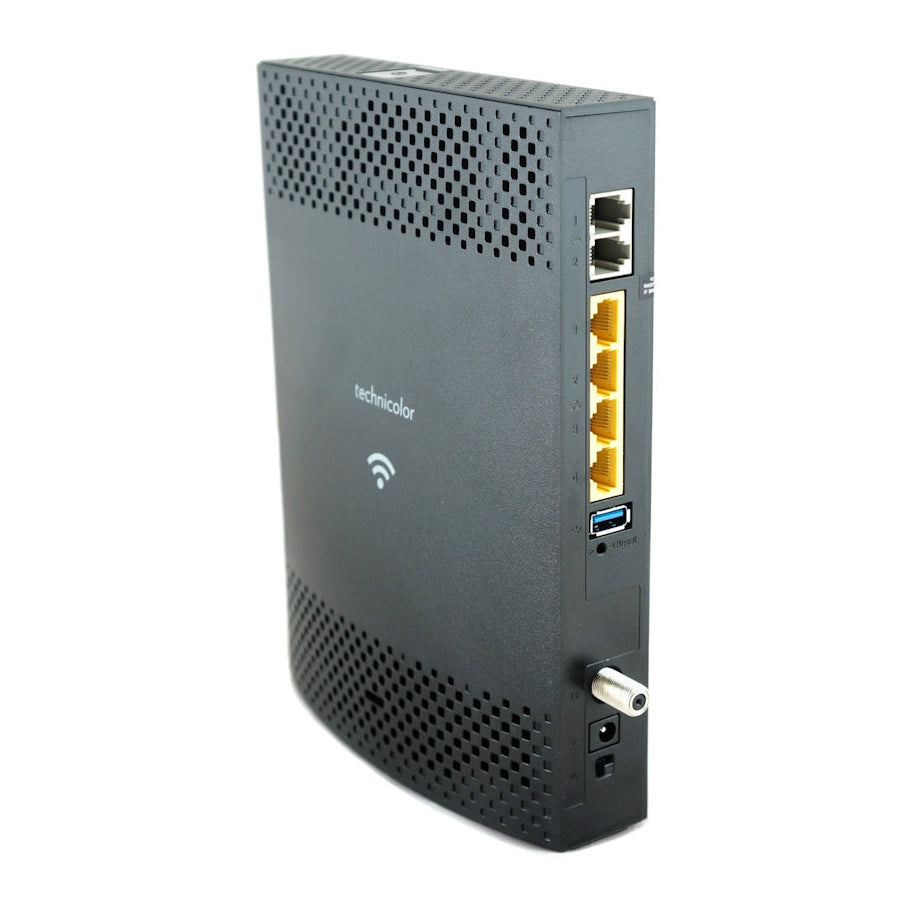

Interfaces WAN
  • 1 RF connector F-Type
Interfaces LAN
  • 4-port auto-MDI/MDIX 10/100/1000 Base-T Ethernet LAN switch (RJ-45)
  • Wi-Fi IEEE 802.11n 2.4 GHz on-board
  • Wi-Fi IEEE 802.11ac 5.0 GHz on-board
  • 2 FXS POTS ports (RJ-11)
  • 1 USB 2.0 master port
Interfaces Other
  • Power button
  • WPS button
  • Reset button
Dimensions 218 × 63 × 160 mm (8.6 × 2.5 × 6.3 in)
Power Supply 120–240 VAC, 50–60 Hz
Operating Temperature 0° to 40° C (32°–104° F)
Operating Humidity 20% to 90% non-condensing
Storage Temperature -20° to 70° C (-4°–158° F)
