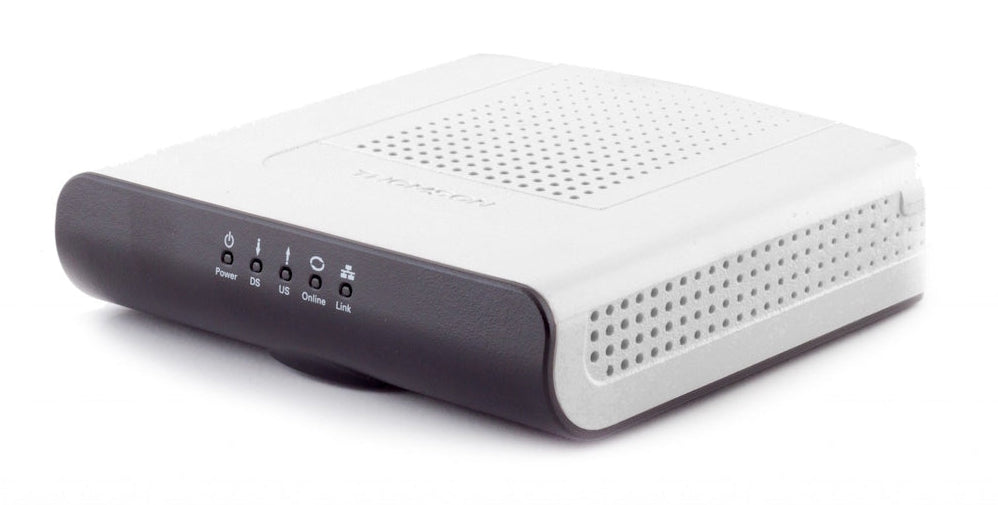

TCM471 DOCSIS/EuroDOCSIS 3 Cable Modem
Feature Highlights
DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access8x4 Channel Bonding
1 x Gigabit Ethernet LAN
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
With the evolution of cable standards, DOCSIS/EuroDOCSIS 3.0 will prove decisive for cable operators wishing to provide high bandwidth data delivery and to stay ahead of the content with game and video over IP delivery. With this second generation of High Speed Data Services Solution, Technicolor provides up to eight (8) bonded downstream channels and four (4) bonded upstream channels, with a design backward-compatible for use as a single-channel with older networks without any service interruption. The new TCM471 comes in the sleek attractive design Technicolor has adopted as the new «family look».
| Receiver | |
|---|---|
| Downstream Modulation | QAM 64/256 |
| Downstream Frequency Range | 88–1002 MHz |
| Maximum Downstream Data Range | 440 Mbps (theoretical) (55.61 Mbps × 8 channels) |
| Capture Windows | 96 MHz capture window with integrated dual tuner solution |
| Number of Downstreams | Up to 8 |
| Input Signal Level Range |
|
| Input Impedance | 75 Ohm |
| Transmitter | |
| Upstream Modulation | QPSK and 8, 16, 32, 64 and 128 QAM |
| Number of Upstreams | 4 |
| Upstream Frequency Range | 5–65 MHz |
| Maximum Upstream Data Range | 131 Mbps (theoretical) (32.78 Mbps × 4 channels) |
| Channel Bandwidth | 200, 400 and 800 kHz; 1.6, 3.2 and 6.4 MHz |
| Output Impedance | 75 Ohm |
| Output Signal Level Range |
A-TDMA:
|

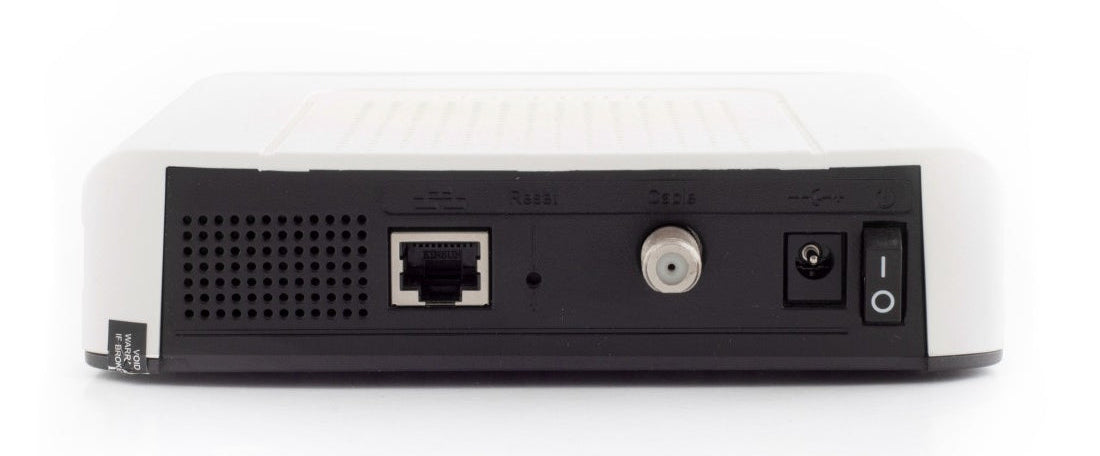

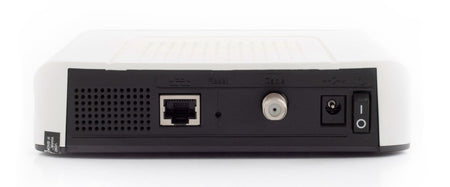

| Interfaces / Physical | |
| Giga Ethernet |
1 × RJ45 10/100/1000 Base-T auto-detect |
| RF Connector | 1 × F-Type |
| Buttons | Reset, On/Off |
| LEDs | Power, DS, US, Online, Link |
| Power Supply | External, 230 VAC 50 Hz |
| Operating Temperature | 0° to 40°C |
| Operating Humidity | 20% to 90% non-condensing |
| Storage Temperature | −20° to 70°C |
| Safety | CE and CB |
