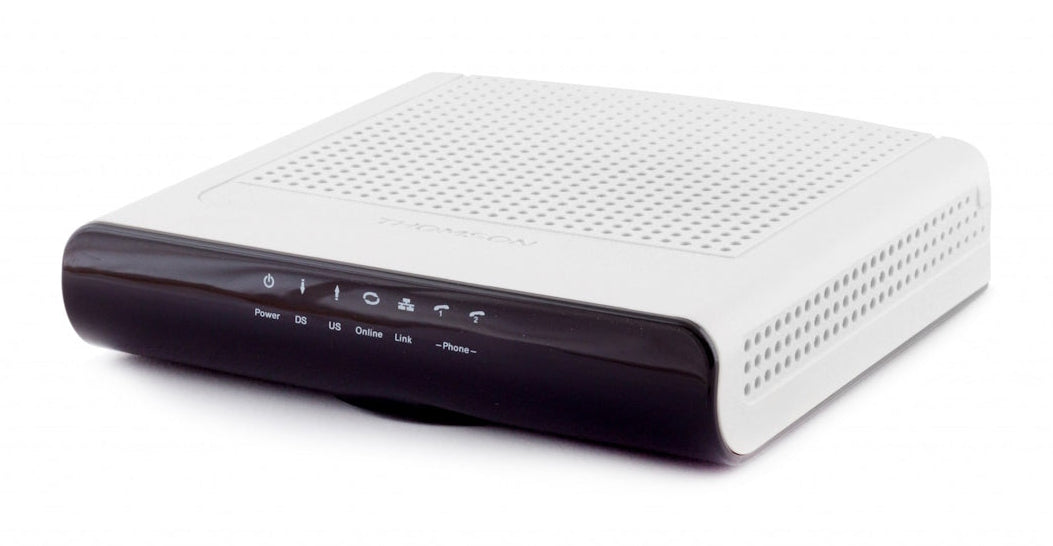

THG570 DOCSIS/EuroDOCSIS 3 VoIP Cable Modem
Feature Highlights
DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access8x4 Channel Bonding
1 x Gigabit Ethernet LAN
2 x FXS Phone
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
With the evolution of cable standards, DOCSIS/EuroDOCSIS 3.0 will prove decisive for cable operators wishing to provide high bandwidth data delivery and to stay ahead of the content with game and video over IP delivery. With this new generation of High Speed Data Services Solution, Technicolor introduces up to eight (8) bonded downstream channels and four (4) bonded upstream channels, with a design backward-compatible for use as a single-channel with DOCSIS/EuroDOCSIS 2.0 and older networks without any service interruption. Thanks to the integrated dual split tuner solution, the operator will benefit from flexibility in channel allocation: to ease the management when the channel frequency plan is loaded or to separate data from other services such as video over IP. The new THG570 comes in the sleek attractive design Technicolor has adopted as the new «family look».
| Receiver | |
|---|---|
| Downstream Modulation | QAM 64 / 256 |
| Downstream Frequency Range | 88–1002 MHz |
| Maximum Downstream Data Range | 440 Mbps (theoretical); 55.61 Mbps × 8 channels |
| Capture Windows | 64 MHz capture window split into two 32 MHz windows (integrated dual-tuner) |
| Number of Downstreams | Up to 8 |
| Input Signal Level Range |
|
| Input Impedance | 75 Ω |
| Transmitter | |
| Upstream Modulation | QPSK; 8, 16, 32, 64, 128 QAM |
| Number of Upstreams | 4 |
| Upstream Frequency Range | 5–65 MHz |
| Maximum Upstream Data Range | 131 Mbps (theoretical); 32.78 Mbps × 4 channels |
| Channel Bandwidth | 200, 400, 800 kHz; 1.6, 3.2, 6.4 MHz |
| Output Impedance | 75 Ω |

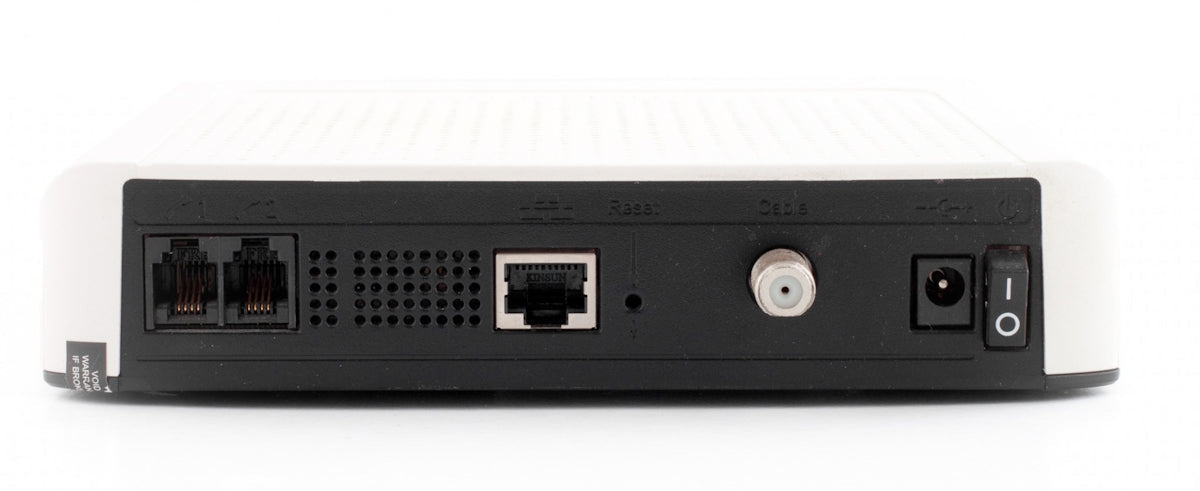

| Interfaces / Physical | |
| Giga Ethernet |
|
| Telephone Line | 2 × RJ11 |
| RF Connector | 1 × F-Type |
| Buttons | Reset, On/Off |
| LEDs | Power, DS, US, Online, Link, Tel1, Tel2 |
| Power Supply | External, 230 VAC 50 Hz |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 20% to 90% non-condensing |
| Storage Temperature | –20 °C to 70 °C |
| Safety | CE and CB |
