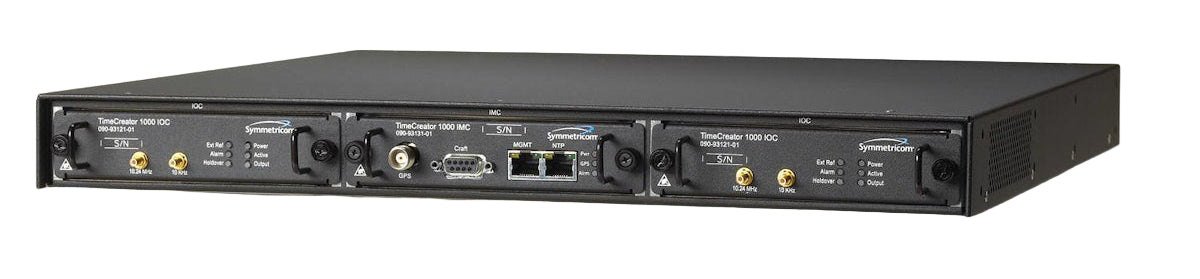

TimeCreator 1000 DTI Server
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
The TimeCreator™ 1000 DTI Server is designed to deliver the most reliable and precise time and frequency synchronization ever designed for communication networks. The TimeCreator 1000 enables operators to deploy with flexibility to balance economics, scalability, functionality and carrier class reliability. TimeCreator 1000 is a compliant* DOCSIS Timing Interface (DTI) Server with optional GPS traceability, redundant clock cards, redundant power supplies and an NTP Server option. TimeCreator 1000 is a fundamental part of a cable operators headend or hub network deploying M-CMTS, DOCSIS 3.0 or Business Services over DOCSIS.
| PHYSICAL SPECIFICATIONS | |
|---|---|
| Dimensions | 1RU high x 19" W x 20" D |
| Weight | 11 lbs (4.6 Kg) |
| POWER REQUIREMENTS | |
| AC Power module | 100-240V AC, 50/60Hz |
| DC Power module | -48V DC |
| Power Supply | Optional power supply redundancy |
| OPERATING ENVIRONMENT | |
| Temperature | 0°C to 50°C, 32°F to 104°F |
| Humidity | 10% to 90% RH non-condensing |
| STORAGE ENVIRONMENT | |
| Temperature | -25°C to 70°C, 13°F to 158°F |
| Humidity | 5% to 90% RH non-condensing |
| SAFETY | |
| Safety Standards | UL/CSA 60950-1, EN60950-1, IEC60950-1, CE Mark, NRTL |
| EMC | |
| EMC Standards | FCC Part 15, ICES-003 Class B, EN300-386 v1.3.3, CE Mark |
| RoHS | |
| RoHS Compliance | CE Mark |
| DTI SERVER FEATURES | |
| DTI Ports | 10+2 |
| Clock Card | Optional clock card redundancy |
| Switching | Hitless switching when configured for redundancy |
| GPS Option | Enable Stratum 1 traceability and global timestamps |
| Services | Business services capable (with GPS) |
| Holdover | 24 Hour holdover when using GPS |
| Server Mode | Root and slave DTI server capable |
| Port Monitoring | Per port performance monitoring |
| Calibration | Per port delay and path calibration |
| INPUTS | |
| GPS | Two-way timing antenna |
| DTI Client Ports | 2 dual mode DTI client ports to support slave server mode |
| BITS Ports | Reserved for future use |
| OUTPUTS | |
| DTI Client Ports | 10 |
| Dual Mode DTI Client Ports | 2 |
| Master Frequency | 10.24 MHz |
| Frame Clock | 10KHz |
| NTP Server Port | Ethernet port |
| MANAGEMENT FEATURES | |
| SNMP Support | SNMP v2c & v3 |
| Management Access | Local and remote management |
| Local Management | Consol port |
| Remote Access | Telnet & SSH support |
| Firmware Upgrade | Upgradeable via SFTP |
| Indicators | LED status & alarm indicators |
| Logging | Event logging |
| Authentication | Radius and TACACS+ |
TC1000
