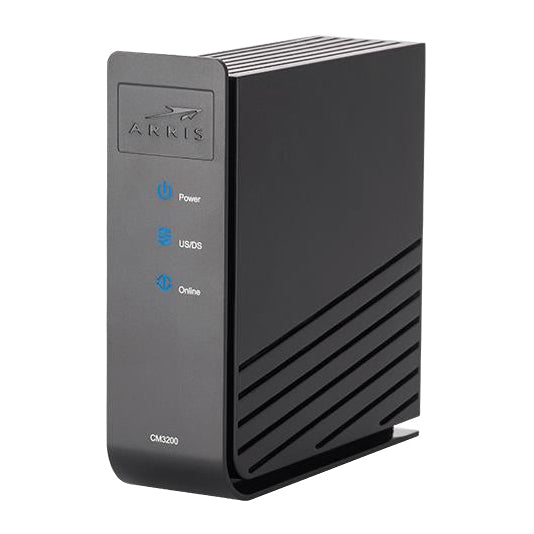

Touchstone CM3200B 32x8 Cable Modem 85MHz Upstream
Feature Highlights
DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access32x8 Channel Bonding
1 x Gigabit Ethernet LAN
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
The Touchstone DOCSIS 3.0 32x8 Cable Modem CM3200 delivers a full Gigabit per second of raw speed, ushering in a new era of Internet access! The CM3200 is well-suited to the home user – offering the speeds to stream multimedia content to multiple devices and the responsiveness to keep you “in the game” for online gaming. However, the CM3200 is also a serious commercial solution, ready to meet the challenging demands of small business with its Business Services over DOCSIS (BSoD) support. So, whether you’re at work or at play, the CM3200 is there to make sure your experience is ahead of the rest.
| Physical | |
|---|---|
| Operating Temperature (°F / °C) | 32 to 104 (0 to 40) |
| Operating Relative Humidity (Min–Max) | 5–95% (non-condensing) |
| Storage Temperature °F (°C) | -40 to 158 (-40 to 70) |
| Dimensions (H × W × D) in., (cm) | 5.9 × 5.3 × 1.8 (15.0 × 13.5 × 4.6) Excludes F-connector |
| Weight lbs (kg) | 0.77 (0.35) |
| Diagnostic LEDs | Power, US/DS, Online, LAN |

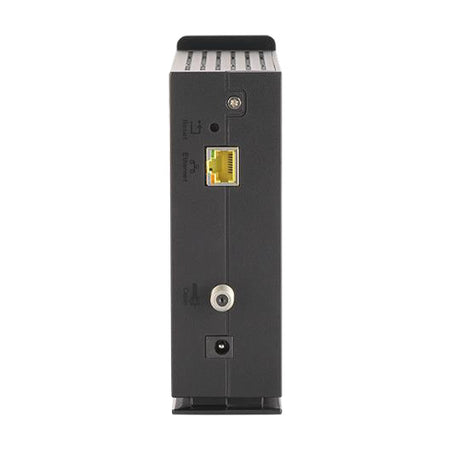

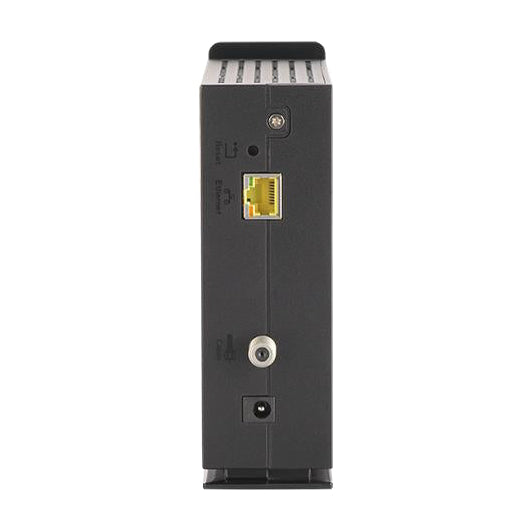

| Interfaces | |
| RF Interface | External 75Ω ‘F’ type connector |
| Data Interface | 10/100/1000 Base-T Ethernet RJ-45 |
| Power Interface (nominal) | Adapter input = 115–240 VAC, 50/60 Hz Adapter output (to CM3200) = 12V/2A |
| RF Downstream | |
| Frequency Range (MHz) (edge-to-edge) | CM3200A/NA: 88–1002 CM3200B/CE-85: 108–1002 |
| Bonded Channels | Up to 32 |
| Tuner Configuration | Full capture tuning range |
| Modulation (QAM) | 64 or 256 |
| Data Rate (Mbps, theoretical) | Up to 1000 (limited by GigE interface) |
| RF Input Sensitivity Level (dBmV) | -15 to +15 |
| Carrier Bandwidth (MHz) | 8 (Annex A) or 6 (Annex B) |
| MoCA® Immunity Filter | Embedded |
| RF Upstream | |
| Frequency Range (MHz) | CM3200A/NA: 5–42 CM3200B/CE-85: 5–85 |
| Bonded Channels | Up to 8 |
| Modulation | QPSK, 8QAM, 16QAM, 32QAM, 64QAM, 128QAM (S-CDMA only) |
| Modulation Bandwidth (kHz) | TDMA: 200, 400, 800, 1600, 3200, 6400 S-CDMA: 1600, 3200, 6400 |
| Data Rate (Mbps, Theoretical) | Up to 240 |
| RF Output Level (dBmV – 1 channel) |
TDMA: +17–61 (QPSK); +17–58 (8QAM, 16QAM); +17–57 (32QAM, 64QAM) S-CDMA: +17 to +56 (all modulations) Note 1: ATDMA max output reduced 3 dB when transmitting 2 channels (6 dB when transmitting 3+ channels). Note 2: S-CDMA max output reduced 3 dB when transmitting 2+ channels. |
| Automatic Level Adjust | Yes |
| Frequency Stability (kHz) | ±5 |
| Output Impedance (Ω) | 75 |
CM3200B/CE-85
