Touchstone TG1652S 16x4 Cable Gateway with 802.11ac WiFi 85MHz Upstream
Feature Highlights
DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access16x4 Channel Bonding
Dual-Band WiFi 5 (AC)
866 Mbps on 5Ghz 2x2 MIMO
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Operators are wanting to push the limits on DOCSIS/EuroDOCSIS 3.0 performance and the user experience delivered to the customer. The TG1652 with its superior 802.11n and 802.11ac Dual Band Wireless radios, Ethernet and USB interfaces can deliver this performance while also offering improvements in home coverage above that of other models. This feature-packed unit is intended to serve as the hub of the subscribers network, connecting all IP capable devices (Internet, Data, Voice and Video) throughout the customer’s premises.
Residential gateway support has always been a concern of the operator. The TG1652 distinguishes itself with capabilities to minimize these support needs. Multiple provisioning methods (SNMP, Configuration File, Remote WebGUI access, TFTP, and TR-069/181) allow custom designed setups to be applied to monitor the end user more efficiently. Multiple remote access levels (User and MSO) also allow more ease and flexibility for manual configuration and control.
| Physical | |
|---|---|
| Operating Temperature °C | 0 to 40 |
| Operating Relative Humidity | 5–85% (Non condensing) |
| Storage Temperature °C | -40 to 70 |
| Dimensions (H × W × D) mm |
235 × 190 × 58 (excludes “F” connector) — TG1652A 260 × 230 × 58 (excludes “F” connector) — TG1652G |
| Weight | 0.7 kg (TG1652A/S), 0.8 kg (TG1652G no battery) |

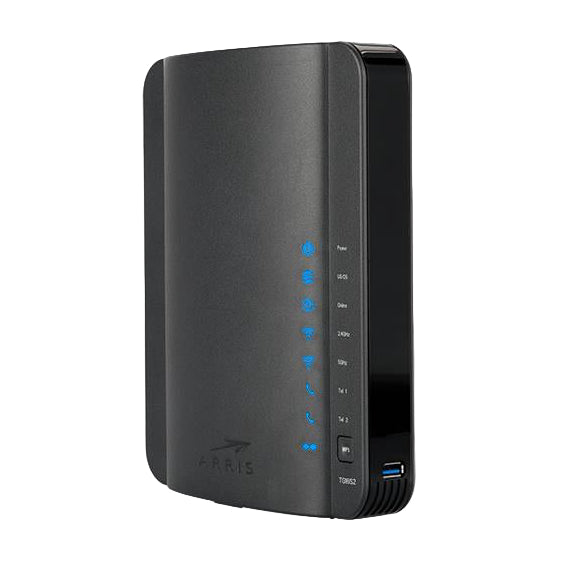

| Diagnostic LEDs (Front) | Power, US/DS, Online, 2.4GHz, 5GHz, Tel1, Tel2, WPS, Battery (TG1652G) |

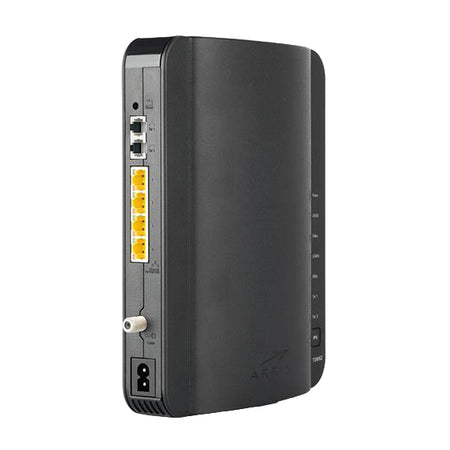

| Diagnostic LEDs (Rear) | Ethernet Link/Speed |
| Front Switches | WPS |
| Rear Switches | Power Switch TG1652S Only |
| Battery (TG1652G) | 71800s for 8 hour life |
| Interfaces | |
| RF Interface | External “F” type connector |
| Data Interfaces (bridged) | 4 × 10/100/1000 Base-T (RJ-45) |
| Analog Telephony Interface | 2 lines; RJ-11 |
| USB Interface | USB 2.0 Powered Host Port |
| Input Voltage (nominal) | 115V–230VAC / 50–60Hz |
| Telephony | |
| Supervisory Voltage | 48V DC nominal |
| Ringing Load Capacity | 6 REN total; 3 per line |
| Provisionable High Loop Current Mode | Yes (40mA constant current source) |
| Codec Support | G.729, G.711, G.722 |
| RF Downstream | |
| Bonded Channels | Up to 16 |
| Tuner Configuration | Full capture tuning range |
| Frequency Range (MHz) | 108–1002 |
| Data Rate (Mbps Max.) | 640 Mbps |
| RF Input Sensitivity Level (dBmV) | -15 to +15 (DOCSIS), -17 to +15 EuroDOCSIS |
| RF Upstream | |
| Bonded Channels | Up to 4 (42MHz), 8 (85MHz) |
| Frequency Range (MHz) | 5 to 42 DOCSIS, 5 to 85 EuroDOCSIS |
| Data Rate (Mbps Max.) | Up to 240 Mbps (8 upstream) |
| RF Output Level (dBmV) |
+57 dBmV (64 QAM, single upstream) +54 dBmV (64QAM, 4–8 upstreams) +58 dBmV (16 QAM, single upstream) +56 dBmV (SCDMA, single upstream) |
| Wireless 2.4 GHz | |
| Transmit Power EIRP |
+23 dBm (802.11n MCS0, HT20) +18 dBm (802.11n MCS7, HT20) |
| Spatial Streams / Antennas | 2 |
| Receive Levels |
<-85 dBm 802.11n (MCS0, HT20) <-68 dBm 802.11n (MCS7, HT20) |
| Wireless 5 GHz | |
| Transmit Power EIRP |
+23 dBm (802.11ac MCS0, VHT20) +18.5 dBm (802.11ac MCS7, VHT40) |
| Spatial Streams / Antennas | 2 |
| Receive Levels |
<-87 dBm 802.11ac (MCS0, VHT20) <-65 dBm 802.11ac (MCS7, HT40) <-54 dBm 802.11ac (MCS9, VHT80) |
TG1652S/CE-85
