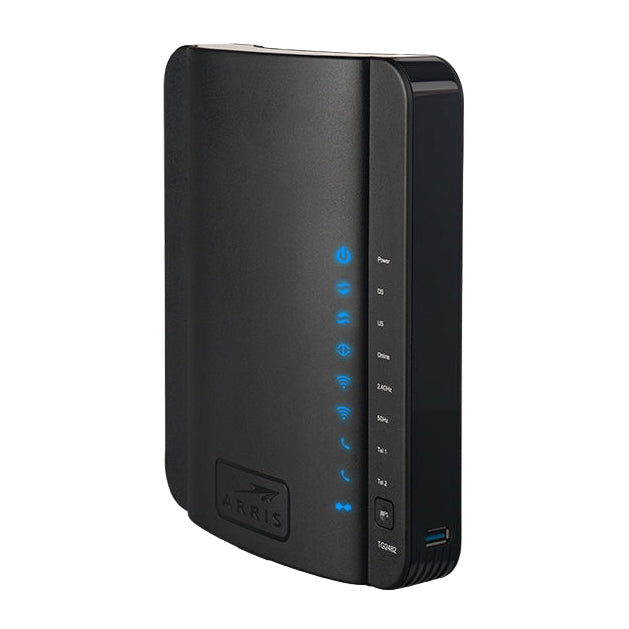

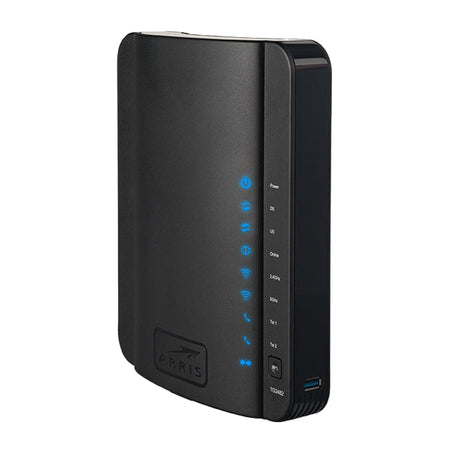

Touchstone TG2482B 24x8 Cable Gateway with 802.11ac WiFi 85MHz Upstream
Feature Highlights
DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access24x8 Channel Bonding
Dual-Band WiFi 5 (AC Wave 2)
1.732 Mbps on 5Ghz 4x4 MU-MIMO
450 Mbps on 2.4Ghz 3x3 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
The TG2482 is a high-performance, high quality home gateway for the delivery of high-speed broadband, VoIP telephony and whole-home Wi-Fi. This feature-packed unit is intended to serve as the hub of the subscriber’s network, connecting all IP capable devices (Internet, Data, Voice and Video) throughout the customer’s premises. Featuring 24x8 DOCSIS 3.0 channel bonding and the superior performance of 4x4 802.11ac Dual-Band Wi-Fi, Ethernet and USB interfaces.
The TG2482 is designed to minimize support costs with multiple provisioning and remote management methods (SNMP, Configuration File, Remote WebGUI access, TFTP, and TR-069/181). Multiple remote access levels (User, Technician and MSO) also allow more ease and flexibility for manual configuration and control.
The TG2482 is ARRIS HomeAssure Enabled. When used with additional Wi-Fi Extenders, the solution delivers high-performance Wi-Fi to every corner of the home, while offering ease of use for the consumer and reduced OPEX costs for the service provider. The TG2482 gateway can provide automated network optimization, interworking with the self-configuring extenders, the HomeAssure consumer App and the HomeAssure Cloud management platform for remote management, analytics diagnostics.
| Physical | |
|---|---|
| Operating Temperature | 0 to 40°C |
| Operating Relative Humidity | 5–85% (Non condensing) |
| Storage Temperature | -40 to 70°C |
| Dimensions (H × W × D) | 236 mm × 150 mm × 62 mm (excluding ‘F’ connector) |
| Weight | 0.7 kg |
| Diagnostic LEDs (Front) | Power, US/DS, Online, 2.4 GHz, 5 GHz, Tel1, Tel2, WPS |
| Diagnostic LEDs (Rear) | Ethernet Link/Speed |
| Front Switches | Wi-Fi On/Off, WPS |
| Interfaces | |
| RF Interface | External ‘F’ type connector |
| Data Interfaces (bridged) | 4 × 10/100/1000 Base-T Ethernet (RJ-45 connector) |
| Analog Telephony Interface | 2 lines, RJ-11 |
| USB Interface | USB 2.0 Powered Host Port |
| Input Voltage (nominal) | 12 V DC |
| Input Current (max) | 2.5 A |
| Telephony | |
| Supervisory Voltage | 48 V DC nominal |
| Ringing Load Capacity | 6 REN total; 3 per line |
| Provisionable High Loop Current Mode | Yes (40 mA constant current source) |
| Codec Support | G.729, G.711, G.722 |
| RF Downstream | |
| Bonded Channels | Up to 24 |
| Tuner Configuration | Full capture tuning range |
| Frequency Range | 108–1002 MHz |
| Data Rate | >960 Mbps |
| RF Input Sensitivity Level (dBmV) | -15 to +15 (DOCSIS) |
| RF Upstream | |
| Bonded Channels | Up to 8 |
| Frequency Range | 5 to 42 or 5 to 85 MHz |
| Data Rate | Up to 240 Mbps max. |
| RF Output Level |
+57 dBmV (64-QAM, single upstream) +54 dBmV (64-QAM, 4–8 upstreams) +58 dBmV (16-QAM, single upstream) +56 dBmV (S-CDMA, single upstream) |
| Wireless 2.4 GHz | |
| Transmit Power (EIRP) |
+21.5 dBm (802.11n MCS0, HT20) +21.5 dBm (802.11n MCS7, HT20) |
| Spatial Streams | 3 |
| Receive Levels |
<-85 dBm 802.11n (MCS0, HT20) <-68 dBm 802.11n (MCS7, HT20) |
| Antennas | 3 transmit and 3 receive |
| Wireless 5 GHz | |
| Transmit Power (EIRP) |
+23.5 dBm (802.11ac MCS0, VHT20) +23.5 dBm (802.11ac MCS9, VHT80) |
| Spatial Streams | 4 |
| Receive Levels |
<-87 dBm 802.11ac (MCS0, VHT20) <-65 dBm (MCS7, VHT40) <-54 dBm 802.11ac (MCS9, VHT80) |
| Antennas | 4 transmit and 4 receive |
TG2482B/CE-85
