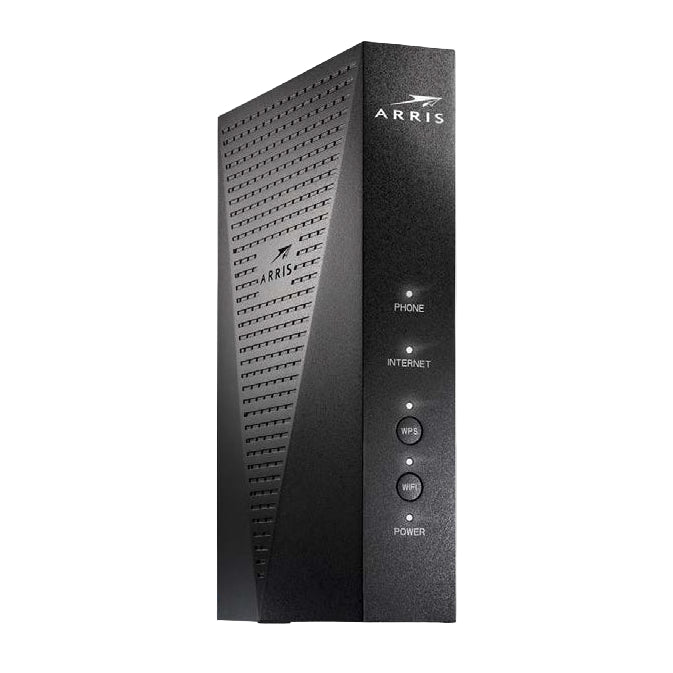

Touchstone TG3442S/CE DOCSIS 3.1 Gateway with 802.11ac WiFi
Feature Highlights
DOCSIS 3.1 / EuroDOCSIS 3.0 WAN Access2x2 OFDM(A) Channels
32x8 Channel Bonding
Dual-Band WiFi 5 (AC Wave 2)
1.633 Mbps on 5Ghz 4x4 MU-MIMO
450 Mbps on 2.4Ghz 3x3 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
The TG3442 Telephony Wireless Gateway supporting DOCSIS 3.1 allows multi-gigabit data rates to be delivered to cable service provider’s home and small business customers. The TG3442 with its 4x4 802.11ac Dual Band radios, offers superior Wi-Fi performance enabling reliable Ultra HD video over Wi-Fi.
The switchable diplexer is designed to produce superior RF performance and ease of deployment on a DOCSIS 3.1 network. High capacity DRAM, Flash and Multiple embedded processor cores are designed to allow new applications to be deployed on the gateway. This feature-packed unit is intended to serve as the hub of the subscriber’s network, connecting all IP capable devices(Internet, Data, Voice and Video) throughout the customers premises.
To minimize support OPEX costs the TG3442 provides features for remote management and diagnostics. Multiple provisioning methods (SNMP, Configuration File, Remote WebGUIaccess, TFTP, and TR-069/181) allow custom designed setups to be applied to monitor the end user more efficiently. Multiple remote access levels (User, Cusadmin, and MSO) also allow more ease and flexibility for manual configuration and control.
| Physical | |
|---|---|
| Operating Temperature | 0 to 40°C |
| Operating Relative Humidity | 5–85% (Non-condensing) |
| Storage Temperature | −40 to 70°C |
| Dimensions (H × W × D) | 282 mm × 75 mm × 205 mm |
| Weight | 0.95 kg |
| Diagnostic LEDs (Front) | Integrated LED for status of Phone, Internet, WPS, Wi-Fi, and Power |
| Diagnostic LEDs (Rear) | Ethernet Link/Speed |
| RF Downstream | |
| Bonded Channels | Up to 32 SC-QAM and/or 2 OFDM |
| Tuner Configuration | Full capture tuning range |
| Frequency Range | 108–254 MHz – 1218 MHz DOCSIS |
| Data Rate | Up to 5 Gbps |
| RF Input Sensitivity Level | −15 dBmV to +15 dBmV (DOCSIS) |
| RF Upstream | |
| Bonded Channels | Up to 8 SC-QAM and/or 2 OFDMA |
| Frequency Range | 5 MHz to 204 MHz |
| Configurable Diplex Filter | 42 MHz – 204 MHz |
| Data Rate | Up to 1 Gbps |
| RF Output Level |
+65 dBmV (64QAM, single US) +57 dBmV (64QAM, 4–8 US) +65 dBmV (16QAM, single US) +65 dBmV (OFDMA) |
| Voice | |
| Standards Supported | PC2.0/1.5/1.0, SIP |
| Codecs Supported | G.711, G.722, G.729 |
| FAX | T.38 |
| REN Capability | 5 REN / line, 10 REN total |
| Line Card Support | Flexible LC Templates |
| Interfaces | |
| RF Interface | 1 External “F” type connector |
| Data Interfaces (bridged) | 4 × 10/100/1000 Base-T Ethernet (RJ-45) |
| Analog Telephony Interface | 2 lines; RJ-11 |
| Input Voltage (nominal) | 12 V DC |
| AC-DC | External |
| USB | 1 |
| Wireless | |
| Frequency Range | 2.4 GHz and 5 GHz |
| Transmit Power (from any antenna) |
+29 dBm (MCS7, 2.4 GHz) +28 dBm (MCS7, 5 GHz, HT20) +26 dBm (MCS9, 5 GHz, VHT40) |
| Spatial Streams | 3 for 2.4 GHz, 4 for 5 GHz |
| Receive Levels |
2.4 GHz: < −88 dBm 802.11n (MCS0), < −71 dBm 802.11n (MCS7, HT20) 5 GHz: < −89 dBm 802.11ac (MCS0), < −60 dBm 802.11ac (MCS9, VHT80) |
| Antennas | 7 transmit, 7 receive (total) |
TG3442S/CE
