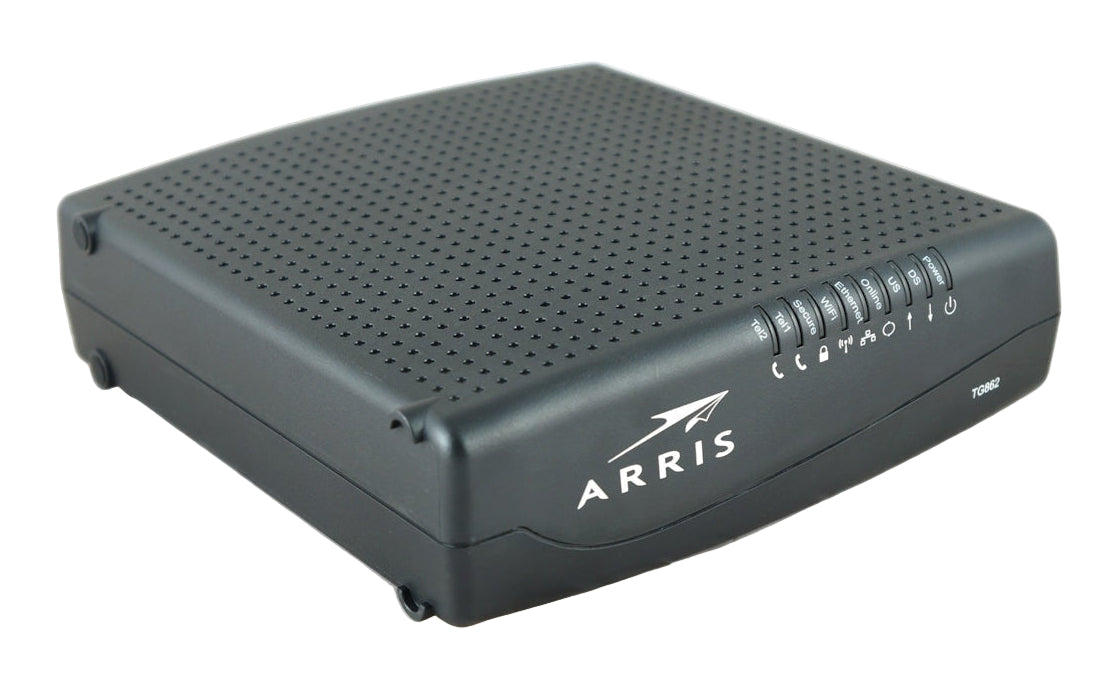

Touchstone TG862S 8x4 Cable Gateway with 802.11n WiFi

Arris · TG862S/CE

Condition

Refurbished Surplus New

Feature Highlights

DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access
8x4 Channel Bonding
Single-Band WiFi 4 (N)
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone

1-Year Warranty

30-Day Returns

Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203

The Touchstone® DOCSIS® 3.0 Residential Gateway is an 8x4 advanced gateway product.
The TG862 combines two analog voice lines, a 4-port Gigabit Router, and a 802.11n wireless access point into a single device capable of supporting both home and small office applications. Using multi-processor technology, the TG862 can achieve high bandwidth performance without affecting voice quality, a historical ARRIS product standard. This feature packed unit will lead the future for advanced home and small office services.

Physical
Operating Temperature °F (°C)	41 to 122 (5 to 40)
Operating Relative Humidity (Min-Max)	5-85% (Non-condensing)
Storage Temperature °F (°C)	-40 to 158 (-40 to 70)
Color	Black
Dimensions (H × W × D)	8 × 8 × 2 inches, 20.3×20.8×5 cm (excluding F-connector)
Weight	1.6 lbs, .73 kg
Diagnostic LEDs	Power, DS, US, Online, Ethernet, Wi-Fi®, Secure, Tel 1, Tel 2

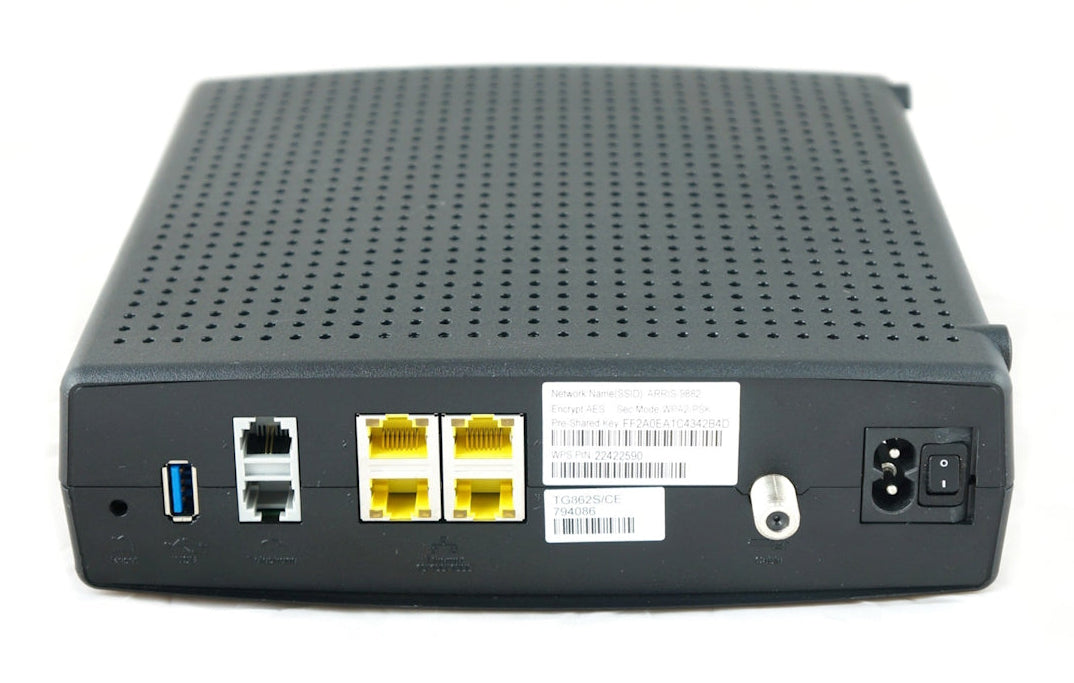

Interfaces
RF Interface	External ‘F’ type connector
Data Interfaces (bridged)	4 × 10/100/1000 Base-T Ethernet (RJ-45 connector)
Telephony Interface	2 lines; RJ-14 (“Line 1/2”), RJ-11 (“Line 2”)
USB Interface	USB 2.0 Powered Host Port
Input Voltage (nominal)	100-240 Vac 50/60 Hz (Power Switch on “S” model)
Telephony
Supervisory Voltage	48 Vdc nominal
Maximum Loop Length to CPE	1000 ft (457 m) of 26 AWG (0.4 mm) wire
Ringing Load Capacity	10 REN total; 5 per line
Provisionable High Loop Current Mode	Yes (40mA constant current source, NA templates ONLY)
Telcordia™ GR 1089 Tested	Yes
Programmable Interface for Worldwide Applications	Yes (supports multiple country templates)
RF Downstream
Bonded Channels	Up to 8
Tuner Configuration	2 tuning ranges of 96 MHz each supporting 8 bonded channels
Frequency Range (MHz)	108-1002
Carrier Bandwidth (MHz)	6 (DOCSIS), 8 (EuroDOCSIS™) (“S” Model)
Modulation (QAM)	64 or 256
Data Rate (Mbps, Max)	Up to 320 DOCSIS, Up to 420 EuroDOCSIS
RF Input Sensitivity Level (dBmV)	-15 to +15
RF Upstream
Bonded Channels	Up to 8
Frequency Range (MHz)	5-42 (“A” model), 5-65 (“B”, “C”, “S” models)
Modulation	QPSK, 8QAM, 16QAM, 32QAM, 64QAM, 128QAM (S-CDMA only)
Modulation Bandwidth (kHz)	TDMA: 200, 400, 800, 1600, 3200, 6400; S-CDMA: 1600, 3200, 6400
Data Rate (Mbps, Theoretical)	Up to 122
RF Output Level (dBmV)	QPSK: +17 to 61; 8QAM: +17 to 58; 16QAM/32QAM/64QAM: +17 to 57; S-CDMA: +17 to +56 (all modulations)
Automatic Level Adjust	Yes
Frequency Stability (kHz)	±5
Output Impedance (Ω)	75
RF Upstream
Bonded Channels	Up to 4
Frequency Range (MHz)	5 to 42 (DOCSIS), 5 to 65 (EuroDOCSIS)
Modulation	QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM & 128 QAM (S-CDMA only)
Data Rate (Mbps Max.)	Up to 160
RF Output Level (dBmV)	ATDMA: +8 to 54 dBmV (32 QAM, 64 QAM), +8 to 55 dBmV (8 QAM), +8 to 58 dBmV (QPSK) S-CDMA: +8 to +53 dBmV (all modulations)
Automatic Level Adjust	Yes
Frequency Stability (kHz)	±5
Output Impedance (Ohms)	75
Wireless
Transmit Power Output (EIRP)	18.5 dBm ±1.5 / −1.5 dB (802.11g 6 Mbps) 13.5 dBm ±1.5 / −1.5 dB (802.11n MCS7)
Receive Levels	> −90 dBm (802.11b 11 Mbps) > −76 dBm (802.11g 54 Mbps) > −76 dBm (802.11n HT20 MCS7)
Frequency Range	2400–2483.5 MHz
Antennas	2 transmit and receive
