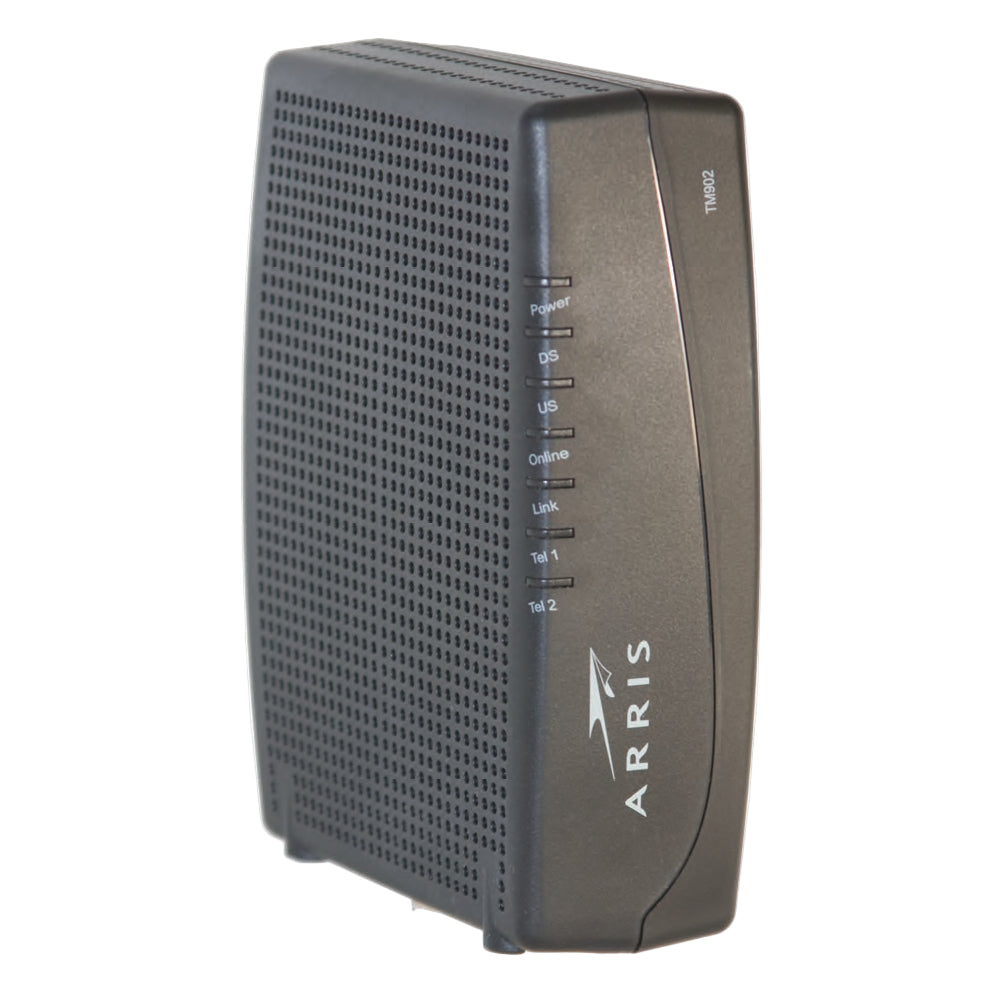

Touchstone TM902S Telephony Modem
Feature Highlights
DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access8x4 Channel Bonding
1 x Gigabit Ethernet LAN
2 x FXS Phone
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
The Touchstone Telephony Modem TM902 is a next generation DOCSIS®/EuroDOCSIS 3.0 2-line E-MTA that delivers two lines of primary-line Voice over IP (VoIP), and ultra-high speed data access. The TM902 provides SIP or NCS telephony combined with ultra-high speed data communication through advanced RF channel bonding and Giga Ethernet user data port. TM902 can achieve high bandwidth performance and carrier-grade Voice Quality without affecting the legendary high quality standards of ARRIS products. Designed to support the services desired most by advanced users, the TM902 enables the home or small business user to address productivity needs with the speed and performance found only in the 8x4 bonded channel cable environment and industry leading ARRIS voice features.
| Specifications | |
|---|---|
| DOCSIS Compliance | DOCSIS 3.0 and EuroDOCSIS 3.0 compliant |
| PacketCable | PacketCable 1.0 and 1.5 compliant |
| EuroPacketCable | EuroPacketCable 1.0 and 1.5 compliant |
| Channel Bonding | 8×4 bonding (8 DS × 4 US) |
| Backward Compatibility | Compatible with DOCSIS 1.0, 1.1, and 2.0 |
| VoIP Support | Up to two lines of carrier-grade VoIP |
| Protocol Support | PacketCable (NCS) or Session Initiation Protocol (SIP) |
| Downstream Tuner | 1 GHz downstream RF tuner |
| Capture Bandwidth | 96 MHz wide capture bandwidth |
| Ethernet Interface | 10/100/1000 Base-T Auto Speed Sense, Auto MDI-X |
| IP Version Support | Supports IPv4 or IPv6 |
| Power Switch | On/Off power switch (S model) |
| Configuration File | PacketACE configuration file editor |
| Voice Performance | E-MTA-grade voice performance |
| Loop Configurability | Loop current, loop voltage, ringing waveform |
| Loop Diagnostics | Remote testing & troubleshooting of in-house wiring |
| Advanced Diagnostics | Call Quality Metrics |
| Flexible Bonding | Flexible NxM downstream/upstream bonding |
| Dual Mode Operation | DOCSIS/EuroDOCSIS dual-mode (B and S models) |
| LED Indicators | Multi-colored LEDs for rapid troubleshooting |
| Power Supply | Integrated Universal Power Supply for high reliability |
| Downstream Scanning | Override via web GUI for rapid installation |
| EMC Compliance | Meets/exceeds industry radiated immunity and surge requirements |
| Usability | Easy to install and operate |
| Upgradability | Upgradeable to PacketCable 2.0 |

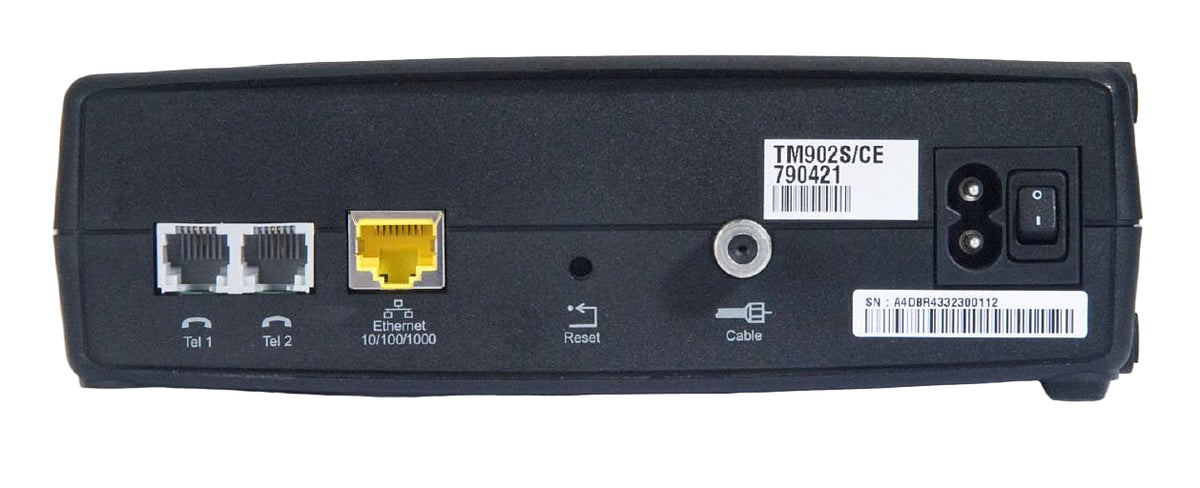

TM902S/CE
