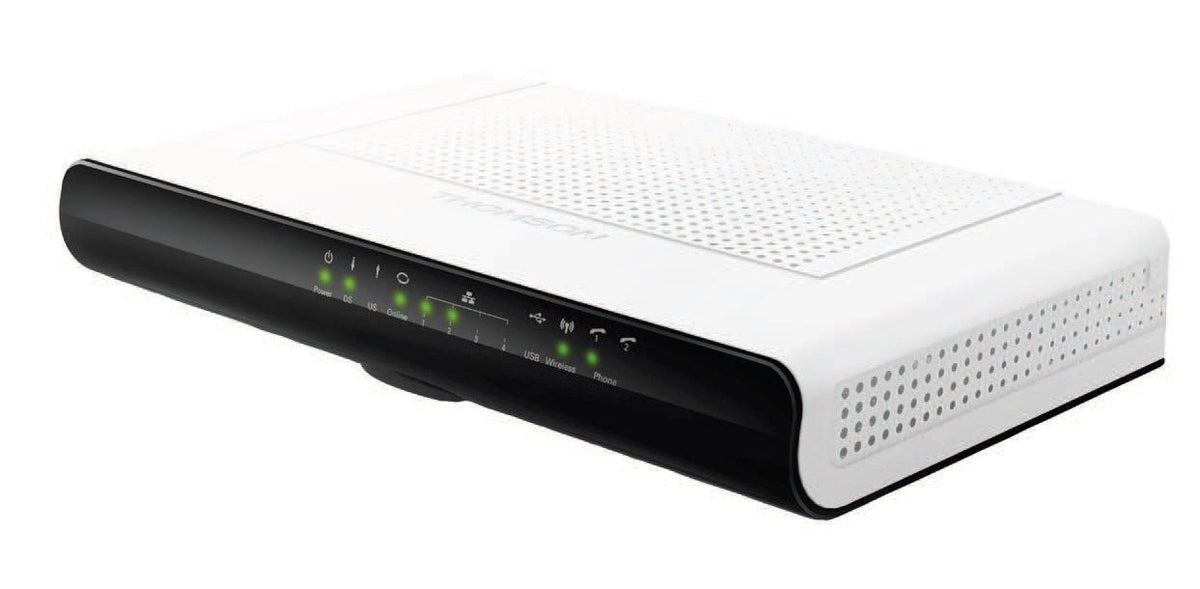

TWG870 DOCSIS / EuroDOCSIS 3 Wireless and VoIP Cable Gateway
Feature Highlights
DOCSIS 3.0 / EuroDOCSIS 3.0 WAN Access8x4 Channel Bonding
Single-Band WiFi 4 (N)
300 Mbps on 2.4Ghz 2x2 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
With the evolution of cable standards, DOCSIS/EuroDOCSIS 3.0 will prove decisive for cable operators wishing to provide high bandwidth data delivery and to stay ahead of the content with game and video over IP delivery. With this new generation of High Speed Data Services Solution, Technicolor introduces up to eight (8) bonded downstream channels and four (4) bonded upstream channels, with a design backward-compatible for use as a single-channel with DOCSIS and Euro-DOCSIS 2.0 (and older) networks without any service interruption. Thanks to the integrated dual split tuner solution, the operator will benefit from flexibility in channel allocation: to ease the management when the channel frequency plan is loaded or to separate data from other services such as video over IP. The new TWG870 comes in the sleek attractive design Technicolor has adopted as the new «family look» and offers high bandwidth with advanced multimedia services with telephony convergence and new IPTV alternatives
| Receiver | |
|---|---|
| Downstream Modulation | QAM 64/256 |
| Downstream Frequency Range | 88–1002 MHz |
| Maximum Downstream Data Rate | 440 Mbps (theoretical), 55.61 Mbps × 8 channels |
| Capture Windows | 64 MHz capture window split into two windows of 32 MHz |
| Number of Downstreams | Up to 8 |
| Input Signal Level Range |
|
| Input Impedance | 75 Ohm |
| Transmitter | |
| Upstream Modulation | QPSK and 8, 16, 32, 64 and 128 QAM |
| Upstream Frequency Range | 5–65 MHz |
| Maximum Upstream Data Rate | 131 Mbps (theoretical), 32.78 Mbps × 4 channels |
| Number of Upstreams | 4 |
| Channel Bandwidth | 200, 400, 800 kHz, 1.6, 3.2 and 6.4 MHz |
| Output Impedance | 75 Ohm |
| Wireless Features | |
| Protocol | Fully 802.11n compatible |
| Throughput | Up to 100 Mbps data rate |
| Wireless Security |
|
| WPS | Yes |
| Multiple SSID | Yes |
| Interfaces / Physical | |
| Wireless | 2 internal antennas |
| Giga Ethernet | 4 × RJ45 – 10/100/1000 Base-T auto-detect |
| USB 2.0 | 1 × master port |
| Telephone Line | 2 × RJ11 |
| RF Connector | 1 × F-Type |
| Buttons | Reset, On/Off, WPS |
| LEDs | Power, DS, US, Online, Tel1, Tel2, Wireless, Eth-4, USB |
| Power Supply | External, 230 VAC 50 Hz, Eco design |
| Operating Temperature | 0° to 40°C |
| Operating Humidity | 20% to 90% non-condensing |
| Storage Temperature | −20° to 70°C |
| Safety | CE and CB |
TWG870
