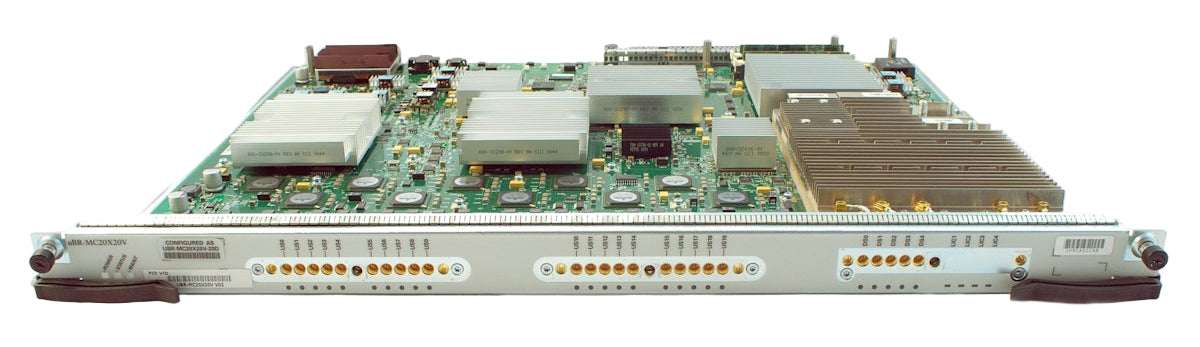

The Cisco uBR-MC20X20V Broadband Processing Engine (BPE) is a next-generation line card for the Cisco uBR10012 Universal Broadband Router. It adds exciting features to the Cisco uBR10012 platform – including 20 upstream and 20 downstream channels – while supporting the industry benchmark standards for excellence and reliability that were established by the Cisco 5x20H BPE.
| Feature | Benefits |
|---|---|
| High port and channel density |
Reduces per-port cost Provides easy upgrade path from the Cisco 5x20H BPE |
| Upstream features |
Operates up to 65 MHz (EuroDOCSIS mode) Supports up to two frequencies per port |
| Dense connector |
Reduces installation time Reduces mean time to repair (MTTR) |
| Onboard spectrum analyzer hardware |
Reduces return-path monitoring costs Enhances remote troubleshooting capabilities |
| Dedicated MAC layer hardware |
Provides hardware acceleration of DOCSIS (3.0/2.0/1.x) features Enables scalability of data and voice deployment Optimizes cable modem registration time Provides hardware-based Layer 2 QoS Allows use of best-of-class physical layer (PHY) |
| DOCSIS, EuroDOCSIS, and extensions to support DOCSIS operations in Japan |
Provides operational savings Lowers capital expenditures (CapEx) Increases flexibility |
| Compatible with the Cisco uBR 3x10 RF Switch | Provides line card redundancy for carrier-class operation |
| Interoperation with Cisco 5x20H and Cisco 5x20U |
uBR-MC20X20V can interoperate with the 5x20H/5x20U in the same uBR10012 chassis uBR-MC20X20V can act as Protect for both 5x20H/5x20U in the same uBR10012 chassis |
| Description | Specification |
|---|---|
| Physical |
Occupies a single slot in the Cisco uBR10012 chassis Interface: line card single mode with intermediate reach connector Hot-swappable; no slot dependency Weight: 16 lb (7.26 kg) Dimensions (H x W x D): 20 x 1.36 x 16 in. (50.80 x 3.55 x 40.64 cm) |
| Power | Unit power: 230W at 40°C |
| Reliability and availability | Designed for five 9s of availability |
| Environmental |
Operating altitude: –197 to 13,123 ft (–60 to 4000m) Storage temperature: –4 to 149°F (–20 to 65°C) Operating temperature, nominal: 41 to 104°F (5 to 40°C) Storage relative humidity: 5 to 95% Operating relative humidity: 10 to 90% |
| Software release | Cisco IOS® Software Release 12.2(33)SCC or later |
