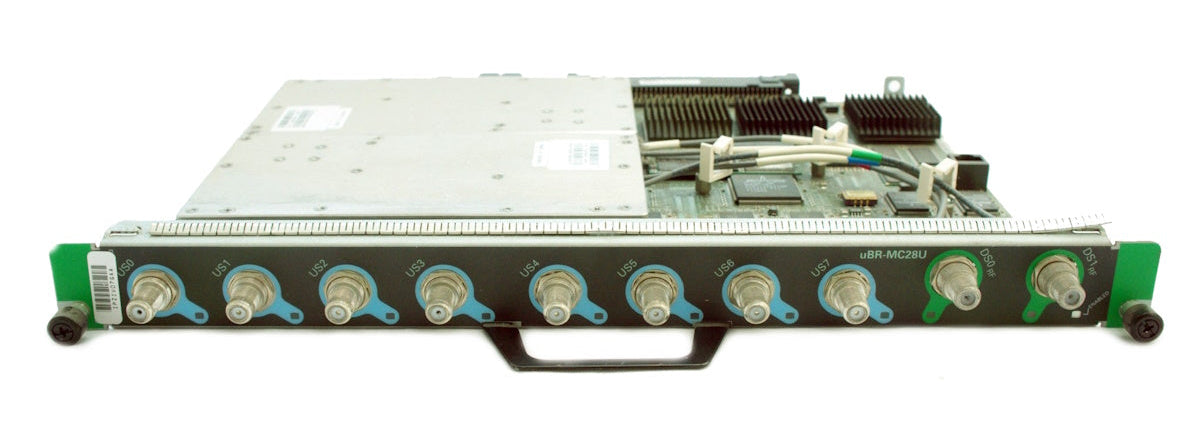

uBR-MC28U Broadband Processing Engine
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free to reach out to us with any questions.
hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204
The Cisco uBR7200 Series MC28U line cards address the expanding service and operational needs of multiple system operators (MSOs). An unmatched set of advanced features and a scalable architecture make these line cards an ideal choice for cable operators facing the challenge of delivering carrier-class IP-based data, voice, and video services to a growing number of subscribers. The line cards offer:Â
• An advanced physical layer (PHY) to provide ingress noise cancellation
• Advanced time-division multiple access (A-TDMA) capabilities
• Advanced spectrum management
• An onboard processor for improved performance to support additional subscribers and services
• Integrated upconverters for Cisco uBR7200 Series MC28U and MC16U line cards
• Flexible software Media Access Control (MAC) domain configuration or virtual interfaces
• Reduced cable wiring through frequency stacking
• Data Over Cable Service Interface Specifications (DOCSIS®), European DOCSIS (Euro-DOCSIS), and J-DOCSIS support on one line card.Â
| Item | Description |
|---|---|
| Physical |
Occupies a single slot in the Cisco uBR7246VXR chassis Hot-swappable; no slot dependency Dimensions (H x W x D): 1.35 x 13.5 x 10.56 in. (3.43 x 34.29 x 26.82 cm) Weight: 6 lbs (2.72 kg) |
| Power Consumption | 80 Watts (273 BTU/h) |
| Power Output | +50 to 61 dBmV at RF |
| RF Output Power Range | 50 to 61 dBmV |
| Modulation |
Downstream: 64-QAM, 256-QAM Upstream: QPSK 8-, 16-, 32-, 64-QAM |
| Downstream Frequency Range |
DOCSIS: 6 MHz Annex B, 88–860 MHz Euro-DOCSIS: 8 MHz Annex A, 85–860 MHz J-DOCSIS: 6 MHz Annex B extension, 70–860 MHz |
| Upstream Frequency Range |
DOCSIS: 6 MHz Annex B, 5–42 MHz Euro-DOCSIS: 8 MHz Annex A, 5–65 MHz J-DOCSIS: 6 MHz Annex B extension, 5–55 MHz |
| Environmental |
Operating altitude: -197 to 13,123 ft (-60 to 4000 m) Storage temperature: -4 to 149°F (-20 to 65°C) Operating temperature, nominal: 41 to 104°F (5 to 40°C) Storage relative humidity: 5 to 95 percent Operating relative humidity: 10 to 90 percent |
UBR-MC28U
