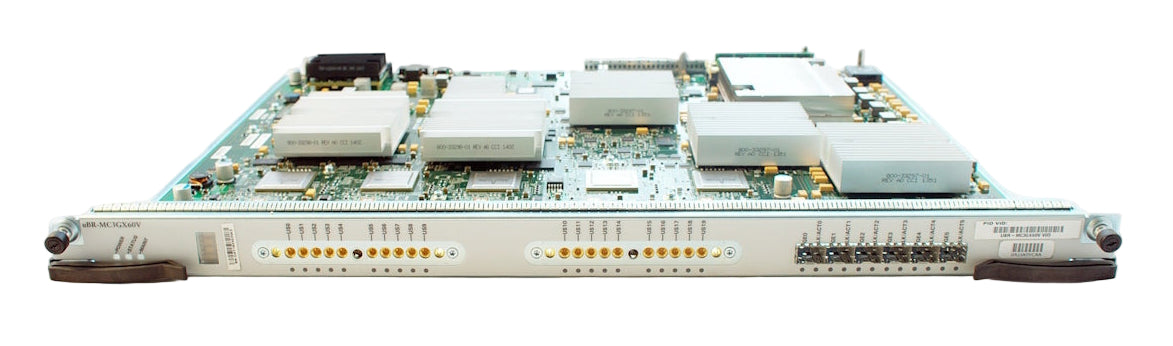

uBR-MC3GX60V Broadband Processing Engine

The Cisco uBR-MC3GX60V Broadband Processing Engine (BPE) is a high-capacity, DOCSIS 3.0- capable line card for the Cisco uBR10012 Universal Broadband Router. With 72 DOCSIS downstream and 60 upstream channels per card, the Cisco uBR-MC3GX60V BPE sets a new benchmark for scalable, faster, and cost-effective DOCSIS 3.0 Cable Modem Termination System (CMTS) solutions. With the addition of the uBRMC3GX60V BPE, the Cisco uBR10012 platform scales to an unprecedented 576 modular DOCSIS downstream channels and 480 upstream channels, or approximately 24 Gbps of downstream throughput and 14.4 Gbps of upstream throughput, in a single, carrier-class chassis.

Features and Benefits
● DOCSIS line-rate operation for all downstream channels (72 at 256QAM Annex B or 54 at 256QAM Annex A) and all 60 upstream channels (up to 64QAM at 6.4 MHz) in bonded and nonbonded modes
● From 4-channel to more than 32-channel downstream bonding capable; 4-channel upstream bonding capable
● Six Small Form-Factor Pluggable (SFP) ports (three active and three standby)
● 20 upstream ports (identical to MC20X20V), providing up to 12-frequency stacking per port
● Flexibility in assigning upstream channels to upstream ports; upstream frequency of up to 85 MHz
● Full DOCSIS 3.0 CMTS and downstream external PHY interface (DEPI) capability 2012 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public. Page 4 of 8
● Superior RF performance with enhanced full-feature tap (FFT), ingress cancellation, and impulse noise detection capability
● Time Division Multiple Access (TDMA), Advanced Time Division Multiple Access (A-TDMA), and Synchronous Code Division Multiple Access (S-CDMA) supported
● Simultaneous operation of Cisco uBR-MC3GX60V, with Cisco 5x20H, Cisco 5x20U, Cisco MC20X20V, and Cisco DOCSIS 3.0 Wideband shared port adapter (SPA) in the same uBR10012 chassis
