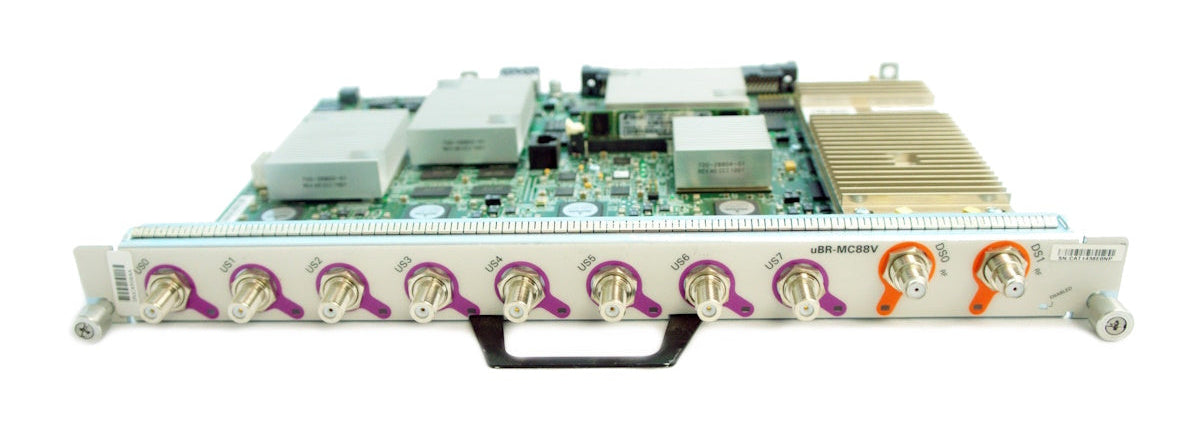

uBR-MC88V Broadband Processing Engine
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Cisco’s DOCSIS 3.0 solution with the Cisco uBR-MC88V Broadband Processing Engine (BPE) delivers faster speeds and higher density with a flexible and scalable architecture. The resulting benefits are faster time to market, lower total cost of ownership, and higher revenues than previously possible, thus helping operators prepare their networks for the exponential growth of IP traffic.
The Cisco uBR-MC88V supports eight DOCSIS 3.0 downstream channels through two quad-stacked physical connectors and eight upstream channels each on a unique physical connector. It significantly expands the capacity of the Cisco uBR7200 Series Universal Broadband Router to address growing subscriber bandwidth demands and enable cost-effective scalability of services.
| Description | Specification |
|---|---|
| Physical |
Occupies a single slot in the Cisco uBR7200VXR chassis Maximum two line cards per uBR7225VXR chassis and four line cards per uBR7246VXR chassis Hot-swappable; no slot dependency Dimensions (H x W x D): 1.4 x 15.154 x 11.531 in (3.55 x 38.49 x 29.29 cm) Weight: 6.06 lbs (2.749 kg) |
| Power consumption | 90 watts (307 BTUs per hour) at 25°C |
| RF output power range | 52 to 62 dBmV |
| Modulation |
Downstream: 64-QAM, 256-QAM Upstream: QPSK 8-, 16-, 32-, 64-QAM |
| Downstream frequency range |
DOCSIS: 6 MHz Annex B, 69MHz-999MHz Euro-DOCSIS: 8 MHz Annex A, 69MHz-999GHz |
| Upstream frequency range |
DOCSIS: 6 MHz Annex B, 5-42 MHz Euro-DOCSIS: 8 MHz Annex A, 5-65 MHz |
| Environmental |
Operating altitude: -197 to 13,123 ft (-60 to 4000m) Storage temperature: -4 to 149°F (-20 to 65°C) Operating temperature, nominal: 41 to 104°F (5 to 40°C) Storage relative humidity: 5 to 95 percent Operating relative humidity: 10 to 90 percent |
