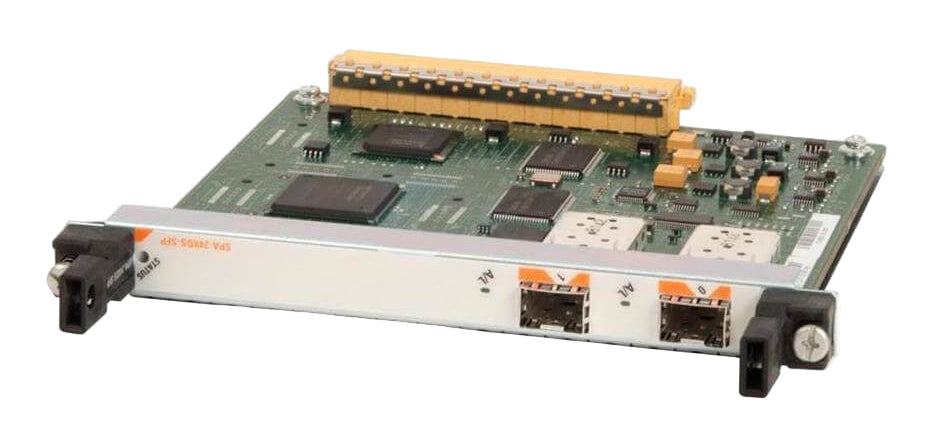

uBR10012 1-Gbps Wideband Shared Port Adapter
Cisco · SPA-24XDS-SFP
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Description
Technical Specifications
The Cisco® 1-Gbps wideband shared port adapter (SPA) for the Cisco uBR10012 Universal Broadband Router enables cable operators to offer high-speed broadband connectivity at scale and to enable new IP services.
| Feature | Benefit |
|---|---|
| Channel bonding |
Expands the current 30-Mbps service portfolio options up to 240 Mbps. Enables efficient video delivery over IP. Flexibility to offer a number of unique service tiers concurrently. Opportunity to scale services to meet new subscriber growth. Path to gigabit services. |
| Industry-leading port density |
Provides a flexible and easy option to more than the downstream capacity to the Cisco uBR10012. Dramatic reduction in per-port cost. Works in conjunction with the existing 5x20 RF line cards. |
| Utilizes the modular CMTS architecture |
Cost-effective option to scale DOCSIS deployments. Easy first step in moving to DOCSIS 3.0. |
| Supports third-party edge QAMs | Uses existing investments. |
| Integrated MAC processing | Delivers superior DOCSIS 3.0 performance. |
| Uses existing hybrid fiber-coaxial (HFC) infrastructure and DOCSIS provisioning | Addresses ongoing challenge to reduce operating expenses. |
| Overlapping service groups | Enables multiple fiber nodes to support custom bandwidth offerings. |
| SPA design | Modular port adapters have the ability to be supported across Cisco Systems routing platforms. |
| Physical, Power, and Reliability | |
|---|---|
| Physical |
Occupies one single half-height SPA slot (half slot) Dual Gigabit Ethernet interface with Small Form-Factor Pluggable (SFP) connectors Hot-swappable; either right-side Subslot (0 or 1) can be used Weight: 0.5 lb (0.23 kg) Dimensions (H x W x D): 6.75 x 0.8 x 7.28 in. (17.5 x 2.03 x 18.49 cm) |
| Power | Unit power: 20W |
| Reliability and Availability | Mean time between failure (MTBF): >500,000 hr |
| Environmental Specifications | |
| Environmental |
Operating altitude: -197 to 13,123 ft (-60 to 4000m) Conforms to IEC/EN/UL/CSA 60950 requirements up to 2000m Storage temperature: -4 to 149°F (-20 to 65°C) Operating temperature, nominal: 41 to 104°F (5 to 40°C) Storage relative humidity: 5 to 95% Operating relative humidity: 10 to 90% |
| Gigabit Ethernet Optical Connectivity Options | |
| Short-wavelength (SX) optics | Support a maximum distance of 1804 ft (550m) |
| Long-wavelength (LX) optics | Support a maximum distance of 6.2 mi (10 km) |
| Extended distance (ZX) optics | Support a maximum distance of 43.5 mi (70 km) |
All technical data, specifications and descriptions published on this website are provided for general information purposes only. We make reasonable efforts to ensure that the information is accurate and up to date; however, no guarantee, warranty or representation (express or implied) is given that any information is complete, correct, current or error-free. Images are for illustration purposes only, actual product may not include all parts visible.
