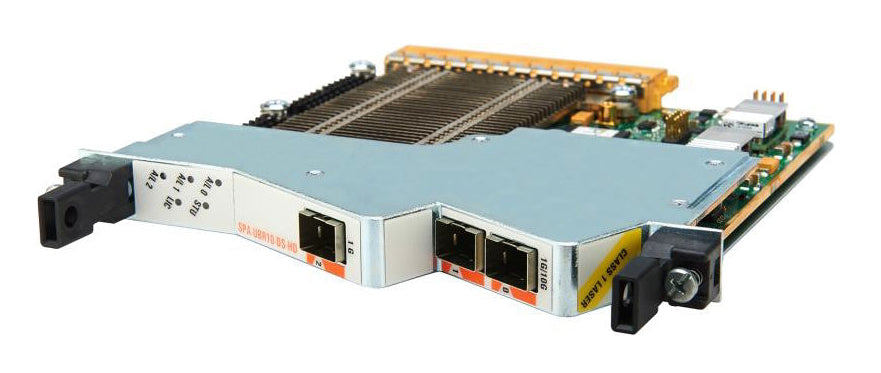

uBR10012 6 Gbps Wideband Shared Port Adapter
Cisco · SPA-UBR10-DS-6G
· SPA-UBR10-DS-HD
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
Description
Technical Specifications
Offer high-speed broadband connectivity at high scale and IP video services with low capital costs with the Cisco® 3 Gbps and 6 Gbps Wideband Shared Port Adapters. They are the next-generation high-density SPAs for the Cisco uBR10012 Universal Broadband Router. The Cisco 3 Gbps and 6 Gbps Wideband SPAs provide dramatically increased density, as compared to the Cisco 1 Gbps Wideband SPA for the Cisco uBR10012.
| Features and Benefits | |
|---|---|
| High-Density SPA Expands Downstream Bandwidth |
Cisco 3 Gbps Wideband SPA capacity for 72 DOCSIS downstream channels or 54 Euro-DOCSIS downstream channels at line rate, which can be upgraded to 144 DOCSIS downstream channels or 120 Euro-DOCSIS downstream channels starting from Cisco IOS 12.2(33)SCI Release. Cisco 3 Gbps Wideband SPAs that work in conjunction with the existing Cisco uBR-MC3GX60V to double the available downstream bandwidth of the Cisco uBR10012 system (With FPD image upgrade to 6-Gbps capacity, available downstream bandwidth of the Cisco uBR10012 system can be tripled with some level of oversubscription.) Support for 1 Gbps or more per service group. Cisco 6 Gbps Wideband SPA capacity for 144 DOCSIS downstream channels or 108 Euro-DOCSIS downstream channels at line rate (or 120 Euro-DOCSIS downstream channels with slight oversubscription.) |
| Small Form Factor Promotes Industry-Leading Density | Single-wide, half-height SPA form factor, which allows up to eight Cisco 3 Gbps or 6 Gbps Wideband SPAs to be equipped using two Cisco 10000 Series SPA Interface Processor-600 jacket cards. |
| Link Redundancy Assures High Availability |
Three 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) ports or 1 + 1 redundant 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) ports (The Cisco 6 Gbps Wideband SPA only supports 10-Gigabit interface.) Connectivity to third-party edge quadrature amplitude modulations (QAMs) using three dedicated 1 Gigabit Ethernet interfaces or dual 10 Gigabit Ethernet interfaces. |
| Backward Compatibility |
Compatible with currently supported line cards and SPA. RF spanning support Downstream channels from the Cisco 3 Gbps or 6 Gbps Wideband SPA can be associated with a service group hosted on different line cards, like Cisco uBR-MC3GX60V and Cisco uBR-MC20X20V Broadband Processing Engines. Downstream channels from the 3 Gbps or 6 Gbps Wideband SPA can be associated with upstream channels from a Cisco uBR-MC3GX60V or Cisco uBR-20X20V Broadband Processing Engines in one MAC domain. |
| Physical, Power, and Reliability | |
|---|---|
| Physical |
Occupies one single half-height SPA slot (half slot) One SFP and two SFP+ connectors, which support three 1 Gigabit Ethernet modules or dual 10 Gigabit Ethernet modules Hot-swappable; either side sub slot (0 or 1) can be used Weight: 1.32 lb (0.6 kg) Dimensions (H x W x D): 6.69 x 0.75 x 6.69 in (170 x 19 x 170 mm) |
| Power | Unit power: 30W |
| Reliability and availability | Mean time between failures (MTBF): >500,000 hr |
| Software and Environmental | |
| Software compatibility | Compatible with Cisco IOS Software Release 12.2(33)SCH and later Cisco IOS Software Release 12.2 images supported on the Cisco uBR10012 Universal Broadband Router |
| Environmental |
Operating altitude: -197 to 13,123 ft (-60 to 4000m) Conforms to IEC/EN/UL/CSA 60950 requirements up to 2000m Storage temperature: -4 to 149°F (-20 to 65°C) Operating temperature, nominal: 41 to 104°F (5 to 40°C) Storage relative humidity: 5 to 95% Operating relative humidity: 10 to 90% |
| 10 and 1 Gigabit Ethernet Optical Connectivity Options | |
| GLC-SX-MMD (SFP-GE-S) optics | Support a maximum distance of 1804 ft (550m) |
| GLC-LH-SMD (SFP-GE-L) optics | Support a maximum distance of 6.21 mile (10 km) |
| GLC-ZX-SMD (SFP-GE-Z) optics | Support a maximum distance of 43.5 mile (70 km) |
| SFP-GE-T | Support a maximum distance 328 ft (100m) |
| SFP-10G-SR-X optics | Support a maximum distance of 984 ft (300m) |
| SFP-10G-LR-X optics | Support a maximum distance of 6.21 mile (10 km) |
