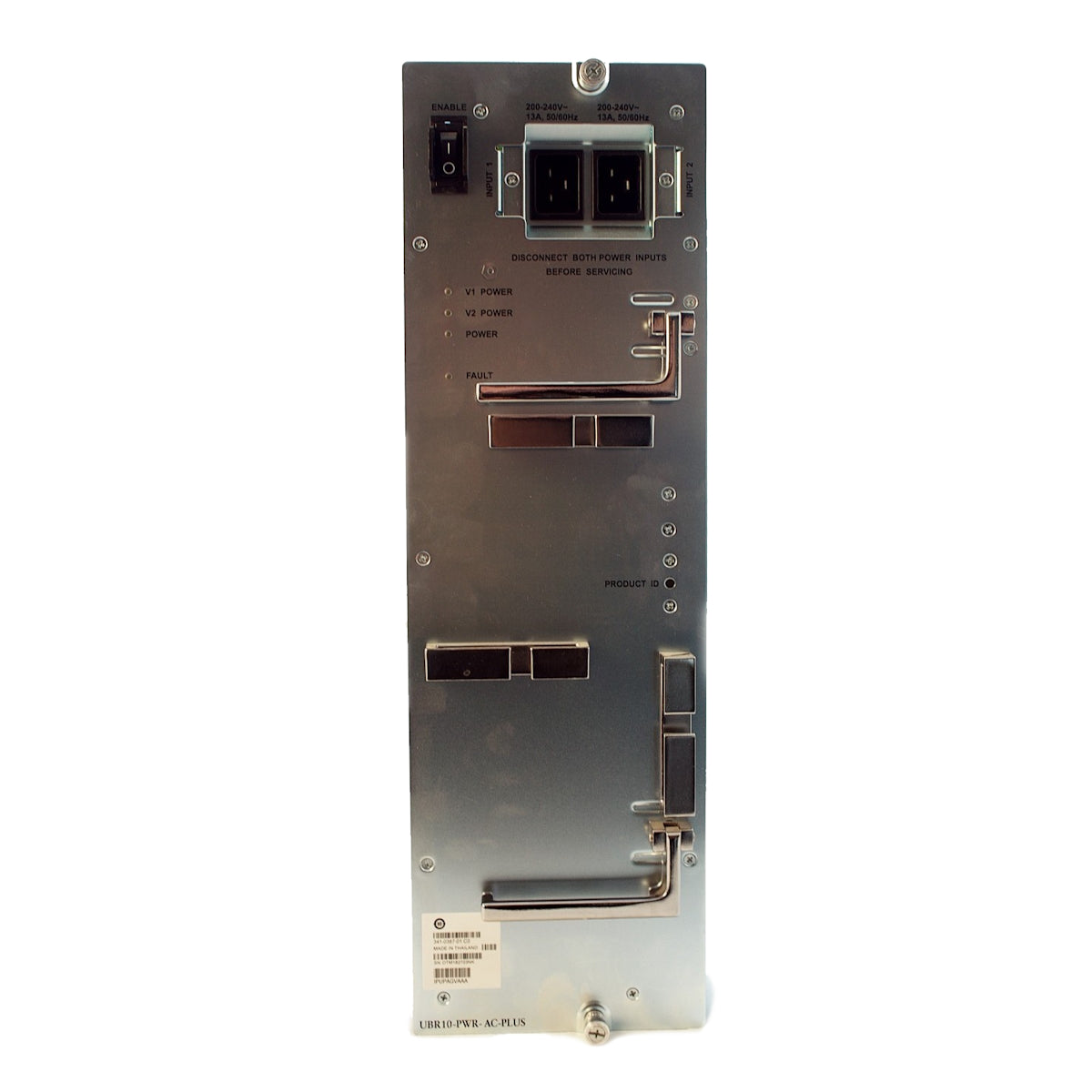

uBR10012 AC PLUS Power Supply, 3300W maximum power consumption

Cisco · UBR10-PWR-AC-PLUS
Condition
1-Year Warranty
30-Day Returns
Essential Support

Please feel free reach out to us with any questions.

Email +36 70 625 7203
Technical Specifications
Description Specifications
AC Power entry modules (PEM) 341-0387-01
100—120 VAC operation is not supported		 Part Number: UBR10-PWR-AC-PLUS (Primary)
Part Number: UBR10-PWR-AC-PLUS= (Spare)
Dimensions:
Height: 19.4 in. (49.3 cm)
Width: 6 in. (15.2 cm)
Depth: 5 in. (12.7 cm)
Weight: 19 lbs (8.64 kg)
AC input voltage rating: 200–240 VAC @ 50 or 60Hz
AC operating voltage rating: 180–255 VAC @ 50 or 60Hz
AC input power connections: 13 A + 13 A
DC output voltage:
57.5 VDC nominal
59.0 VDC maximum
DC output current:
58 A nominal
59 A maximum
Power output: 3300 W maximum
Temperature range:
Operating: 41° to 104°F (5° to 40°C)
Storage: -40° to 158°F (-40° to 70°C)
Relative Humidity:
Operating: 5% to 85%, non-condensing
Storage: 5% to 95%, non-condensing
Operating Altitude: -197 to 13,693 feet (-60 to 4000 m)
