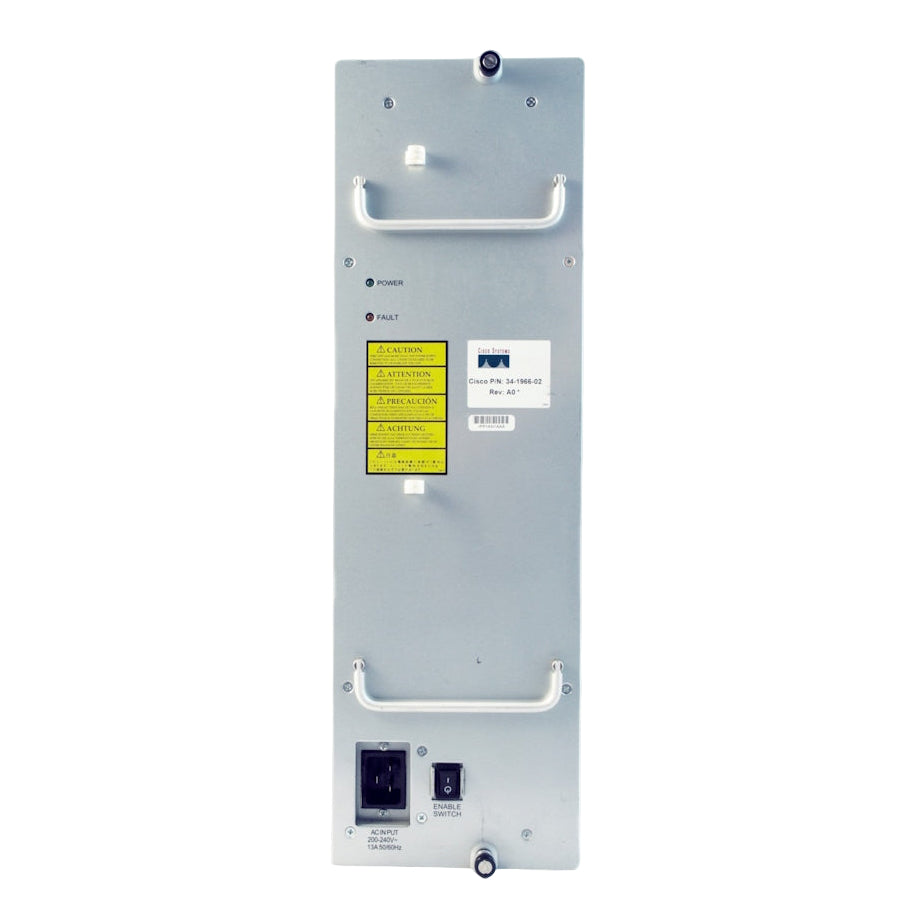

uBR10012 AC Power Supply, 2400W maximum power consumption

Cisco · UBR10-PWR-AC
1-Year Warranty
30-Day Returns
Essential Support

Please feel free to reach out to us with any questions.

hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204

Technical Specifications
Description Specifications
AC Power entry modules (PEM) 34-1966-02
100—120 VAC operation is not supported		 Part Number: UBR10-PWR-AC (Primary)
Part Number: UBR10-PWR-AC= (Spare)
Dimensions:
Height: 19.25 in. (48.89 cm)
Width: 6 in. (15.24 cm)
Depth: 5 in. (12.4 cm)
Weight: 14.7 lbs (6.65 kg)
AC input voltage rating: 200–240 VAC @ 50/60Hz
AC operating voltage rating: 180–255 VAC @ 50/60Hz
AC input power connections: 13 A
DC output voltage: 54 VDC maximum
DC output current: 45.3 A maximum
Power output: 2650W maximum
Temperature range:
Operating: 23 to 122 F (-5 to 50 C)
Storage: -13 to 158 F (-25 to 70 C)
