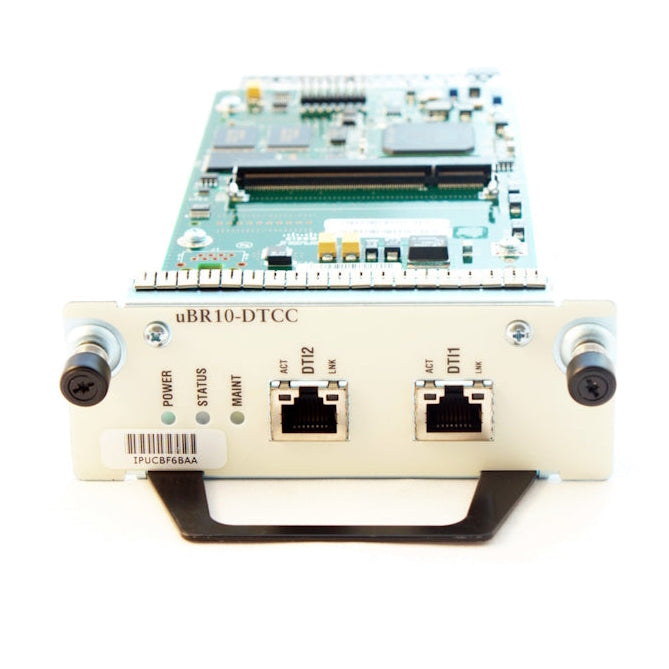

uBR10012 DOCSIS Timing & Control Card (DTCC)
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free to reach out to us with any questions.
hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204
On the Cisco uBR10012 universal broadband router, the DTCC card acts as a secondary processor that performs the following functions:
• In the default DTI mode, a 10.24 MHz clock and 32-bit DOCSIS timestamp are generated by the DTI Server, propagated to DTI client using DTI protocol, and distributed by DTI client to each cable interface line card.
• Allows software to independently power off any or all cable interface line cards.
• Drives the LCD panel used to display system configuration and status information.
• Monitors the supply power usage of the chassis.
• Two RJ-45 cables with the DTI server, which, in turn, can generate the clock using its own oscillator or external timing reference inputs such as GPS or network clock.
| Description | Specification |
|---|---|
| Power consumption | 12 Watts (40.94 BTU per hour) |
| Weight | 1.5 lb. (.68 kg) |
| Height | 4.73 in. (12.0142 cm) |
| Depth | 10 in. (25.4 cm) |
| Width | 1.548 in. (3.93192 cm) |
| MTBF | 431,348 hours |
UBR10-DTCC
