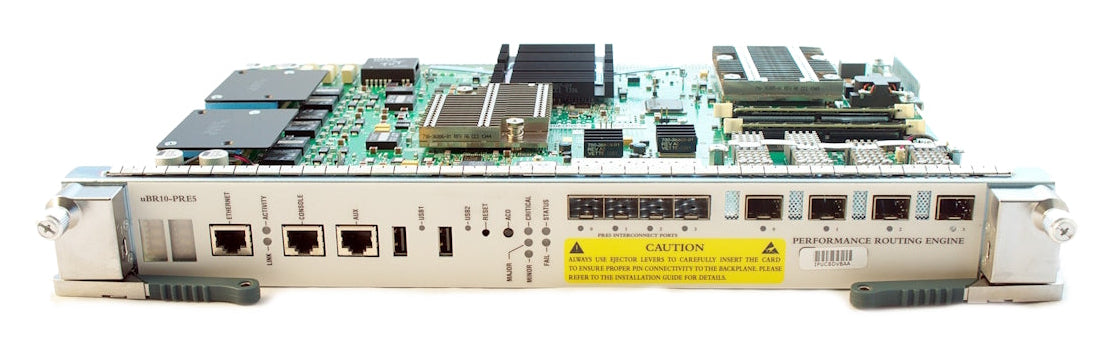

uBR10012 Performance Routing Engine 5
Cisco · UBR10-PRE5
1-Year Warranty
30-Day Returns
Essential Support
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free to reach out to us with any questions.
hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204
Description
Technical Specifications
The Cisco uBR10012 Performance Routing Engine 5 (UBR10-PRE5) is the next-generation high-performance route processor for the Cisco uBR10012 Universal Broadband Router. With the Cisco uBR10012 PRE5, the Cisco uBR10012 provides cable operators with an easy, flexible upgrade path toward a Converged Cable Access Platform (CCAP) and an all-IP infrastructure, while reducing the effect on operations, capital expenditure (CapEx) and rack space requirements.
| Software, Memory, and Performance | |
|---|---|
| Software compatibility | Compatible with Cisco IOS® Software Release 12.2(33)SCH2 and later Cisco IOS Software Release 12.2 images supported on the Cisco uBR10012 Router |
| Memory |
Route processor memory: 4 GB DDR3 SDRAM Onboard memory: 4 GB internal eUSB, 16 M NVRAM Removable memory: Up to 4 GB external USB disk Packet memory: 1 GB ECC protected |
| Performance | Parallel Express Forwarding (PXF) performance: Up to 10 mpps for both IPv4 and IPv6 under typical configuration |
| Features and functions |
Supports four 10 Gigabit Ethernet backhaul interfaces per Cisco uBR10012 PRE5 Supports eight 10 Gigabit Ethernet backhaul interfaces with redundant Cisco uBR10012 PRE5 setup (configured in WAN load sharing model) Supports up to 10 mpps IPv6 traffic forwarding |
| Reliability and availability |
Supports online insertion and removal (OIR) Supports nonstop forwarding (NSF) and stateful switchover (SSO) Supports In-Service Software Upgrades (ISSUs) |
| Connectivity and Management | |
| Connectivity and controls |
10, 100, and 1000 Mbps Ethernet port network management interface with RJ-45 connector Console serial port Auxiliary (modem) port Push-button reset |
| Network management |
Network management is provided through: Telnet (command-line interface [CLI]) Console port (through the CLI) Simple Network Management Protocol (SNMP) RFC 2665 |
| Line card compatibility |
uBR-MC20X20V uBR-MC3GX60V SPA-24XDS-SFP SPA-uBR10-DS-HD |
| Supported SFP |
SFP-10G-LR SFP-10G-LRM SFP-10G-SR SFP-10G-SR-X |
| Fan tray and power supply requirements |
UBR10-PWR-AC-PLUS UBR10-PWR-DC-PLUS UBR10012-FAN-PLUS |
| Physical and Environmental | |
| Physical dimensions | Dimensions (H x W x D): 16.0 x 1.91 x 10.65 in. (40.64 x 4.84 x 27.05 cm) Weight: 11.1 lb (5.05 kg) |
| Power | 248W |
| Environmental |
Storage temperature: -40 to 158°F (-40 to 70°C) Operating temperature, nominal: 41 to 104°F (5 to 40°C) Operating temperature, short term: 23 to 122°F (-5 to 50°C) Storage relative humidity: 5 to 95 percent relative humidity (RH) Operating humidity, nominal: 5 to 85 percent RH Operating humidity, short term: 5 to 90 percent RH Operating altitude: -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
