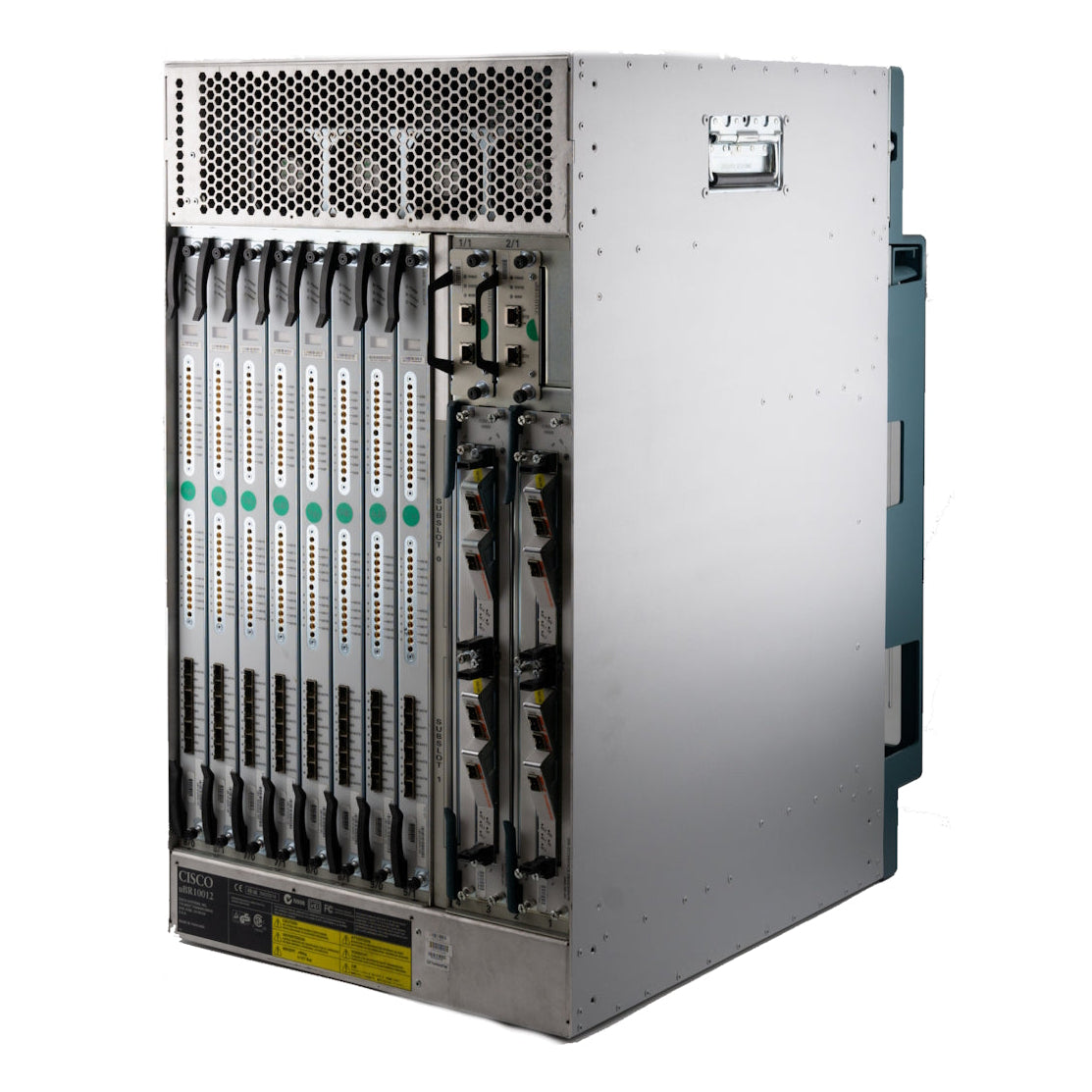

uBR10012 Universal Broadband Router Chassis
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
The Cisco® uBR10012 Universal Broadband Router is a communications-grade cable modem termination system (CMTS) that helps cable operators evolve their traditional cable infrastructures to an IP nextgeneration network with superior reliability, performance, scale, and density. The Cisco uBR10012 supports large-scale delivery of advanced, revenue-generating IP services for business and residential customers. The unique architecture of the Cisco uBR10012 brings unparalleled flexibility and intelligence to the cable network with consistent high performance and sophisticated routing capabilities.
The Cisco uBR10012 features these components:
● A maximum of eight RF line cards
● A maximum of six Wideband SPAs for Wideband channel bonding
● A maximum of two 4-SPA interface processors (SIPs), the carrier card for the Wideband SPAs
● A maximum of two WAN SPAs to connect to the IP backbone and external networks
● A maximum of two Cisco performance routing engine (PRE) modules
● Two Cisco Timing, Communication, and Control cards
● Two AC or DC power entry modules (PEMs) or two AC or DC 3300W power supplies
| Description | Specification |
|---|---|
| Chassis | 18 rack units with two chassis per 7-foot rack; fully configured chassis weight is 235 lb (106.6 kg); each chassis is 31.25 in. (79.4 cm) high, 17.2 in. (43.7 cm) wide, and 22.75 in. (57.8 cm) deep |
| Power |
DC input voltage of -48 to -60 VDC with 3000W maximum power consumption, 230 VAC option with 2400W maximum power consumption **Additional Powering Options:** 1. DC input voltage of -40.5 to -72 VDC with 3300W maximum power consumption 2. 230 VAC, 3300W maximum power consumption |
| Temperature | 41 to 104°F (5 to 40°C) operating and -40 to 158°F (-40 to 70°C) non-operating |
| Interfaces | Eight line card slots; four LAN/WAN interface slots; interfaces include Gigabit Ethernet and Wideband SPA |
| Compliance and emissions | UL/CSA 60950-1, IEC/EN 60950-1, AS/NZS 60950.1, CAN/CSA 22.2 No. 950-95, EN 300 386 |
| Regulatory | FCC 47CFR15, Class B, CISPR22 Class B, EN55022 Class B, AS/NZS CISPR 22 Class B, ICES-003 Class B, VCCI Class B, IEC/EN61000-3-2, IEC/EN61000-3-3, IEC/EN61000-4-2, IEC/EN61000-4-3, IEC/EN61000-4-4, IEC/EN61000-4-5, IEC/EN61000-4-6, IEC/EN61000-4-11, designed to meet GR-1089-CORE NEBS EMC and Safety, Issue#5, GR-63-CORE NEBS Physical Protection, Issue#3. |
| Software support | Cisco IOS Software Release 12.3(13)BC minimum to support PCMM, admission control, Advanced Mode DSG, and SII |
CHAS-UBR10012
