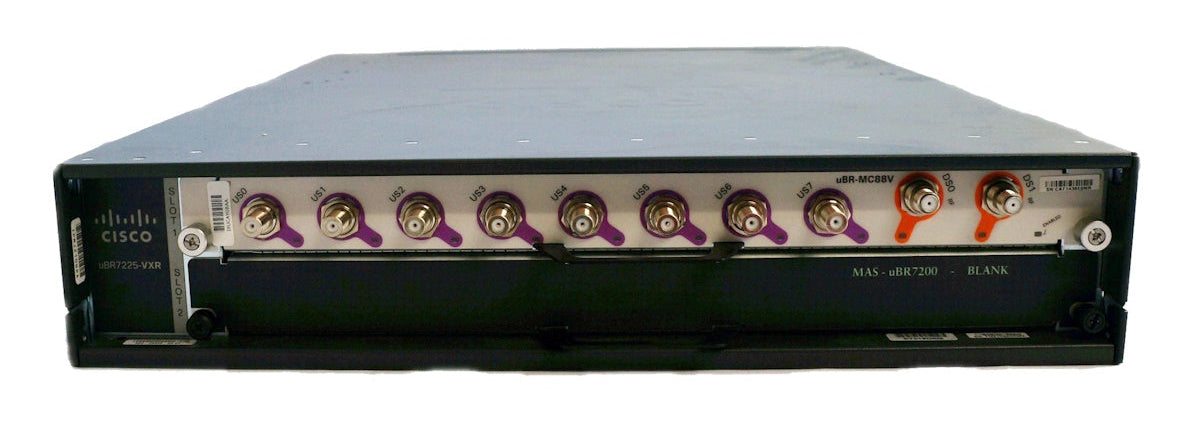

uBR7225VXR Universal Broadband Router Chassis
Couldn't load pickup availability
Certified Pre-Owned
Unused Pre-Owned
Please feel free reach out to us with any questions.
The Cisco uBR7225VXR Universal Broadband Router is a 2-rack-unit (RU) modular, inexpensive, mid-level entry CMTS suitable for cable operators that require a higher capacity platform than the Cisco uBR7100 Series, but not the larger form factor or capacity of the Cisco uBR7246VXR or Cisco uBR10012. The Cisco uBR7225VXR is based on open standards and brings the power and reliability of the Cisco uBR7246VXR within reach of all cable operators.
The Cisco uBR7225VXR delivers a feature-rich CMTS for emerging markets and Tier 2 and Tier 3 cable networks evolving to an IP Next-Generation Network infrastructure that supports the deployment of revenue-generating services. This product offers cable operators, multiunit businesses, and ISPs a superior and cost-effective platform for the delivery of high-speed data, voice, and video services. This new CMTS platform requires exceptionally low capital investment and minimal setup time, and it supports up to 5000 subscribers.
| System and Hardware Specifications | |
|---|---|
| Compact design suitable for rack-mount (2-RU) or desktop installation |
Dimensions of 3.5 x 17.32 x 21.8 in. (8.89 x 44.9 x 55.37 cm) (H x W x D) 45 lb (20.4 kg) Front, mid, and rear mountable in a 19 in. EIA standard rack Depth fully loaded from the tip of cable management bracket to the tip of the uBR-NPE-G2 handle is 26.1 in. (66.29 cm) |
| Line cards with integrated upconverters/modulators (cable plant interfaces) |
Modular design Line card supported: Cisco uBR-MC88V Broadband Processing Engine Physical: Occupies a single slot in the Cisco uBR7225VXR chassis Maximum 2 line cards per uBR7225VXR chassis Hot-swappable; no slot dependency Dimensions (H x W x D): 1.4 x 15.154 x 11.531 in (3.55 x 38.49 x 29.29 cm) Weight: 6.06 lbs (2.749 kg) Power consumption: 90 watts (307 BTUs per hour) at 25°C |
| Integrated upconverter specifications |
High-level output: +62 dBmV, 70MHz to 1GHz Optimized for 64 and 256 quadrature amplitude modulation (QAM) Software configurable from 52 to 62 dBmV output power in units of dBmV |
| Compatible Cisco Network Processing Engines (NPEs) |
The Cisco uBR7225VXR currently must contain one uBR7200-NPE-G2 processor that must have at least 1GB of DRAM. If it contains more than one BPE, Cisco recommends installing 2 GB of DRAM on the uBR7200-NPE-G2 to ensure best performance. FE/GE ports availability: 3 GE ports (uBR-NPE-G2) |
| Modulation |
Downstream: 64-QAM, 256-QAM Upstream: QPSK 8-, 16-, 32-, 64-QAM |
| Downstream frequency range |
DOCSIS: 6 MHz Annex B, 70MHz-1GHz Euro-DOCSIS: 8 MHz Annex A, 70MHz-1GHz |
| Upstream frequency range |
DOCSIS: 6 MHz Annex B, 5-42 MHz Euro-DOCSIS: 8 MHz Annex A, 5-65 MHz |
| Power, Physical, and Environmental | |
| Included AC power supply |
Single or dual redundant power supplies 100 to 240 VAC input, 50/60 Hz frequency 6.5 A maximum AC input current 540W (maximum) output AC-input cable: 18-QEG4 3-wire cable with 3-lead IEC-320 receptacle on power supply end and country-dependent plug on power source end |
| Operating temperature | 32 to 104°F (0 to 40°C) operating; -4 to 149°F (-20 to 65°C) nonoperating |
| Airflow | ~125 cfm (side to side cooling) |
| Humidity | 10% to 90% non-condensing |
| Safety approvals | UL/CSA/IEC/EN 60950-1 and AS/NZS 60950.1 |
| EMI/EMC regulatory and compliance |
Emissions: FCC 47CFR 15 Class A, ICES 003 Class A, CISPR22 Class A, EN55022 Class A, VCCI Class A, AS/NZS CISPR22 Class A, EN61000-3-3, EN61000-3-2. Immunity: EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, EN55024; EN50082-1/EN61000-6-1, EN 300386 |
CHAS-UBR7225VXR
