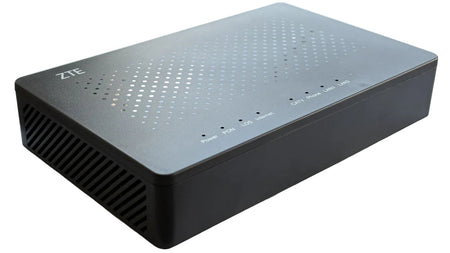

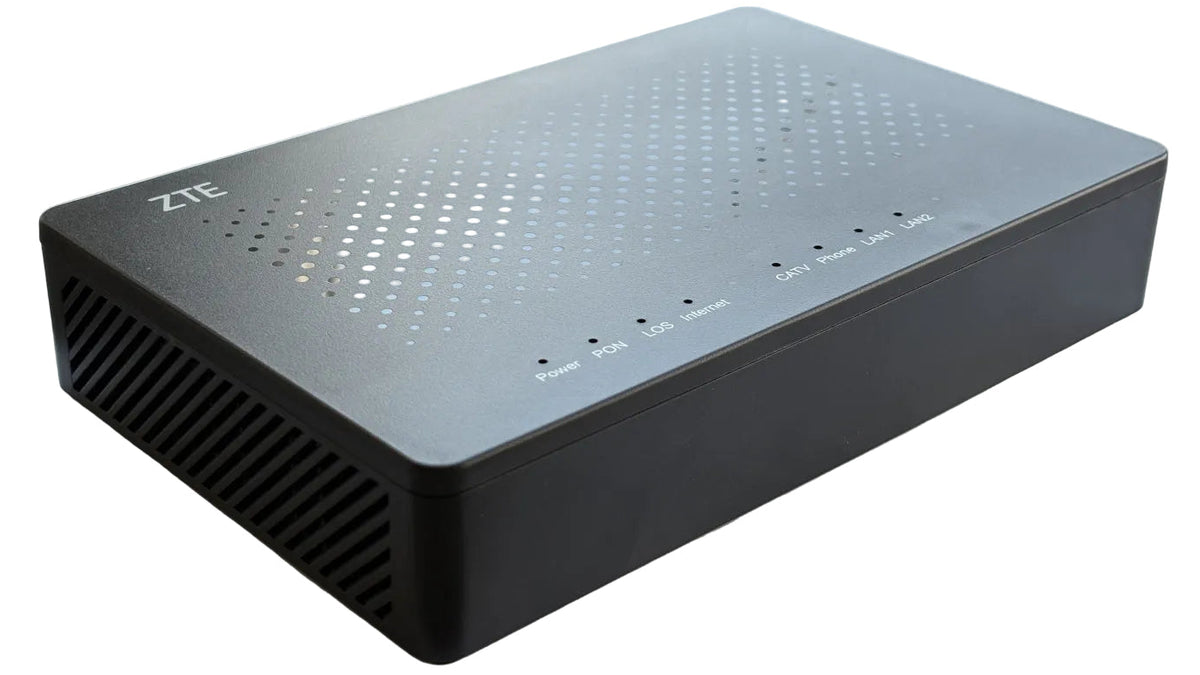

ZXHN F612C GPON ONT

ZTE · ZXHN F612C

Feature Highlights

GPON WAN Access
SC/APC Optical Port
2 x Gigabit Ethernet LAN
1 x FXS Phone
1 x CATV F-type RF
1-Year Warranty
30-Day Returns
Essential Support

Please feel free to reach out to us with any questions.

hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204

Description
Technical Specifications

The ZXHN F612C is a RF overlay Gigabit GPON ONT , which features two 10/100/1000Mbps auto-sensing LAN Port, one FXS Phone port and a RF interface in a stylish yet compact enclosure for indoor use. It provides service providers the flexibility to leverage RF headends when delivering advanced fiber access services to subscribers. It is ideal for FTTH or small business deployments in bridge mode where high-speed data must be transported reliably and also operates well in conjunction with separate RGW devices to provide flexible triple-play services.

Hardware
Interfaces • 1 GPON Optical interface
• 2 RJ-45 port for Gigabit Ethernet interface
• 1 FXS port for Phone
• 1 CATV interface
Buttons • Power On/OFF
• Reset
LEDs • Power, PON, LOS, Internet, CATV, Phone, LAN1, LAN2
CATV • F-Type connector
• RF output level of <17 dBmV
• RF Passband: 47 MHz~870 MHz
• Switched on/off by remote control
Software
QoS • Flexible packet classification
• Up to eight queues
• SP/WRR/SP+WRR
• Ingress rate limit
• Egress shaping
Security • Traffic filtering based on UNI port, VLAN ID, 802.1p, UNI+802.1p or VLAN+802.1p
• DoS attack defending
• Multiple VPN (IPSec, PPTP) passthrough
• MAC address filtering
• Broadcast/Unicast/Multicast attack protection
• Broadcast packet rate limit
• Dual image for firmware auto rollback
Management • OMCI management
• WEB GUI management
• Local built-in diagnostic function
• Logs and statistics
• Remote upgrade by HTTP
Others
Electrical Characteristics • Power input: 12V DC
• Power consumption: less than 6W
Environmental Characteristics • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
• Humidity: 5% ~ 95% (non-condensing)
Certification • CE certification
