ZXHN F680 Dual Band Concurrent 11ac Advanced GPON Gateway

ZTE · ZXHN F680

Feature Highlights

GPON WAN Access
SC/APC Optical Port
Dual-Band WiFi 5 (AC)
1300 Mbps on 5Ghz 3x3 MIMO
450 Mbps on 2.4Ghz 3x3 MIMO
4 x Gigabit Ethernet LAN
2 x FXS Phone
1-Year Warranty
30-Day Returns
Essential Support

Please feel free to reach out to us with any questions.

hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204

Description
Technical Specifications

The F680 is a high-end home gateway in ZTE FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The F680 provides two POTS ports, four GE ports, one USB 2.0 port, one USB 3.0 port, and it supports 802.11b/g/n Wi-Fi @ 2.4G(3x3) and 802.11a/n/ac Wi-Fi @ 5G(3x3).

GPON • ITU-T G.984.x/G.988 GPON standards
• Class B+ optical module, Class 1 Laser
• 1.244Gbps burst mode upstream, 2.488Gbps downstream
• Upstream 1310nm, Downstream 1490nm
Wi-Fi • Frequency: 2.4 GHz, 5 GHz
• Wi-Fi EIRP: Max. 200 mW per band
• IEEE 802.11a/n/ac Wi-Fi @ 5 GHz (3×3)
• IEEE 802.11b/g/n Wi-Fi @ 2.4 GHz (3×3)
• WEP/WPA/WPA2 Security
• Up to four broadcast/hidden SSIDs
VoIP • SIP (RFC3261)
• Codec: G.711 (µ-law and A-law), G.723, G.729, G.722
• RTP/RTCP (RFC1890)
• Echo cancellation
• VAD/CNG
• DTMF
• T.38 FAX
• Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference
USB • DLNA DMS
• File/Printer sharing
• USB backup/Restore configuration
• 3G dongle
Networking • IPv4/IPv6 Dual Stack
• SNTP client
• NAT/ALG
• Static routing/Dynamic routing
• PPPoE client/passthrough
• DNS client/relay
• DHCP client/server
• IGMP and MLD snooping/proxy
Security • Traffic filtering based on UNI port, VLAN ID, 802.1p, UNI+802.1p or VLAN+802.1p
• DoS attack defending
• Multiple VPN (IPSec, PPTP) passthrough
• MAC address filtering
• Broadcast/Unicast/Multicast attack protection
• Broadcast packet rate limit
• Dual image for firmware auto-rollback
QoS • Flexible packet classification
• Up to eight queues
• SP/WRR/SP+WRR
• Ingress rate limit
• Egress shaping
• WMM (Wi-Fi Multi Media)
Management • TR-069 remote management
• OMCI management
• WEB GUI management
• Local built-in diagnostic function
• Logs and statistics
• Remote upgrade by HTTP

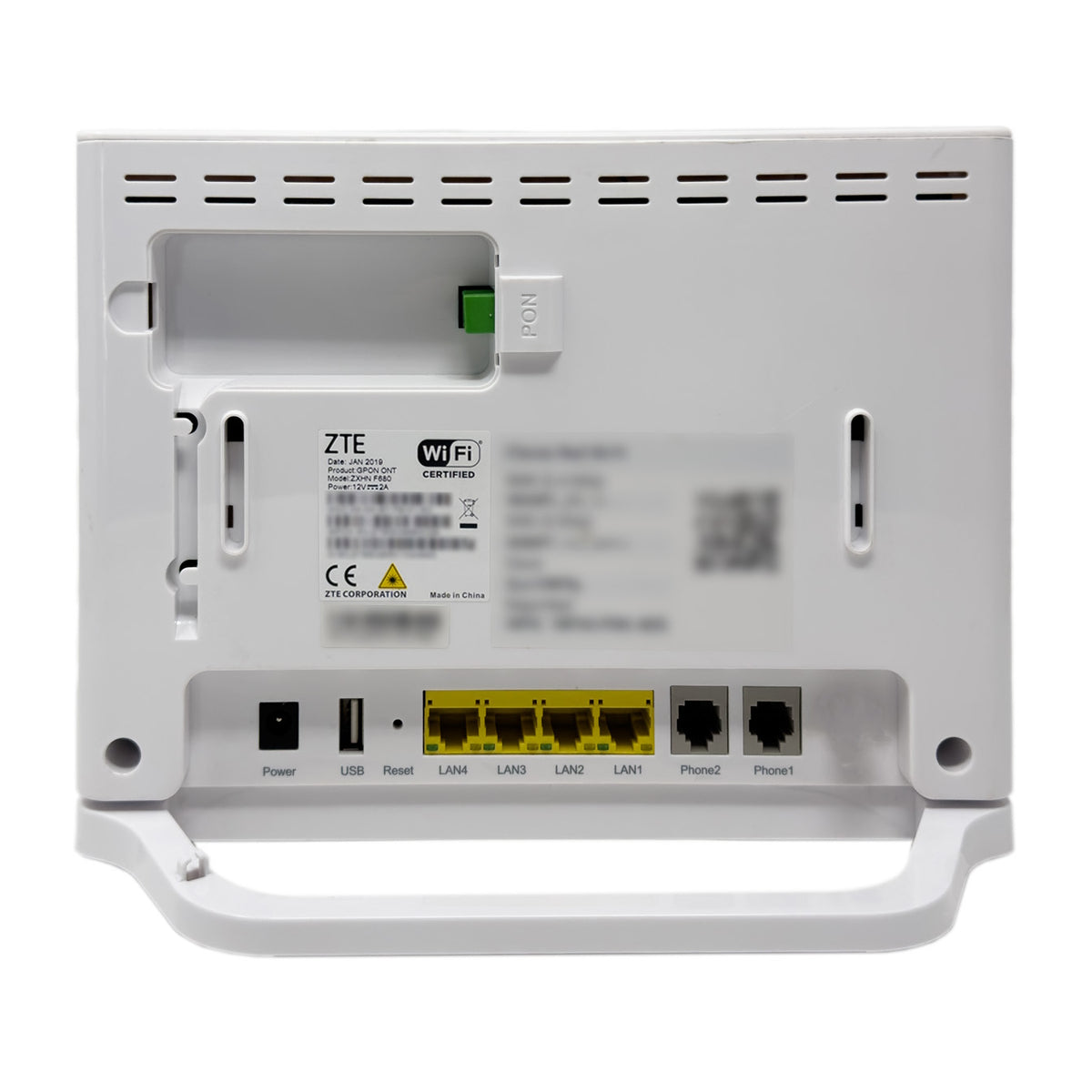

Hardware Characteristics • WAN: one SC/APC connector for GPON
• LAN: four RJ-45 ports for GE interface
• FXS: two RJ-11 ports for VoIP
• USB: one USB 2.0 host interface, one USB 3.0 host interface
• Wi-Fi: 802.11b/g/n (3×3), 11ac (3×3)
• BATTERY: one RJ-11 port for UPS monitor
• Buttons: WPS, Wi-Fi, Reset, Power ON/OFF

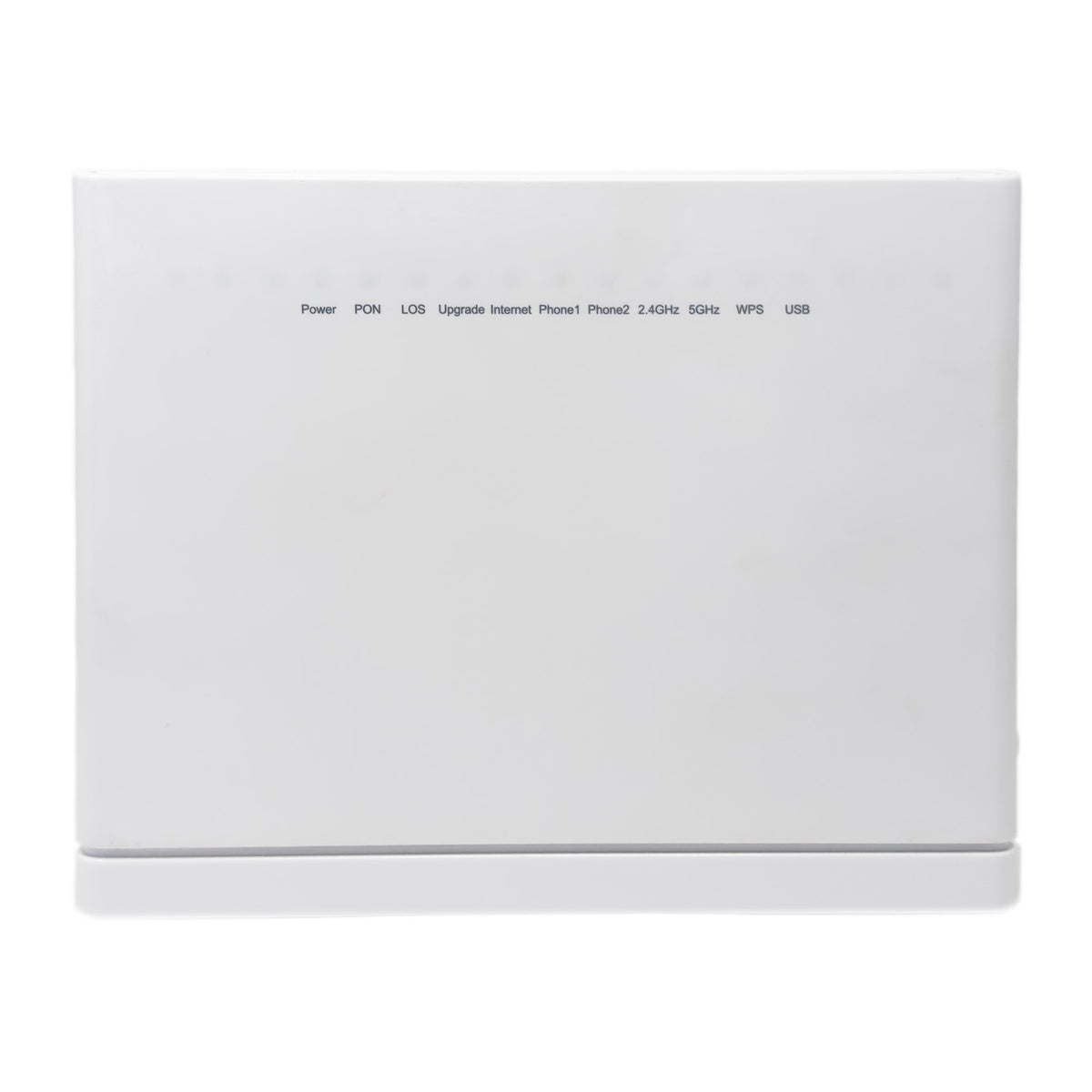

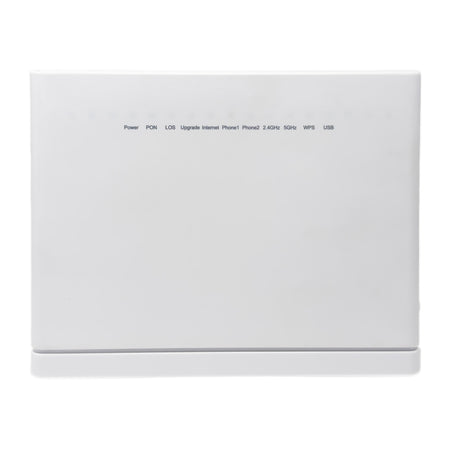

• LED Status indicators: Power, Alarm, PON, LOS, Internet, 2.4G, 5G, WPS, Phone1, Phone2, LAN1–LAN4, USB1, USB2, BBU
Electrical Characteristics • Power input: 12 V DC
• Power consumption: less than 13 W
Physical Characteristics • Net weight: about 600 g
• Dimensions (W×D×H): 220×35×155 mm
Environmental Characteristics • Operating Temperature: 0 °C ~ 40 °C (32 °F ~ 104 °F)
• Humidity: 5% ~ 95% (non-condensing)
