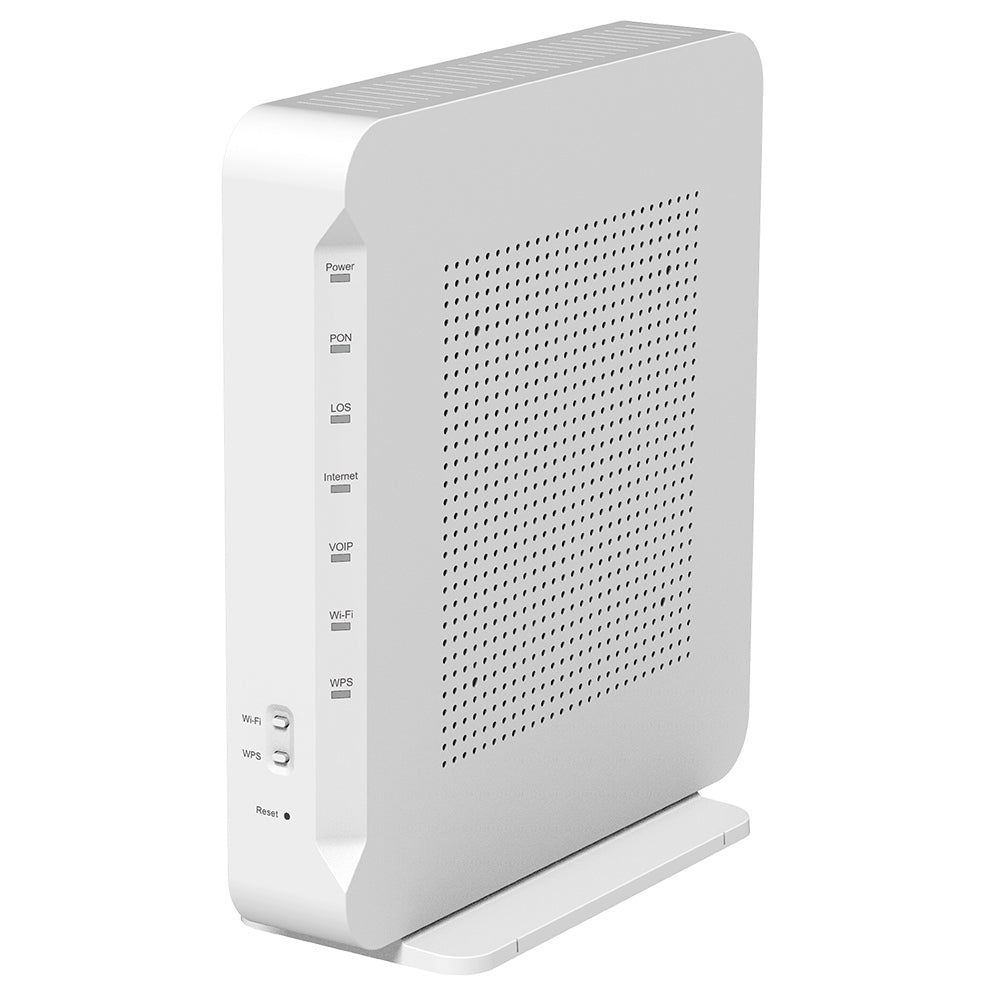

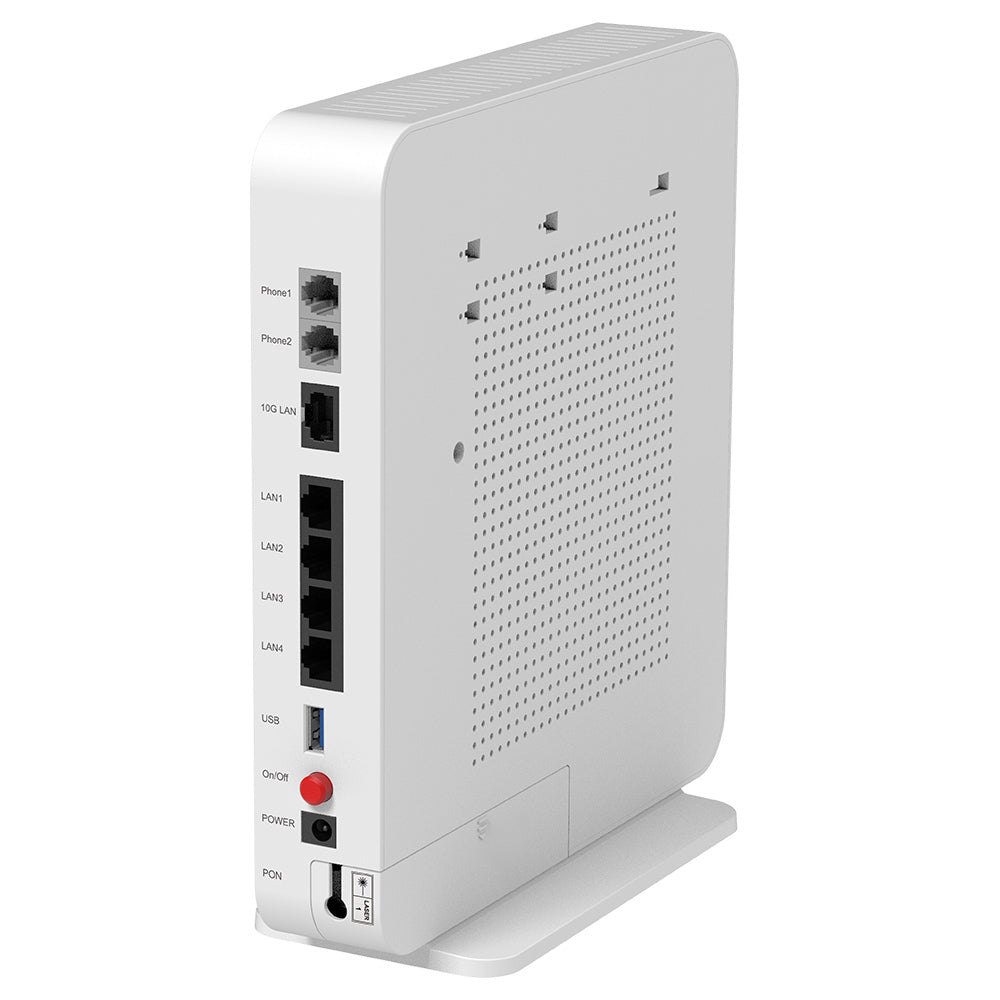

ZXHN F8648P AX6000 Dual-band XGS-PON Gateway

Name: ZXHN F8648P AX6000 Dual-band XGS-PON Gateway
Brand: ZTE
SKU: 58143708610908

ZTE · ZXHN F8648P

Feature Highlights

XGS-PON WAN Access
SC/APC Optical Port
Dual-Band WiFi 6 (AX)
4800 Mbps on 5Ghz 4x4 MU-MIMO
1148 Mbps on 2.4Ghz 4x4 MIMO
1 x 10Gigabit Ethernet LAN
4 x Gigabit Ethernet LAN
2 x FXS Phone

Surplus New

2031 In Stock

1-Year Warranty

30-Day Returns

Essential Support

Please feel free to reach out to us with any questions.

hello@optiwella.com / 🇪🇺 +36 62 808 073 / 🇺🇸 +1 (561) 408-7204

ZXHN F8648P is an AX6000 dual band Gigabit Premium triple-play XGS-PON gateway. It comes with one 10GE LAN port, four GE LAN ports, two phone ports, and dual band 4x4 Wi-Fi 6 with 160MHz@5GHz.

MU-MIMO and OFDMA technologies sharply improve efficiency of the Wi-Fi network. 160MHz ensures larger bandwidth for customer to better surf the internet, watch the video, and play online game with ultimate Wi-Fi experience.

10 Gigabit Your Way
• XGS-PON and 10GE LAN bring 10Gbps bandwidth experience.

More Flexible Management
• Complete OMCI complying with ITU-T G.988
• OMCI plus TR-069 complying with BBF TR-142 framework.

Ultimate Wi-Fi Experience
• DL/UL MU-MIMO, OFDMA and Beamforming bring better concurrency and higher efficiency.
• Dual band Wi-Fi 6 up to 6000Mbps, 160MHz@5GHz.
• Band steering, smart roaming optimize QoS.

Hardware Specifications

Interfaces	WAN	1xSC/APC connector for XGS-PON
	LAN	1x10GE+4xGE RJ-45 ports 2xFXS RJ-11 ports 1xUSB 3.0 port 4x4 802.11b/g/n/ax Wi-Fi @ 2.4GHz 4x4 802.11a/n/ac/ax Wi-Fi @ 5GHz(160MHz)
Buttons	Wi-Fi WPS Reset On/Off
LEDs	Power, PON, LOS, Internet, VOIP, Wi-Fi, WPS
Antenna	Internal antennas

Software Functions

Wi-Fi	160 MHz channel bandwidth@5G DL/UL MU-MIMO and OFDMA Manual/Auto radio channel selection Target-Wakeup Time Spatial Reuse Beamforming for 5GHz band WPA/WPA2/WPA3 Security Four broadcast/hidden SSIDs on each band
VoIP	SIP (RFC3261) compliant DTMF and pulse number receiving DTMF encryption algorithm (RFC2833) G.711 a/u law, G.729, and G.722 coding /encoding algorithm VAD and CNG T.30 fax, T.38 fax
Networking	IPv4/IPv6 dual-stack Port mapping/DMZ/Virtual server UPnP IGD with NAT traversal capability Static routing/dynamic routing Dynamic DNS relay DHCP client/server IGMP and MLD snooping/proxy
QoS	Flexible packet classification 802.1p and DSCP remarking Up to eight queues SP/DWRR/SP+DWRR Priority based queueing scheduling Wi-Fi Multimedia (WMM)
Security	Stateful Packet Inspection (SPI) firewall Denial of Service (DoS) protection Multiple VPN pass-through(L2TP/PPTP/IPSec) MAC/IP/URL filtering Service based access control
Management	TR-069/OMCI remote management Web GUI based management Local built-in diagnostic function Logs and statistics Remote upgrade by HTTP

Other Characteristics

Power Supply	AC adapter: 12V DC, 3A
Characteristics	Net weight: 1.1kg Dimensions(WDH): 230x215x40 mm
Environmental	Operating temperature: 0 °C~ 40°C(23°F ~ 113°F) Humidity: 5% ~ 95% (non-condensing)
Certification	CE Wi-Fi 6
